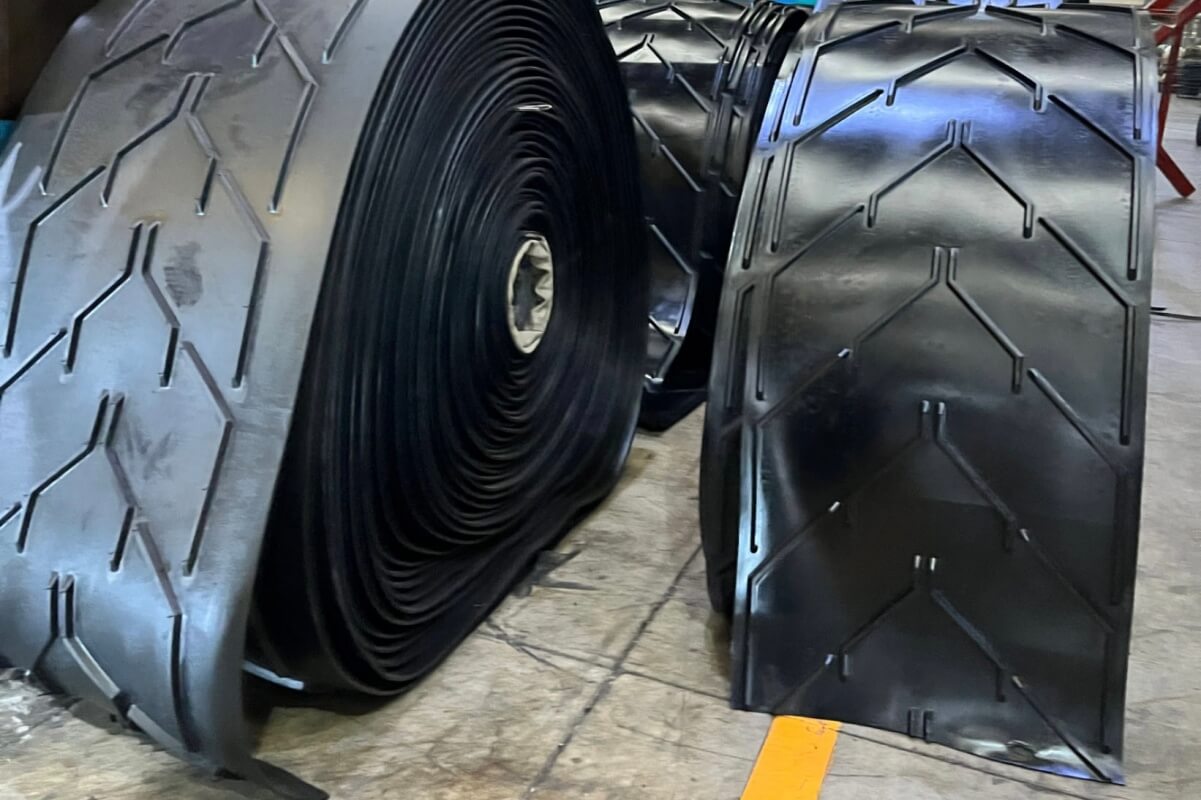

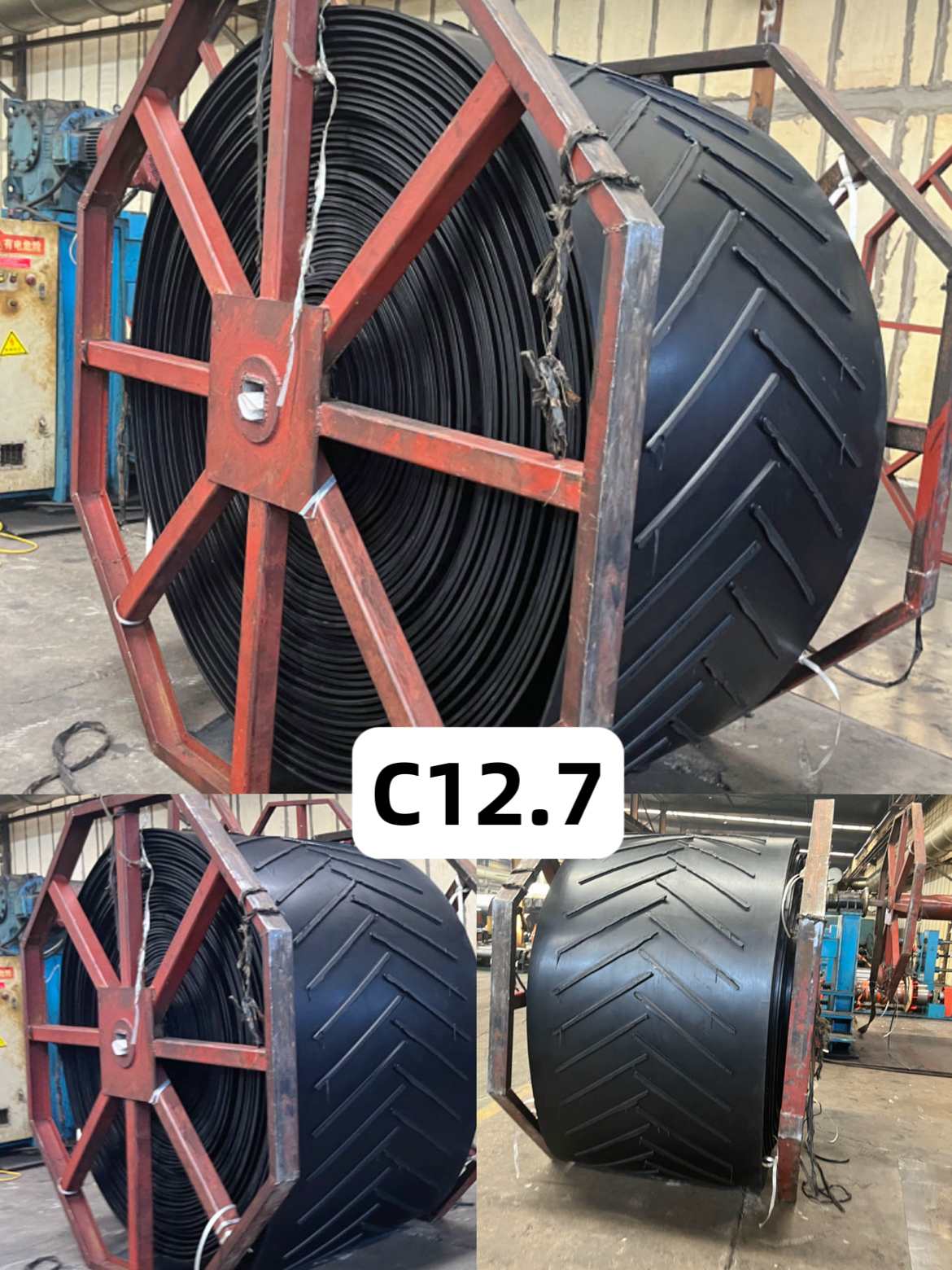

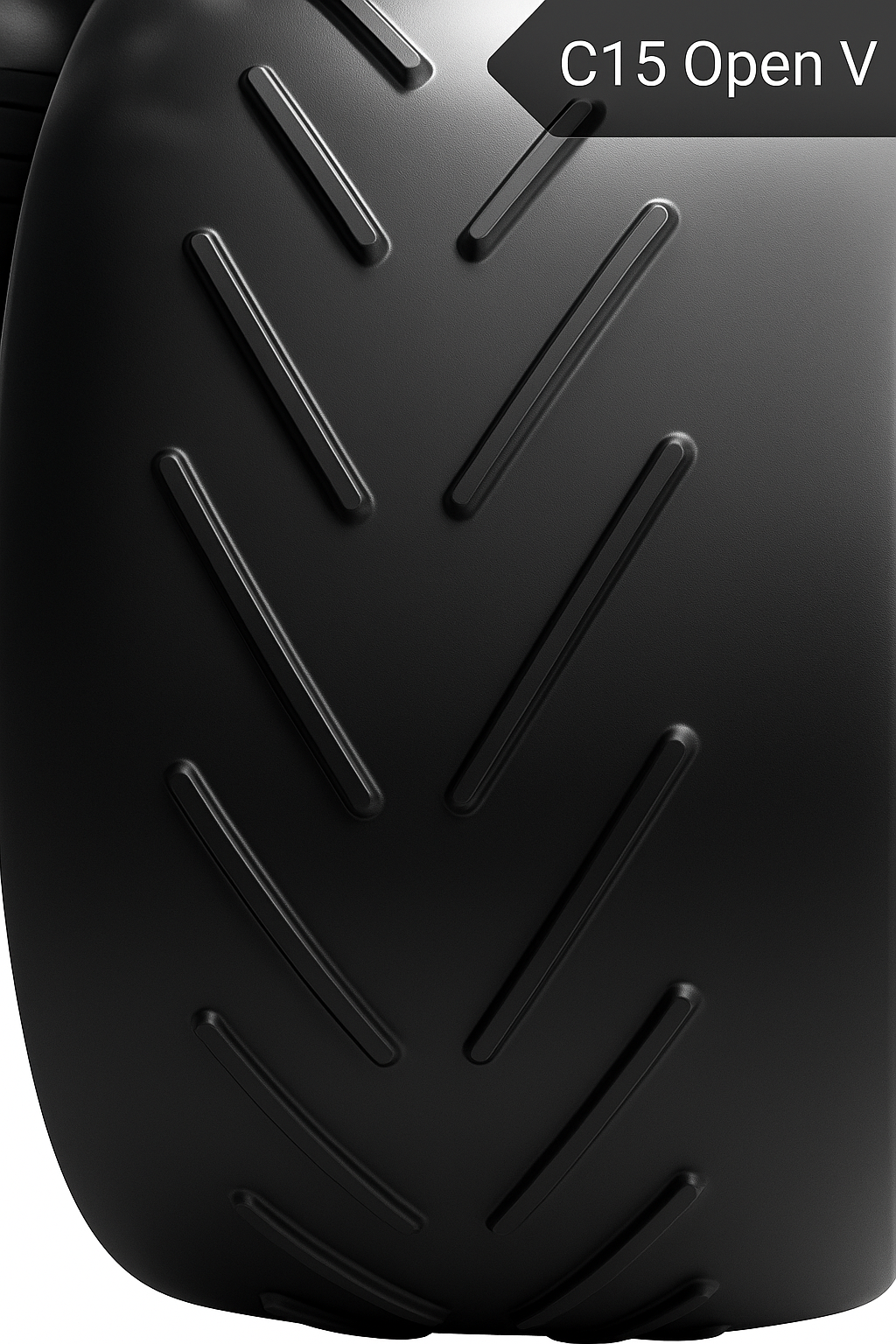

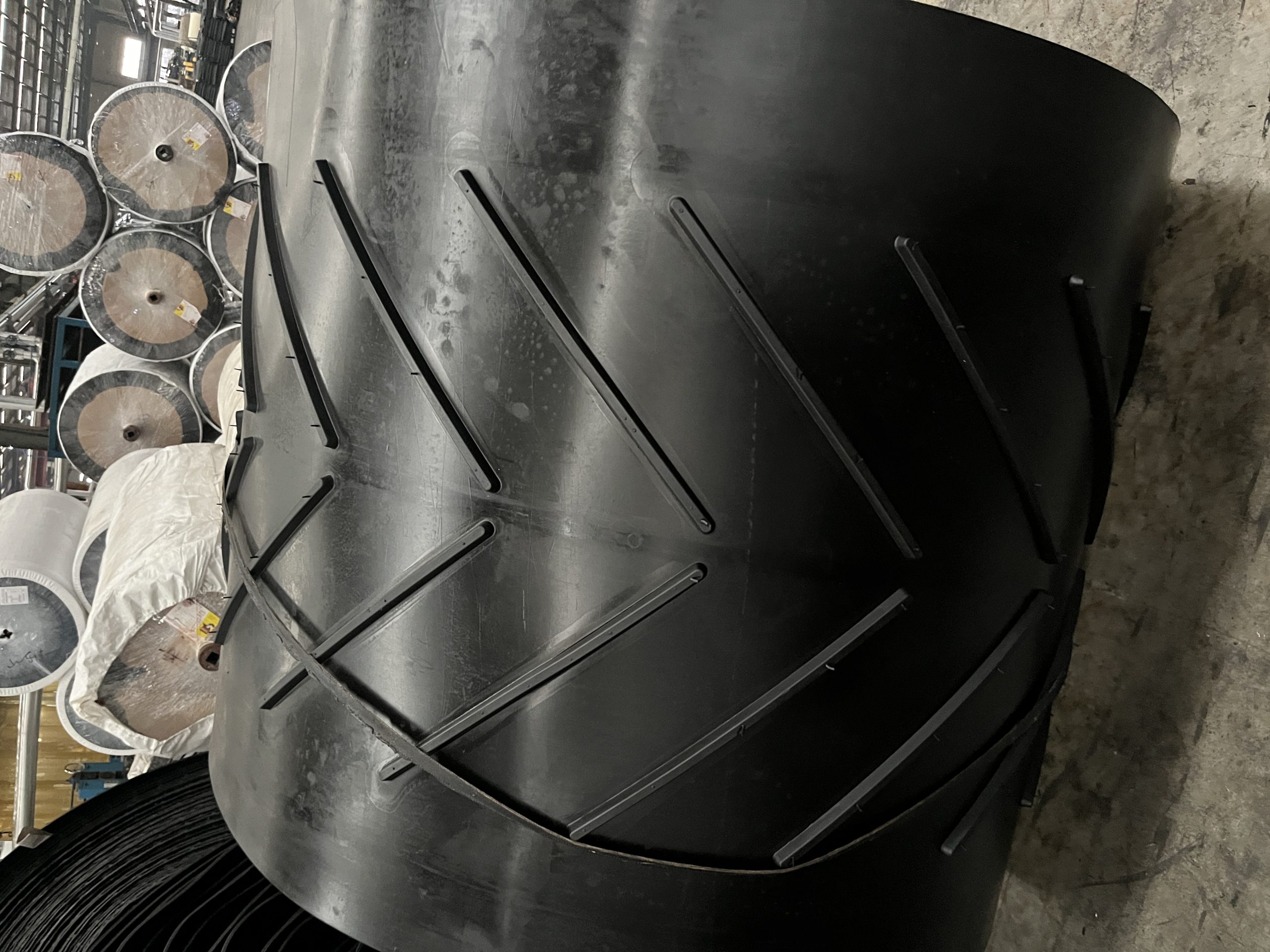

Chevron (Pattern) Conveyor Belt
More Than 72 Mold for your reference

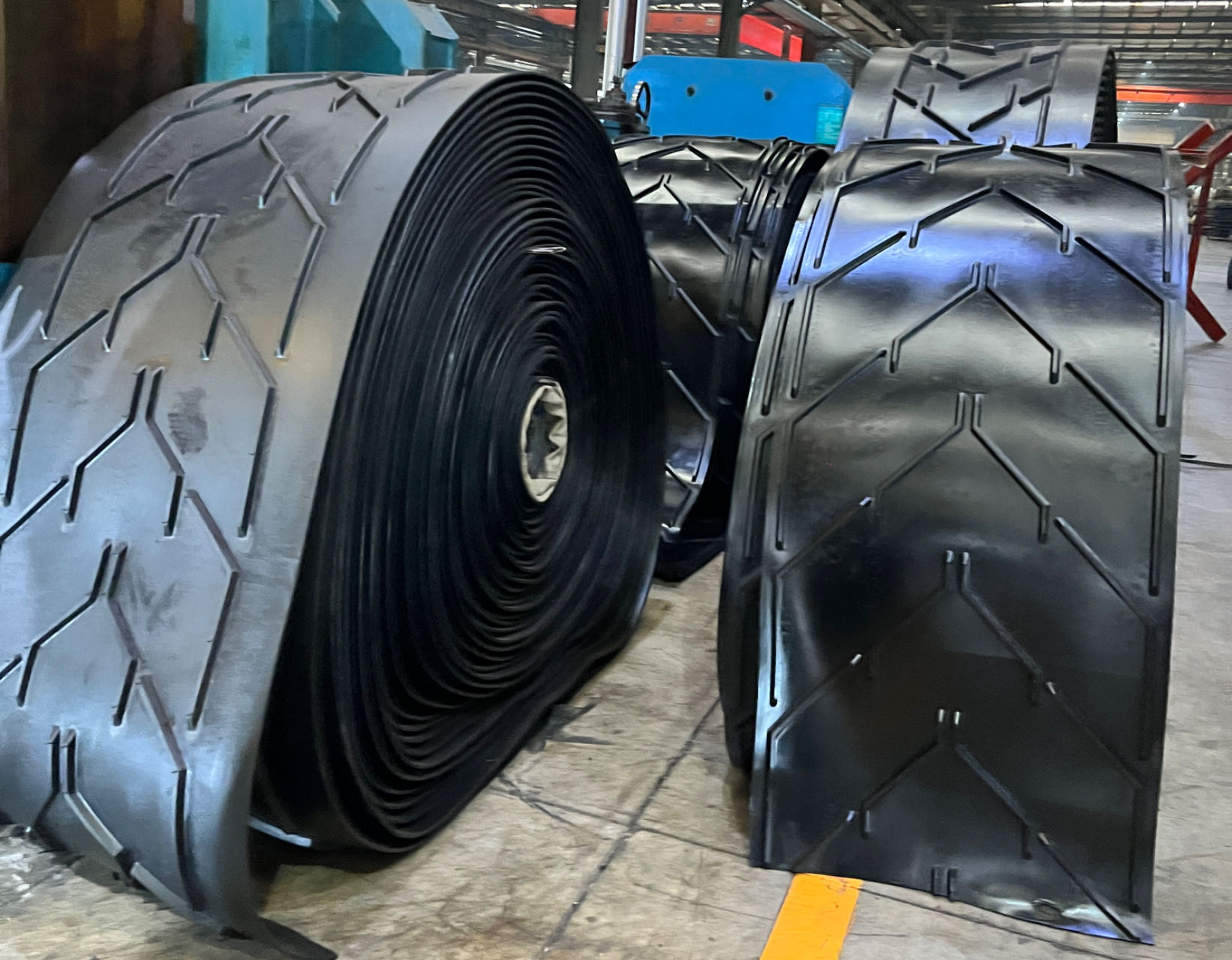

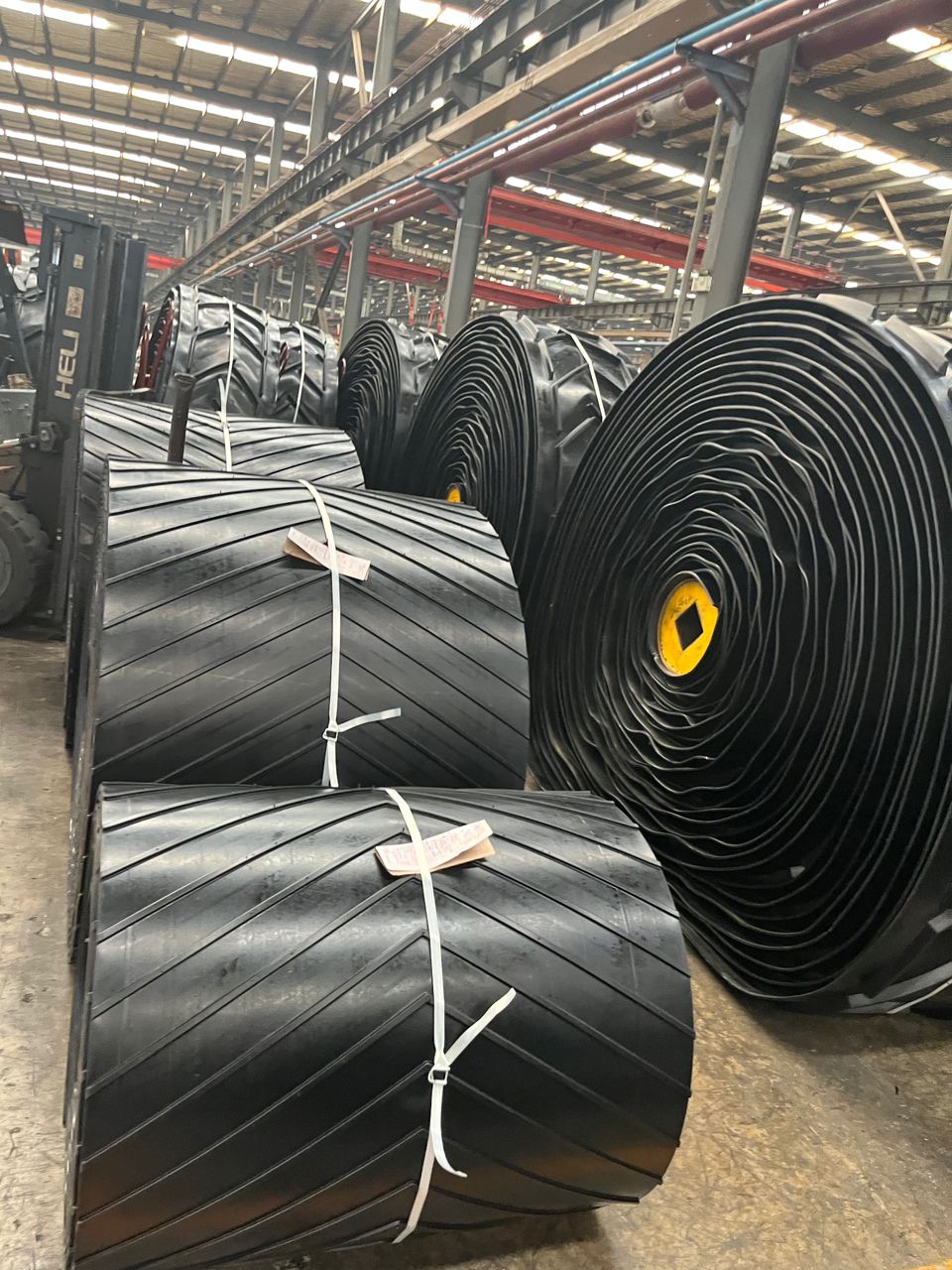

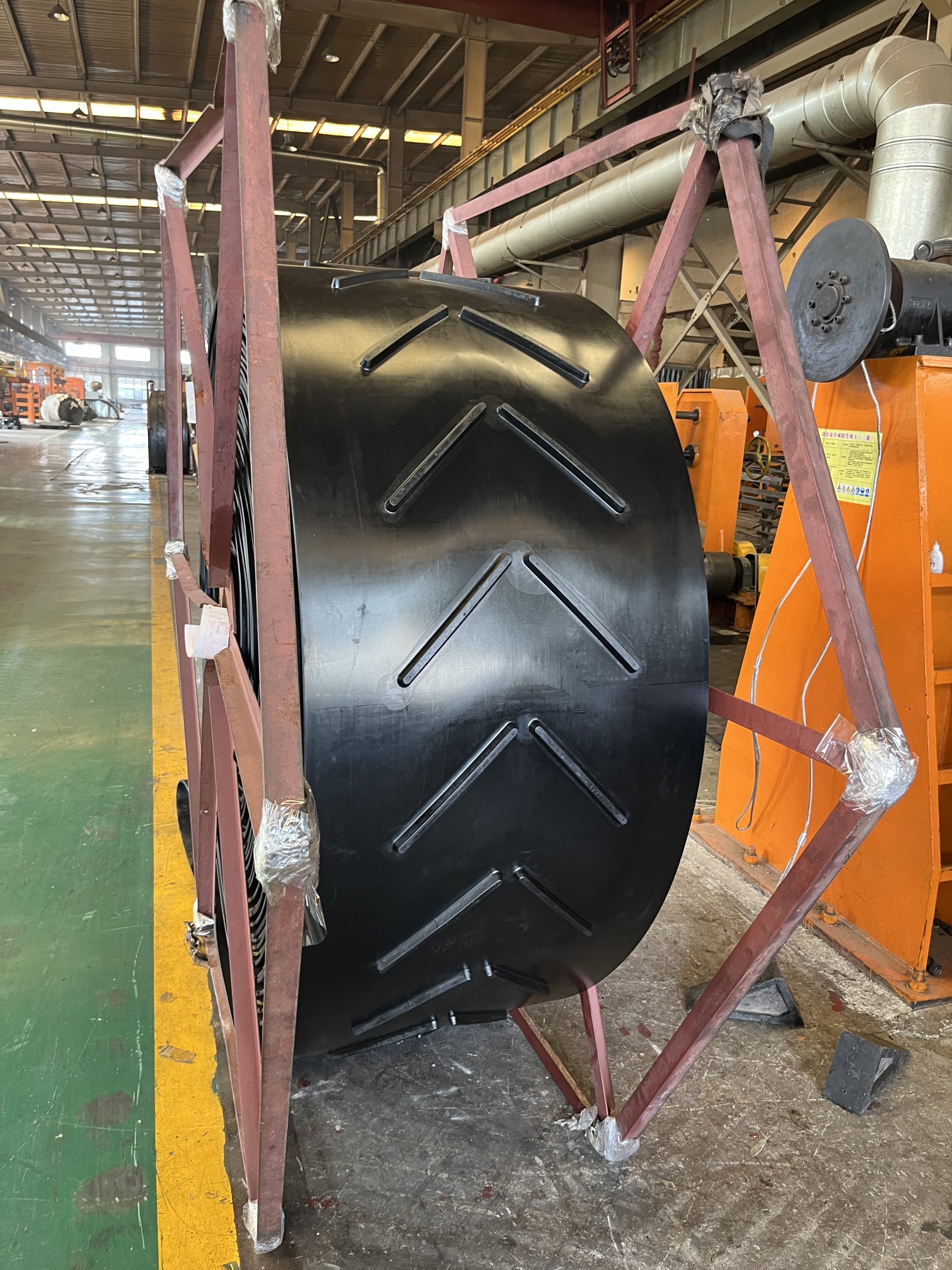

Why Choose Our Chevron Conveyor Belts

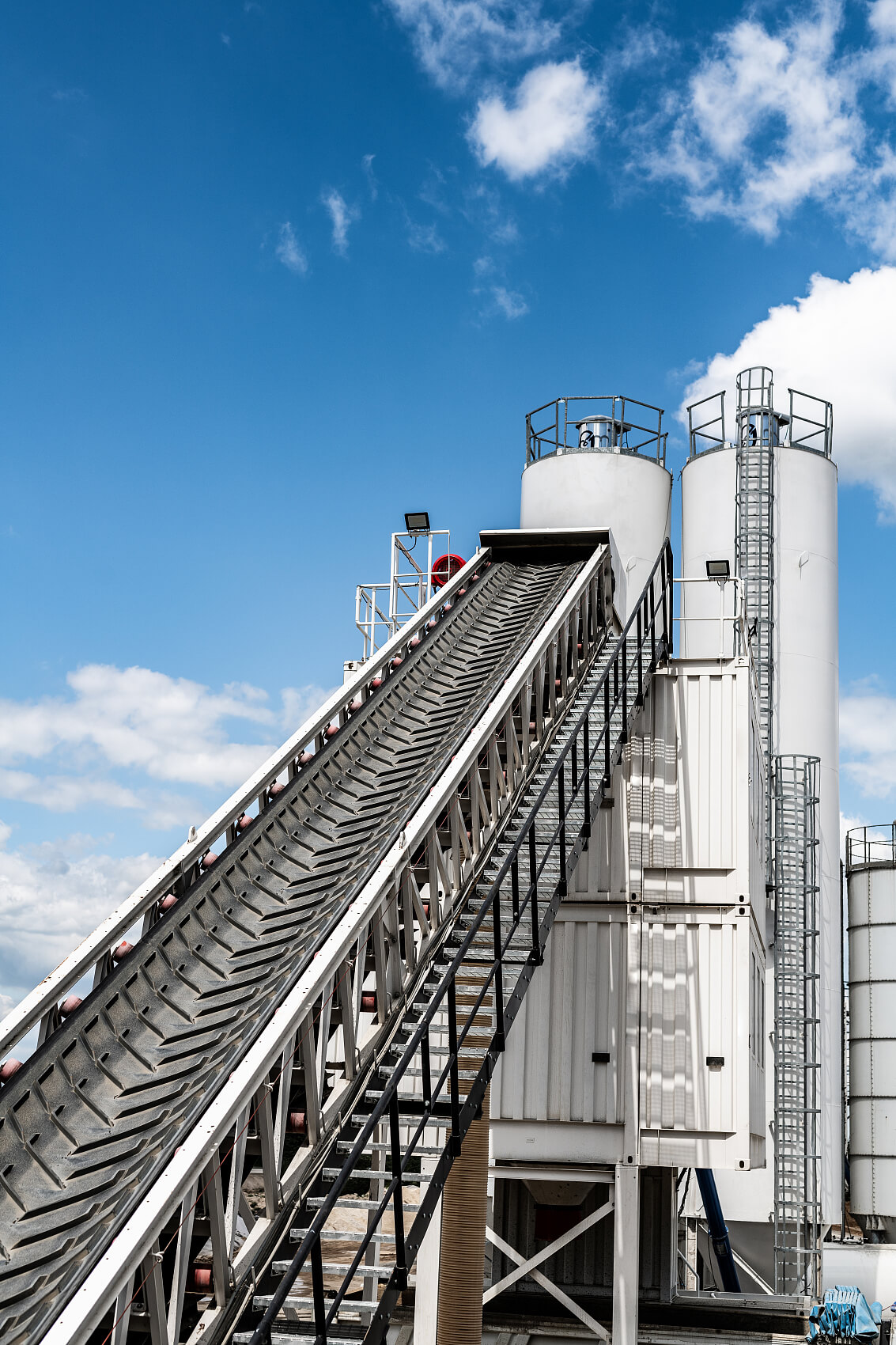

Steep Incline Performance
Custom Pattern Design
Superior Durability
Enhanced Traction
Versatile Applications
Reliable Operation
Chevron Conveyor Belt Technical Specifications
Chevron Height
5mm
| C.H(mm) | C.W(mm) | C.P(mm) | B.W(mm) |
|---|---|---|---|
| 5 | 300-1200 | 100 | 300-1200 |
| 5 | 465 | 154.5 | 500-800 |
| 5 | 665 | 154.5 | 700-750 |
| 5 | 765 | 154.5 | 800-900 |
| 5 | 965 | 154.5 | 1000-1200 |
Chevron Height
15mm
| C.H(mm) | C.W(mm) | C.P(mm) | B.W(mm) |
|---|---|---|---|
| 15 | 385 | 256 | 400-1200 |
| 15 | 380 | 250 | 400-1200 |
| 15 | 320 | 200 | 600-1200 |
| 15 | 420 | 200 | 600-1200 |
| 15 | 450 | 225 | 500-800 |
Chevron Height
17mm
| C.H(mm) | C.W(mm) | C.P(mm) | B.W(mm) |
|---|---|---|---|
| 17 | 300 | 330 | 400-1000 |
| 17 | 440 | 330 | 500-1000 |
| 17 | 550 | 330 | 600-1000 |
| 17 | 630 | 330 | 700-1000 |
| 17 | 750 | 330 | 850-1200 |

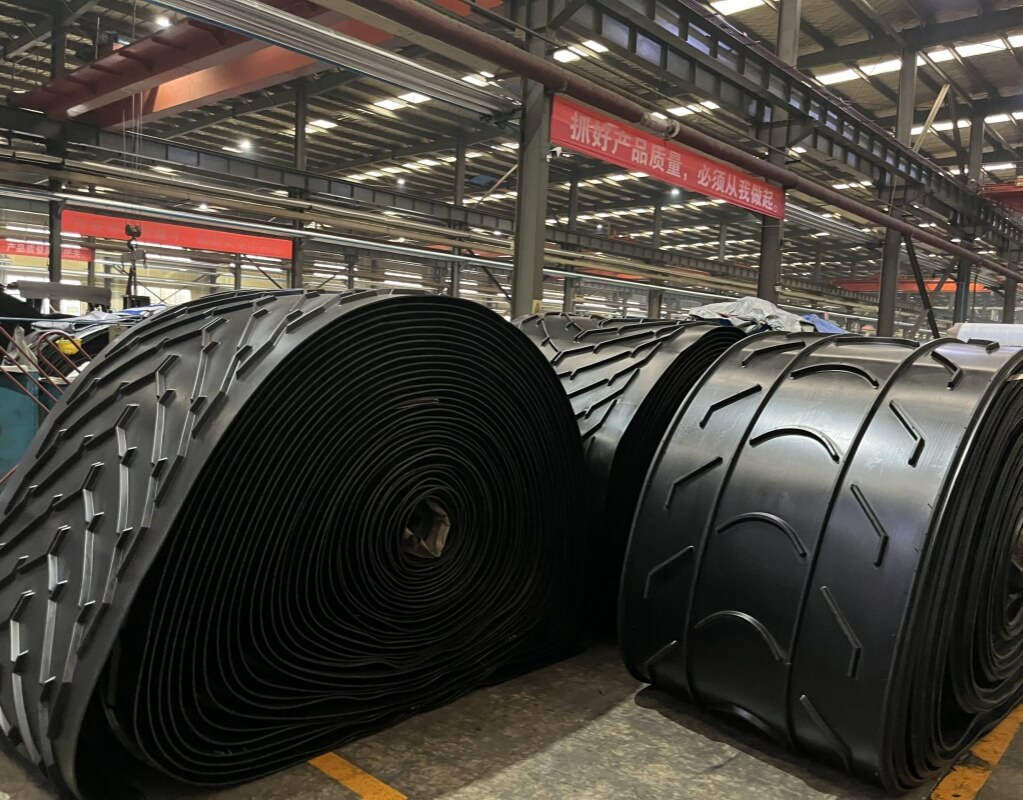

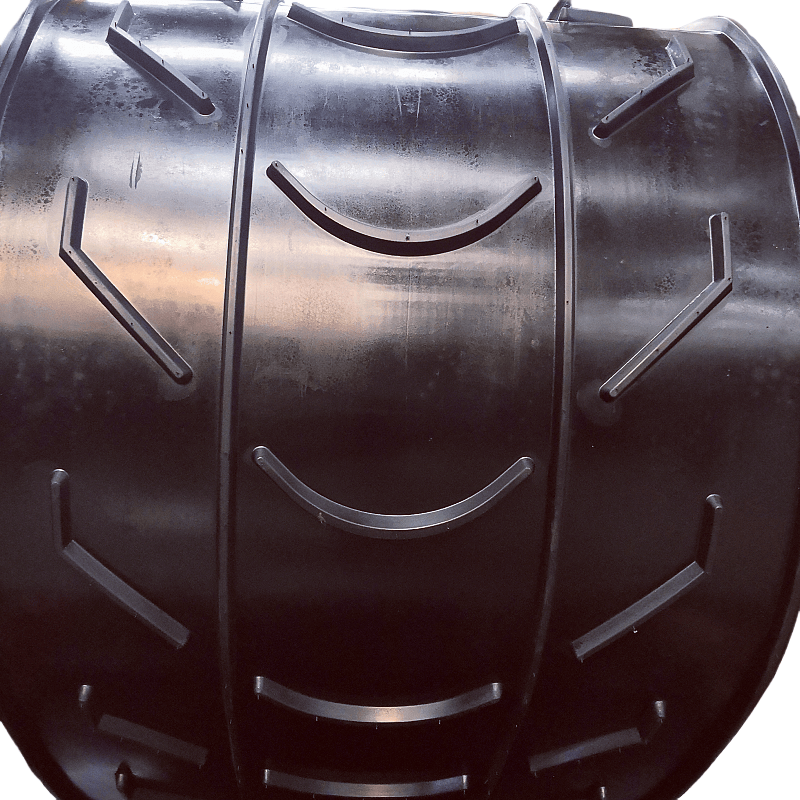

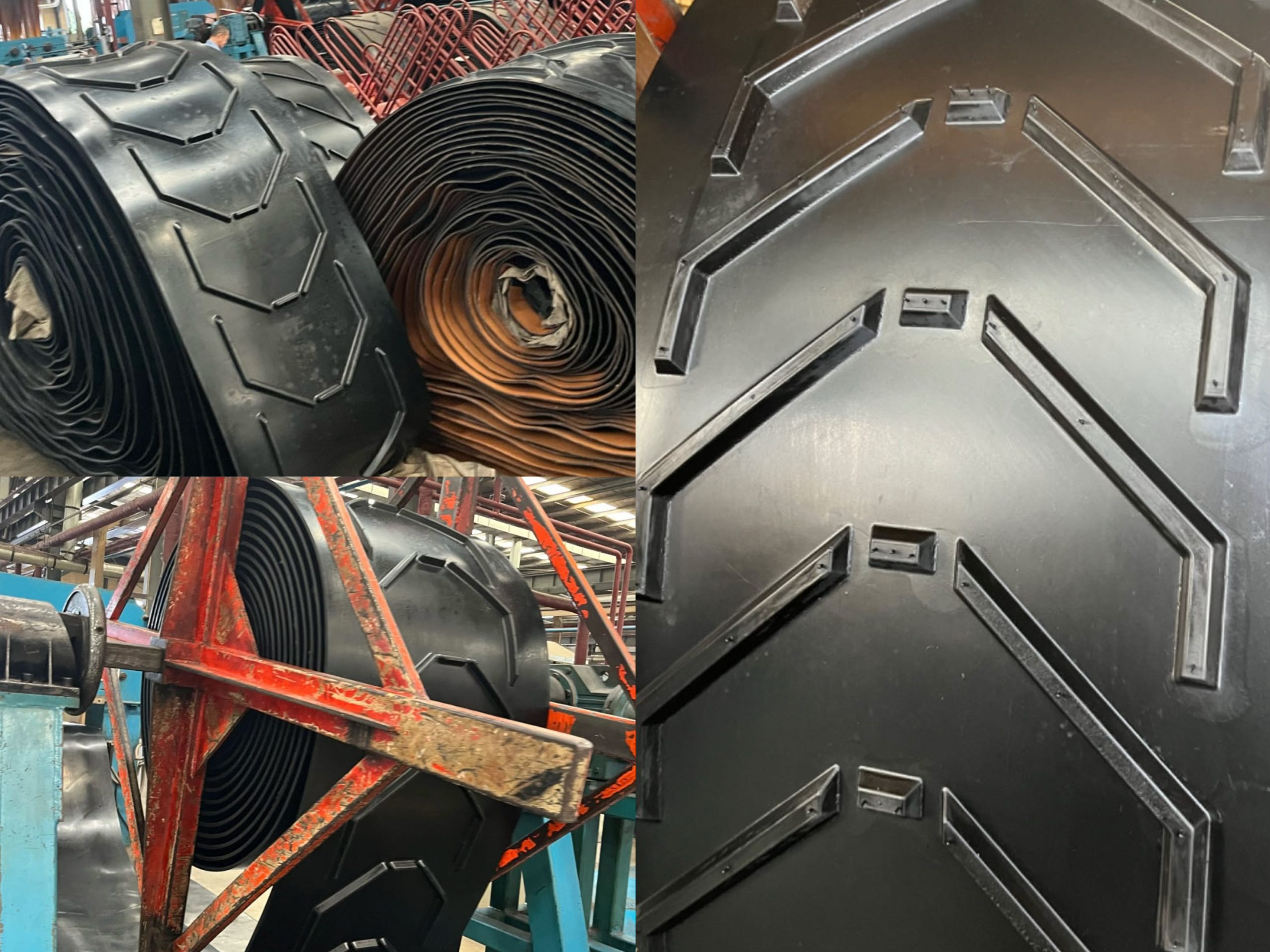

Chevron Height
25mm
| C.H(mm) | C.W(mm) | C.P(mm) | B.W(mm) |
|---|---|---|---|
| 25 | 1180 | 400 | 1200-1500 |
| 25 | 1365 | 400 | 1400-1500 |
| 25 | 1350 | 500 | 1400-1500 |
| 25 | 1365 | 500 | 1400-1500 |
| 25 | 1400 | 500 | 1400-1500 |

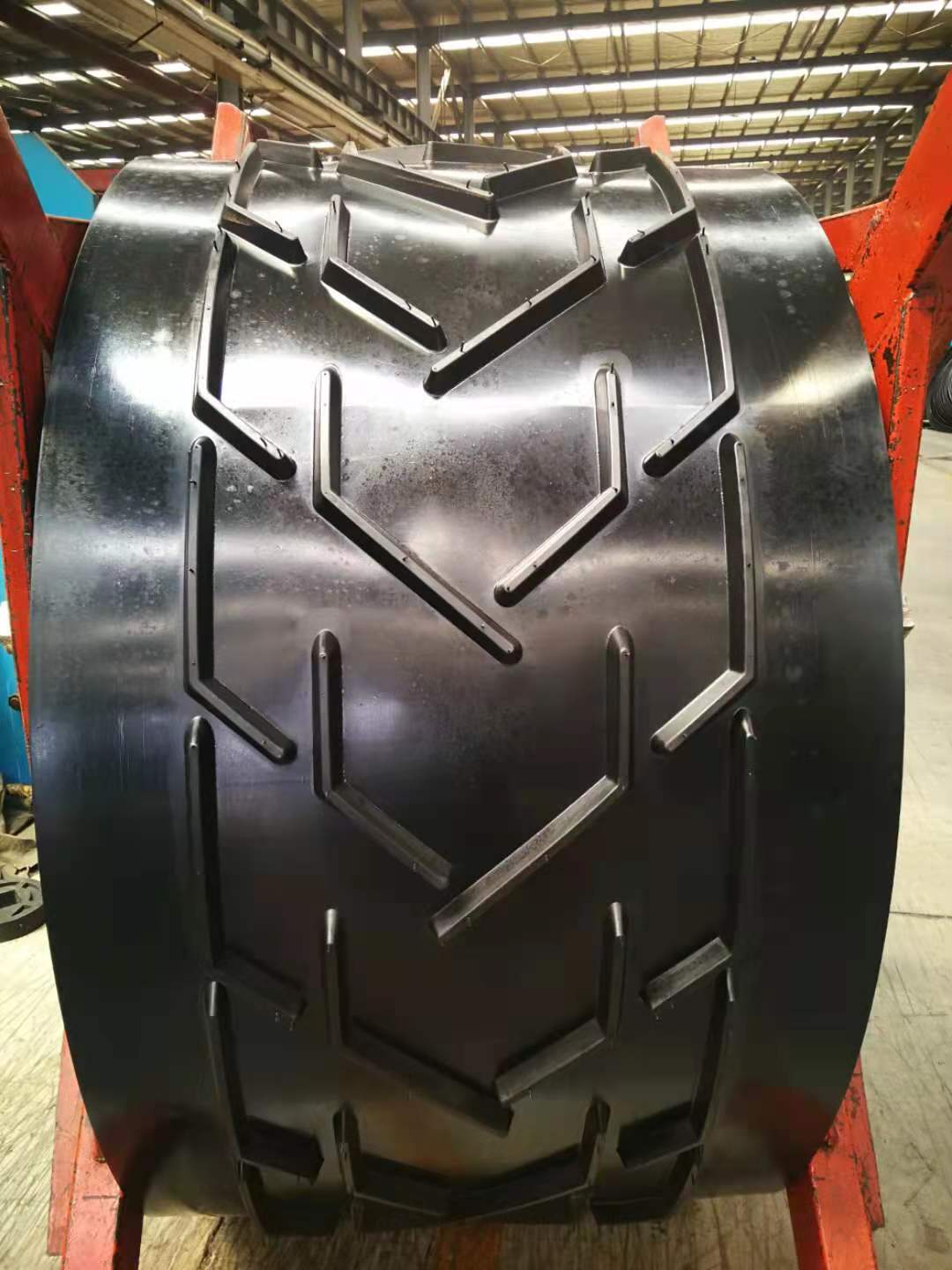

Chevron Height
32mm
| C.H(mm) | C.W(mm) | C.P(mm) | B.W(mm) |
|---|---|---|---|
| 32 | 580 | 330 | 700-1000 |
| 32 | 630 | 330 | 750-1000 |
| 32 | 750 | 330 | 850-1400 |
| 32 | 1000 | 330 | 1200-1450 |
| 32 | 460 | 330 | 550-1000 |
Chevron Height
Custom
| Custom Specifications Available | |||
|---|---|---|---|
| Tailored to Your Needs We can professionally customize chevron patterns, heights, and belt widths according to your specific application requirements. Our engineering team will work with you to design the optimal solution. |
Need help selecting the right specification for your application?

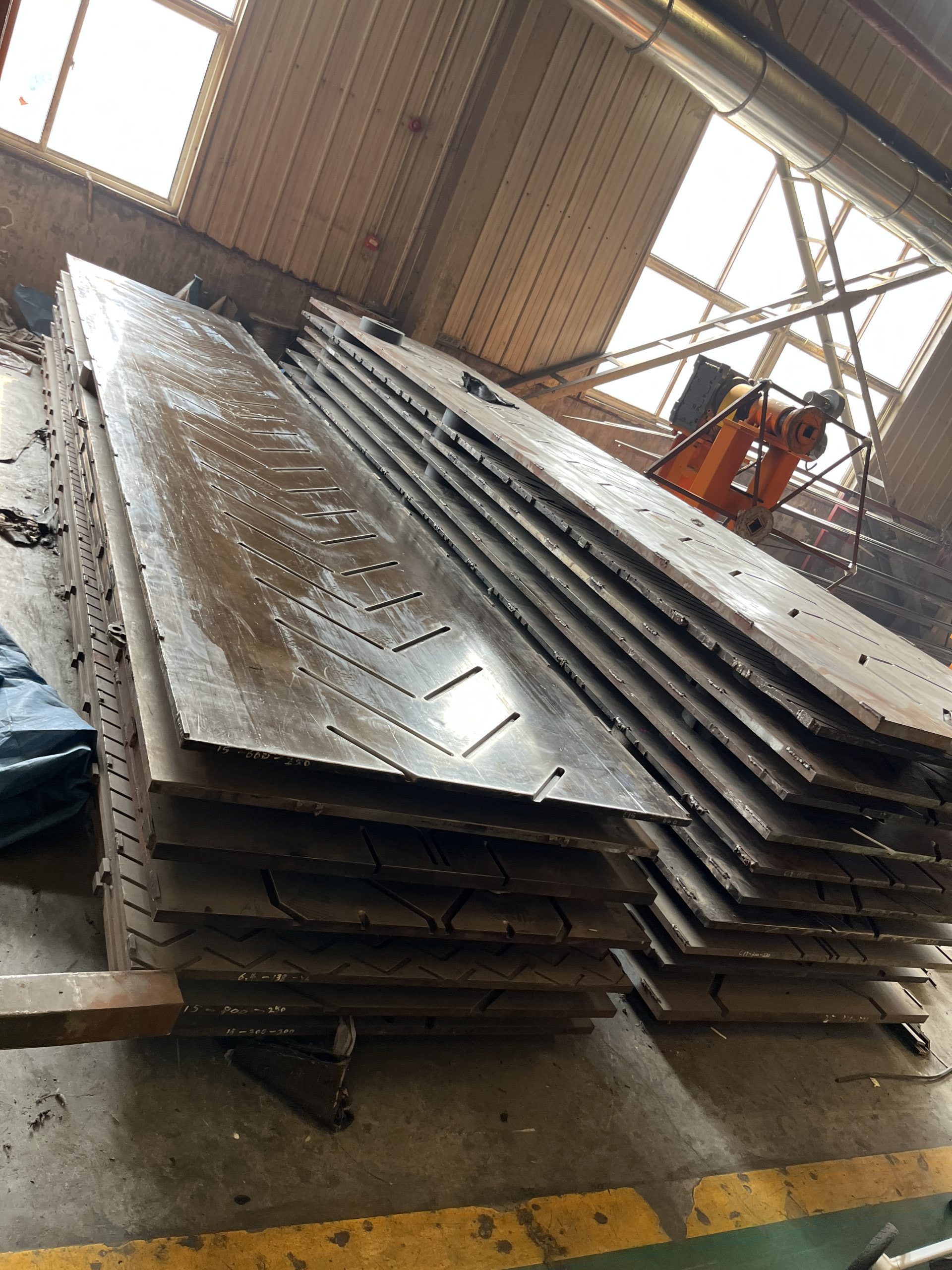

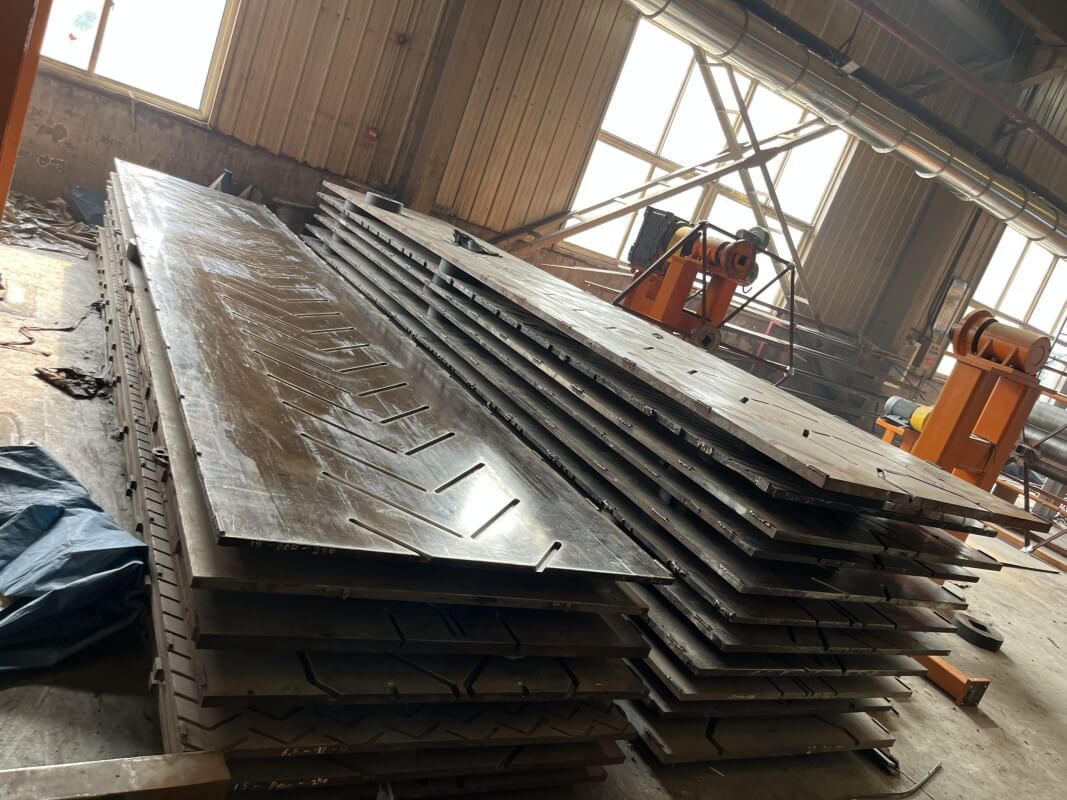

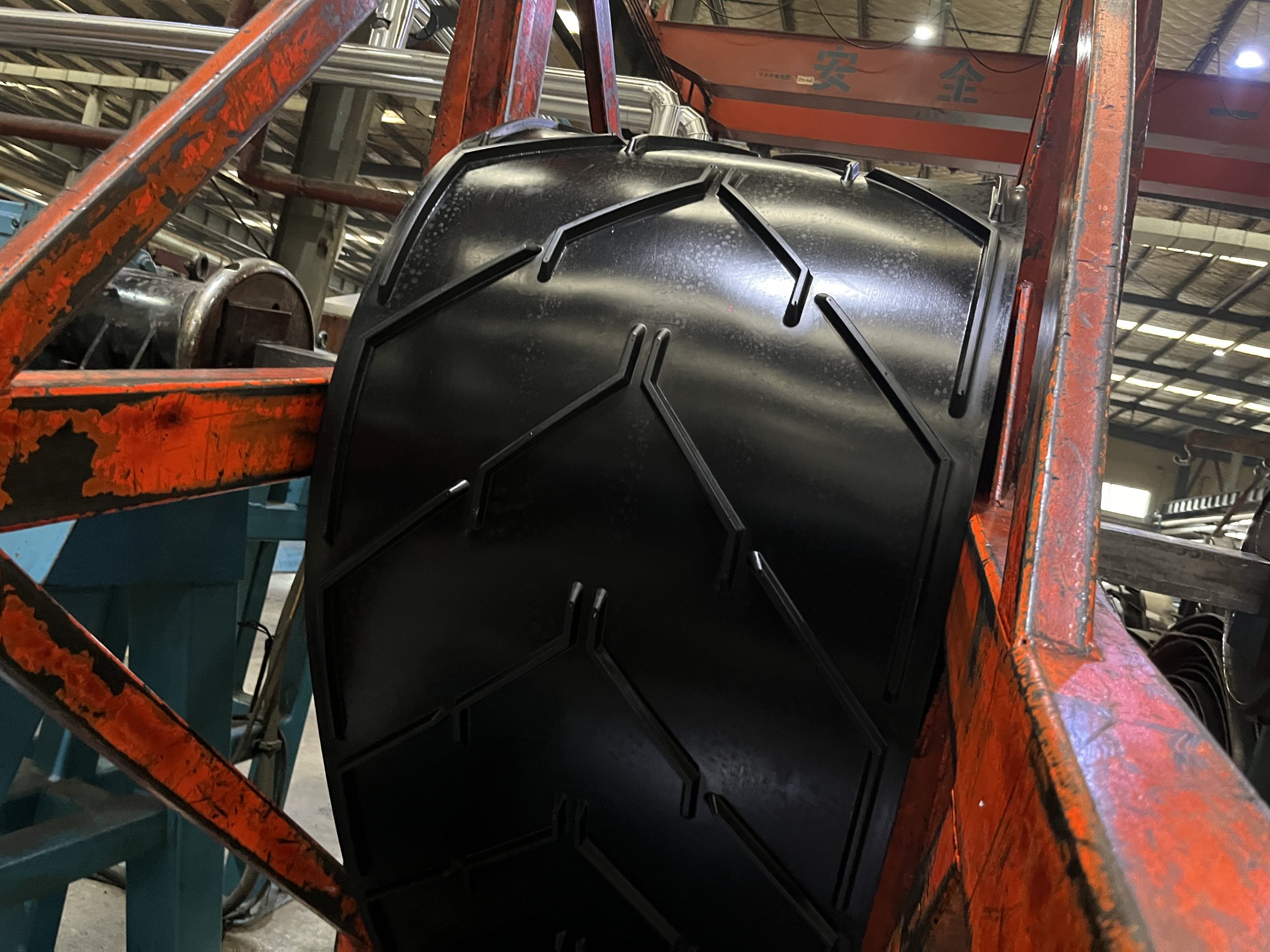

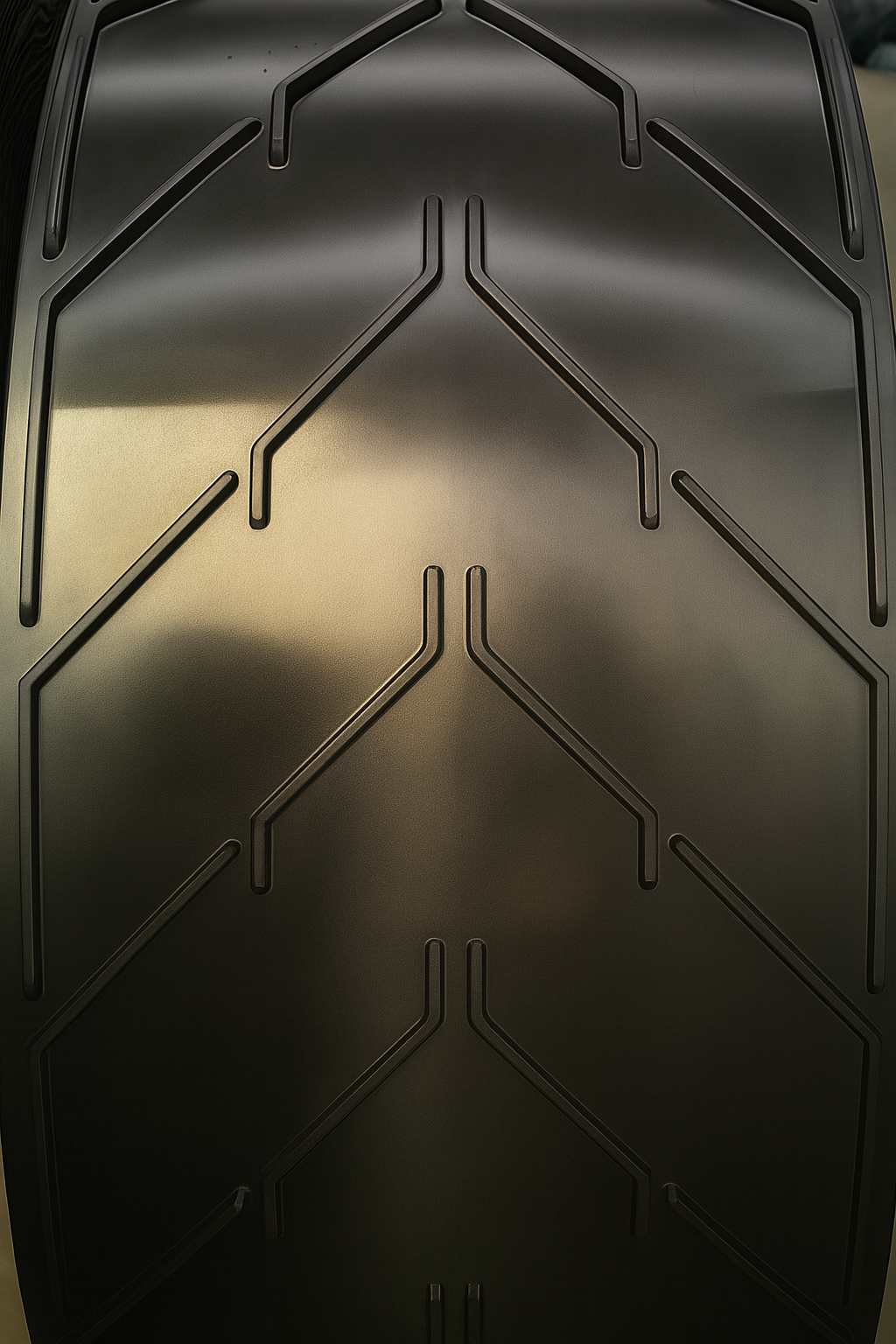

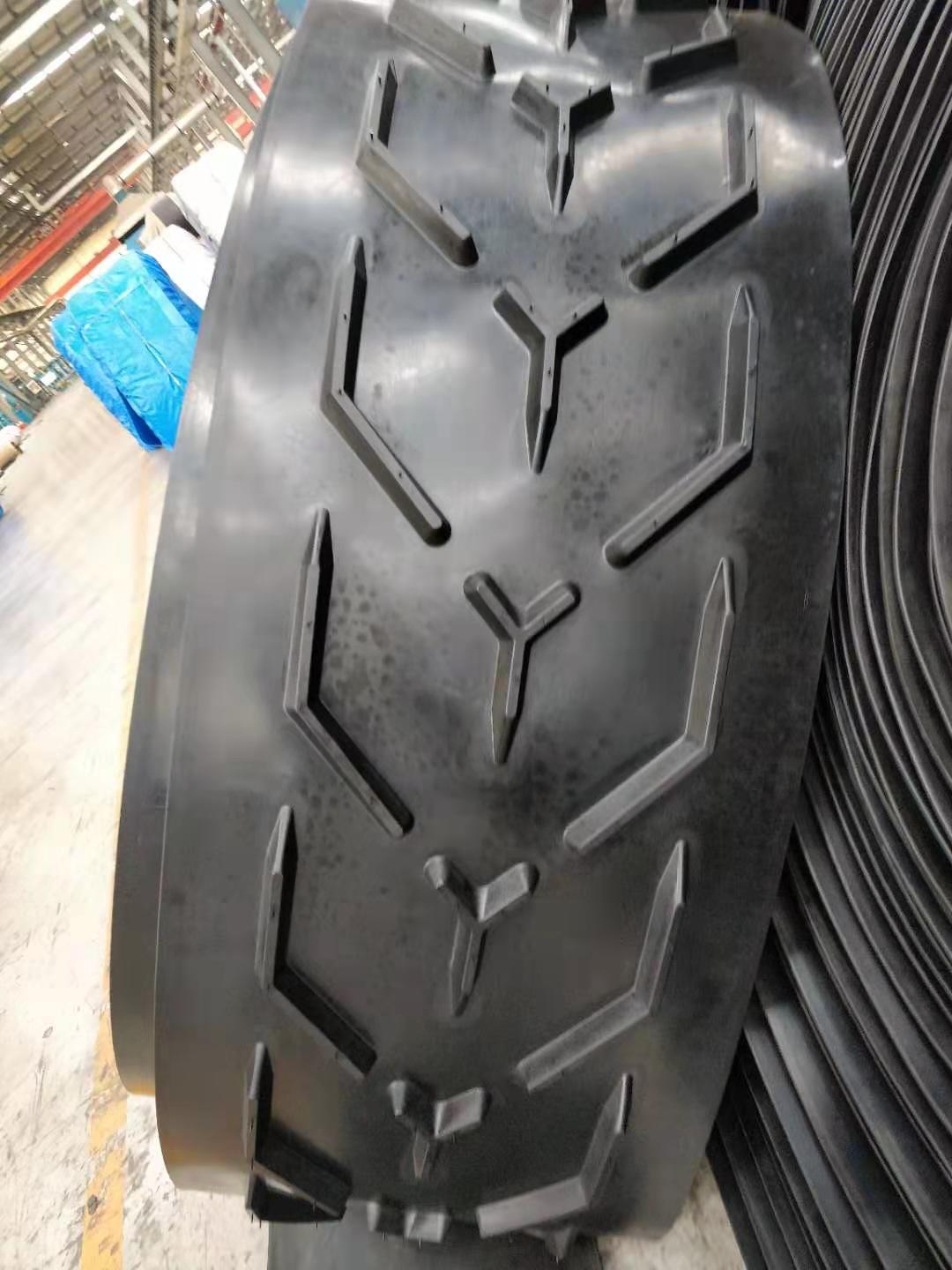

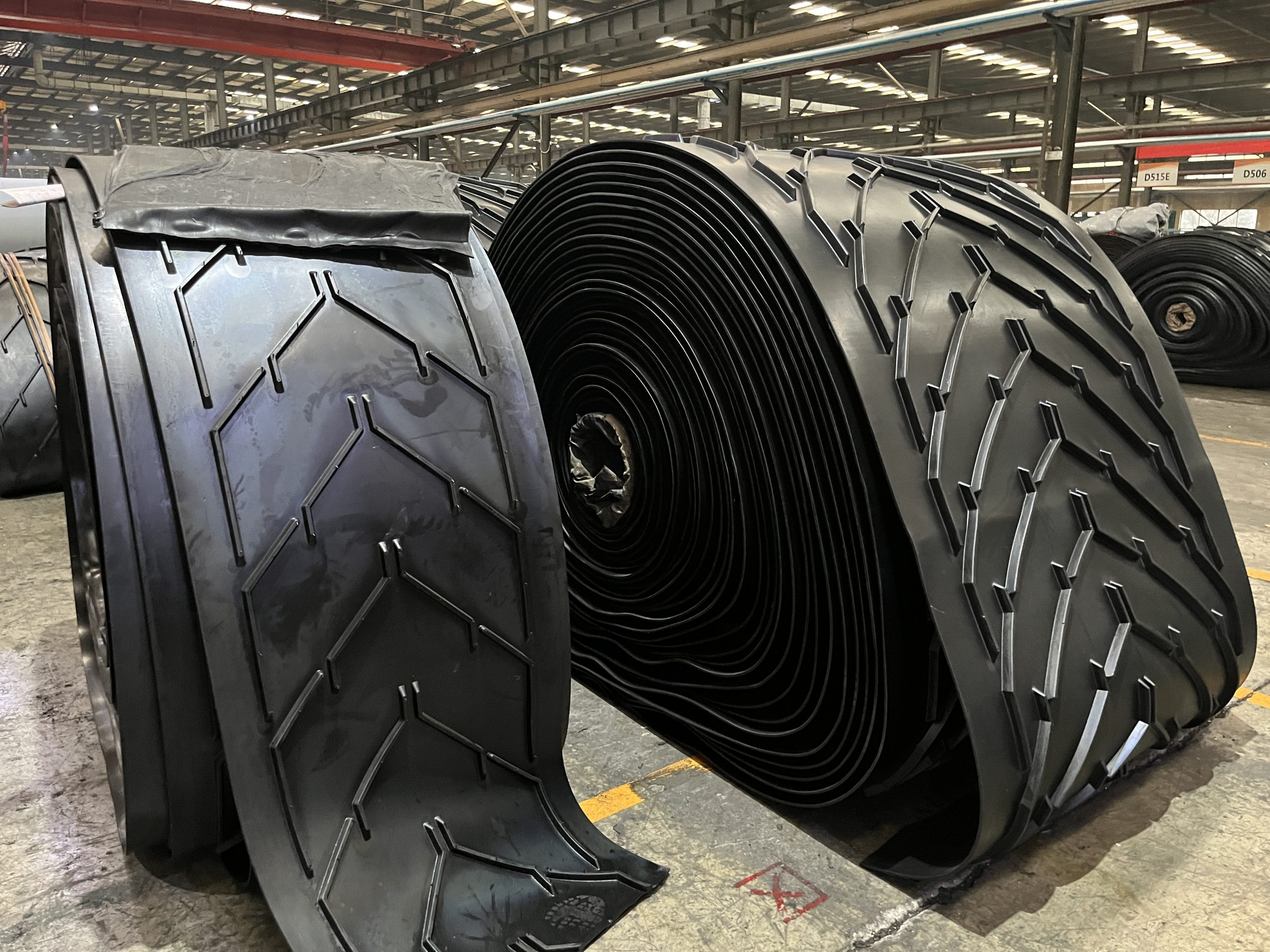

Chevron Belt Moulds Can Be Customized for You

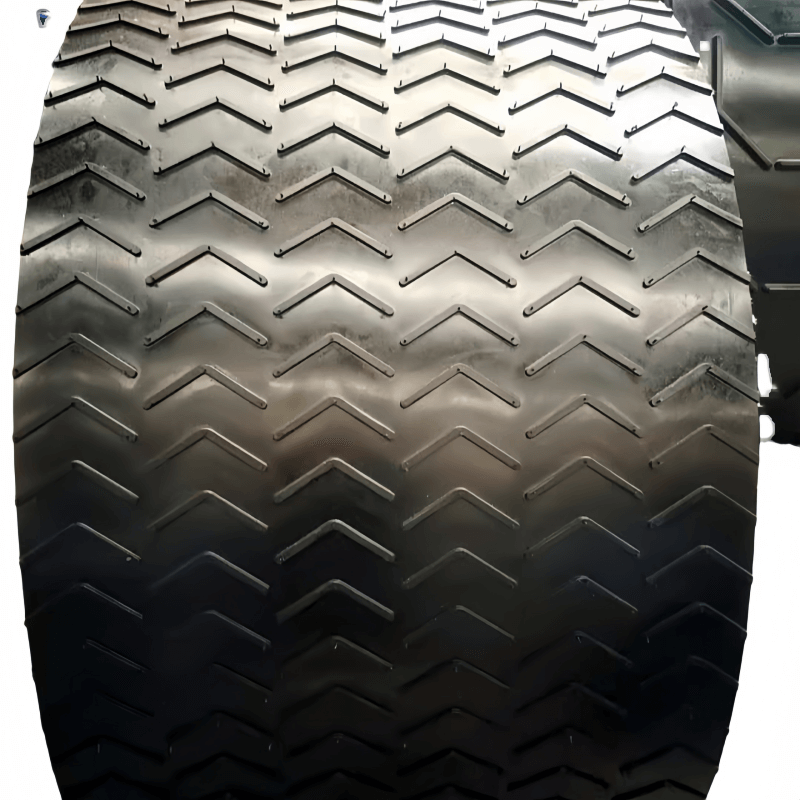

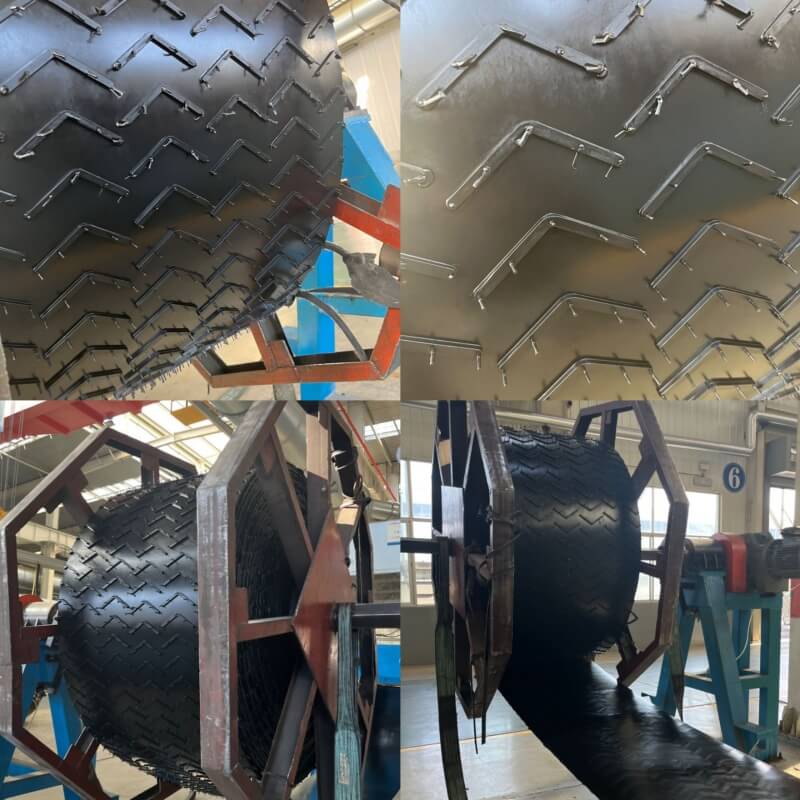

Chevron 6mm
CH (Height):
6mm
CW (Width):
1240mm-2310mm
CP (Pitch):
25mm/77mm
Belt Width:
1200mm-2300mm
Chevron 14mm
CH (Height):
14mm
CW (Width):
605mm/655mm
CP (Pitch):
200mm/250mmmm
Belt Width:
5600-800mm/650-1000mm

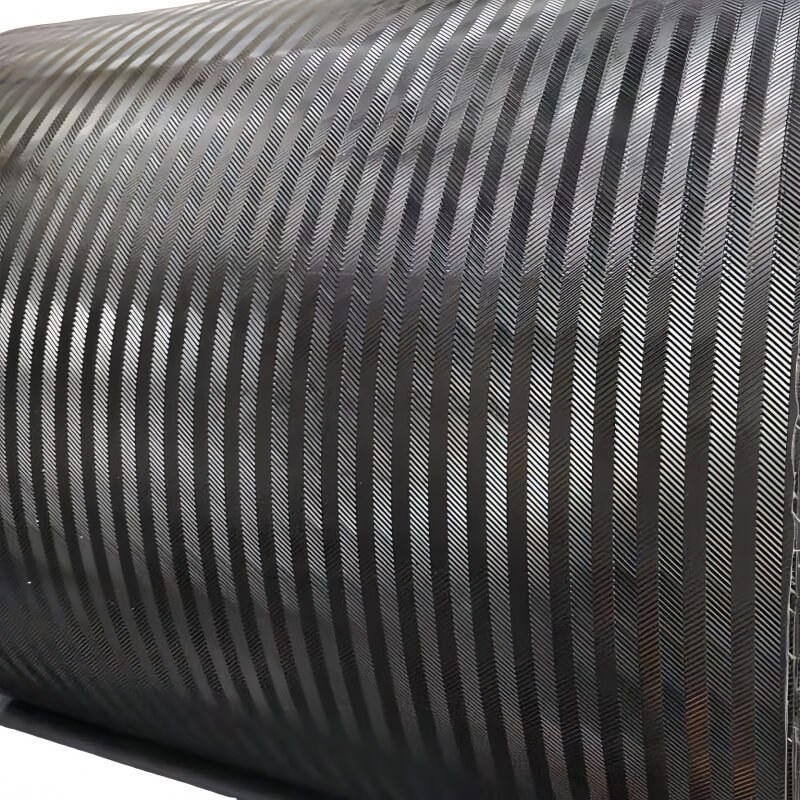

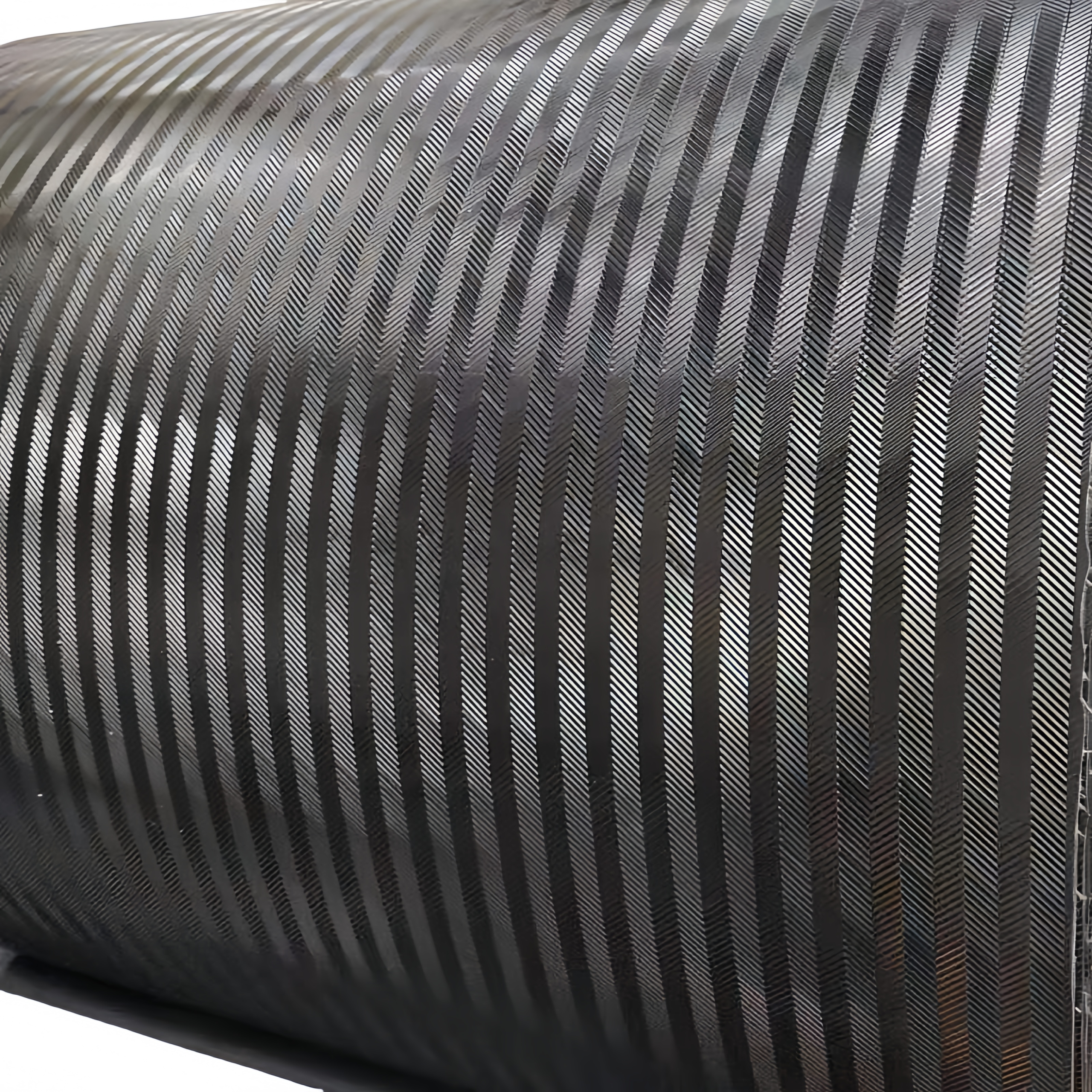

Chevron 1.2mm
CH (Height):
1.2mm
CW (Width):
1610mm
CP (Pitch):
5mm
Belt Width:
700-1500mm

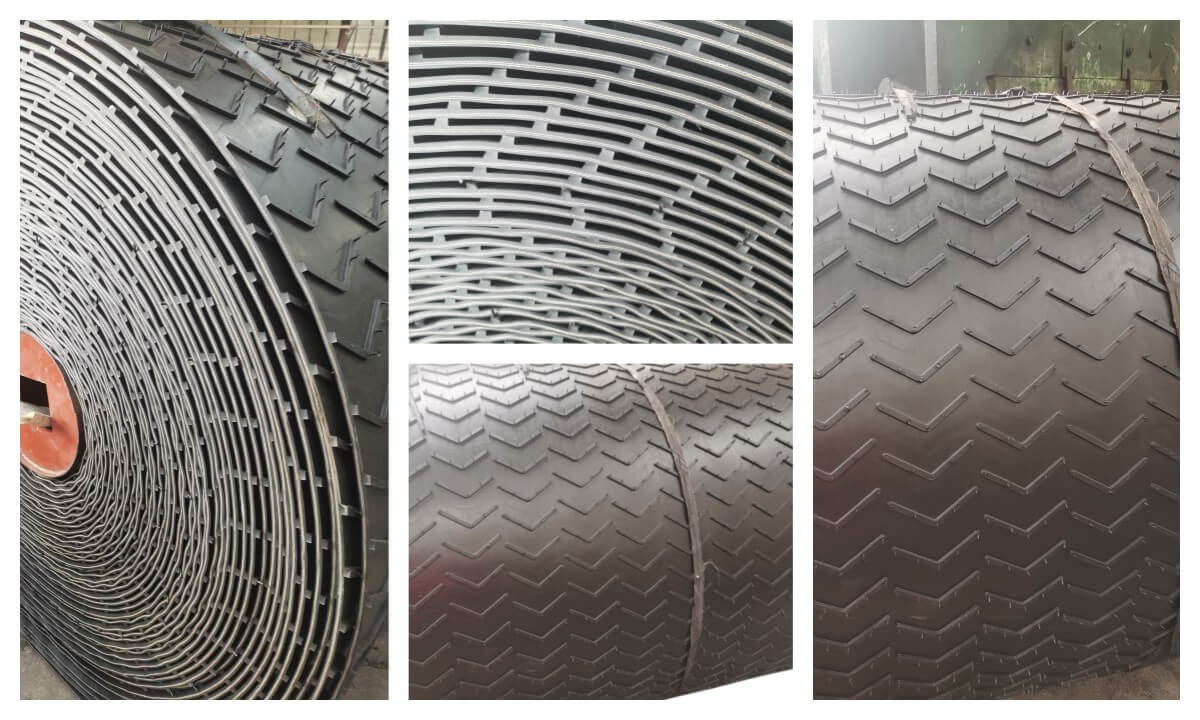

Chevron 6.35mm
CH (Height):
6.35mm
CW (Width):
600-1400mm
CP (Pitch):
76mm
Belt Width:
600-1400mm

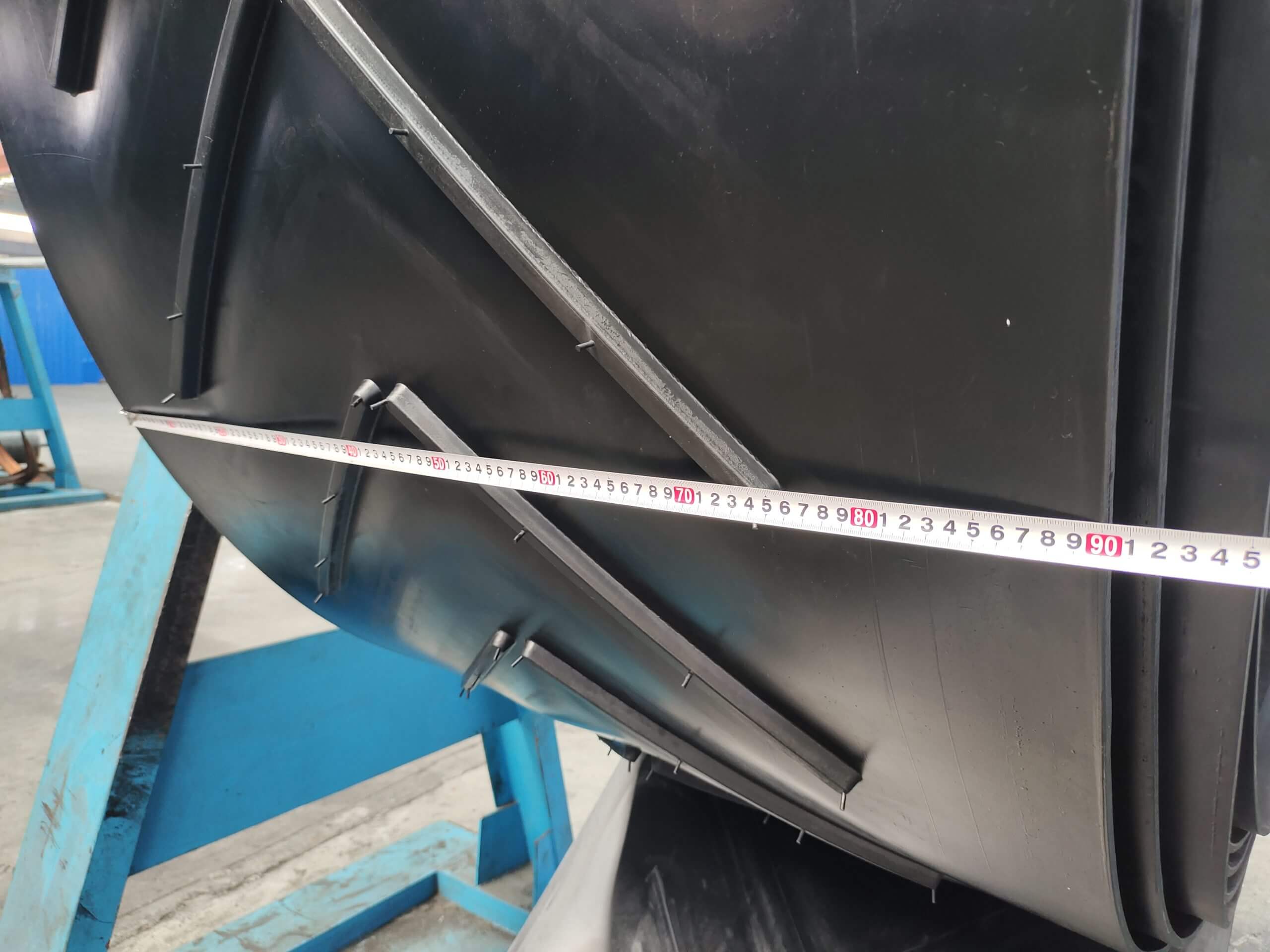

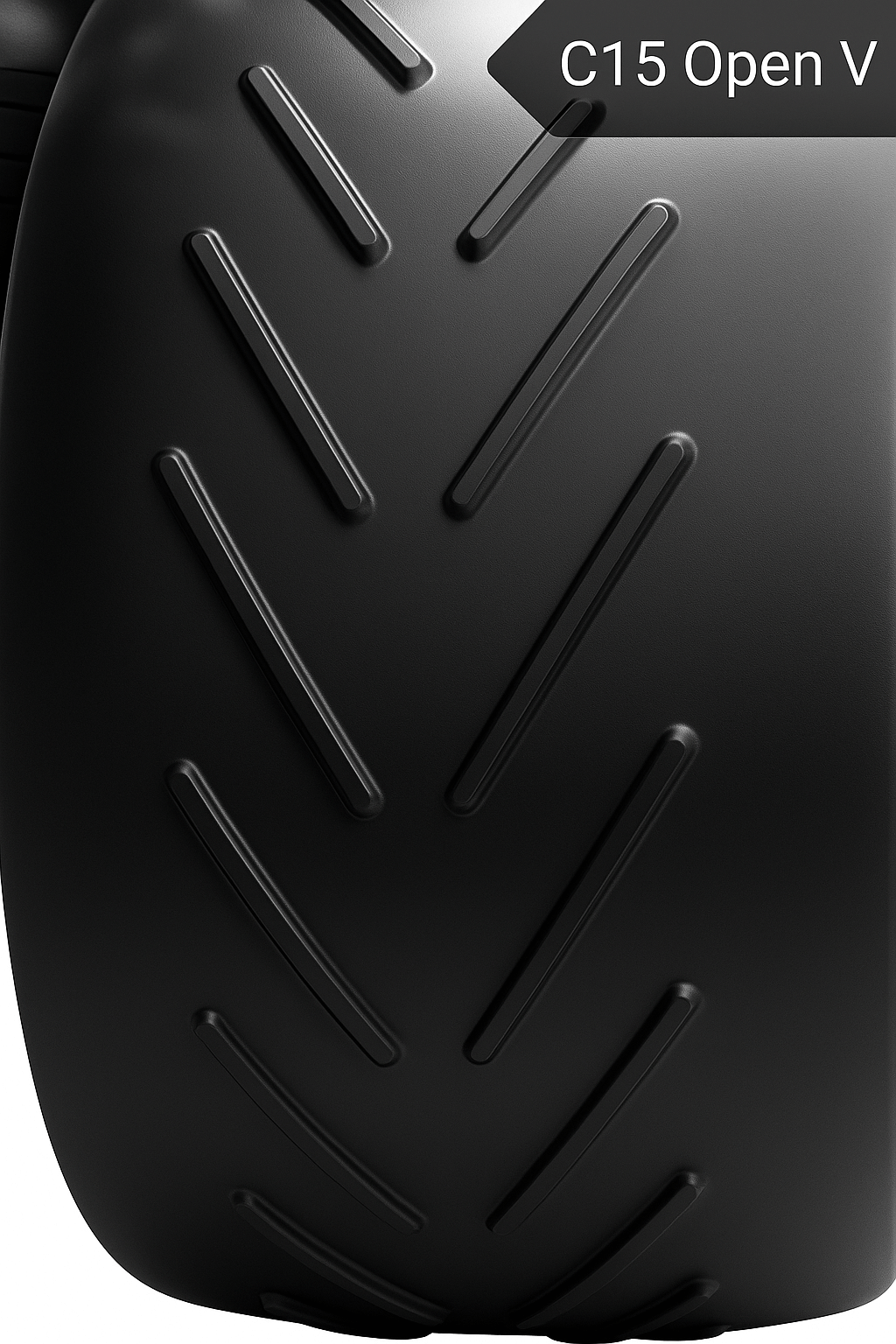

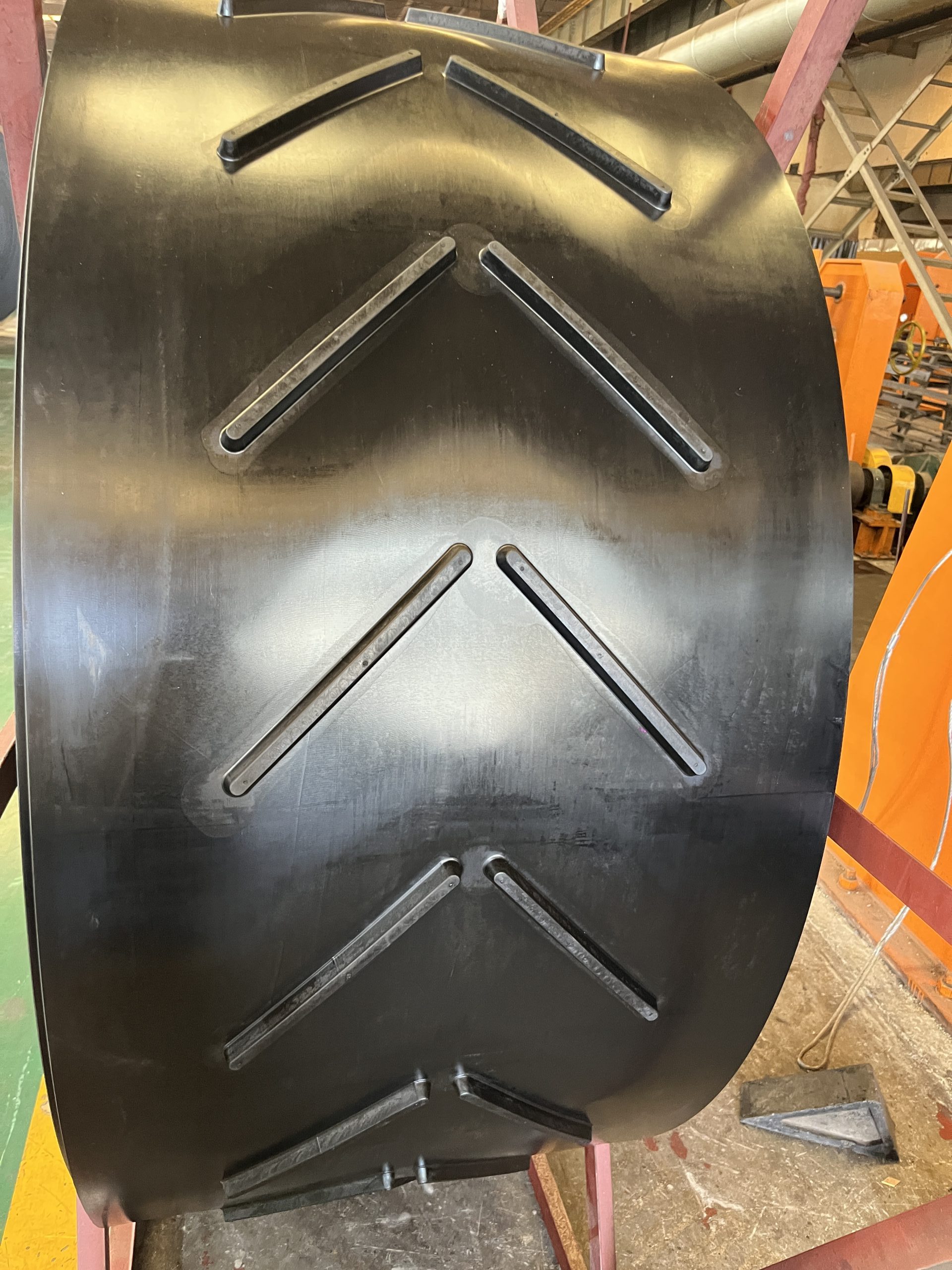

Chevron 15mm
CH (Height):
15-25mm
CW (Width):
450mm/475/575/550/750/775mm
CP (Pitch):
330mm/450mm/
Belt Width:
500-1400mm
Chevron 15mm
CH (Height):
15mm
CW (Width):
385mm
CP (Pitch):
256mm
Belt Width:
400-1200mm
Chevron 15mm
CH (Height):
15mm
CW (Width):
450mm
CP (Pitch):
250mm
Belt Width:
500-1200mm
Chevron 15mm
CH (Height):
15mm
CW (Width):
550mm
CP (Pitch):
500mm
Belt Width:
600-1200mm
Chevron 15mm
CH (Height):
15mm
CW (Width):
600mm
CP (Pitch):
500mm
Belt Width:
650-1200mm

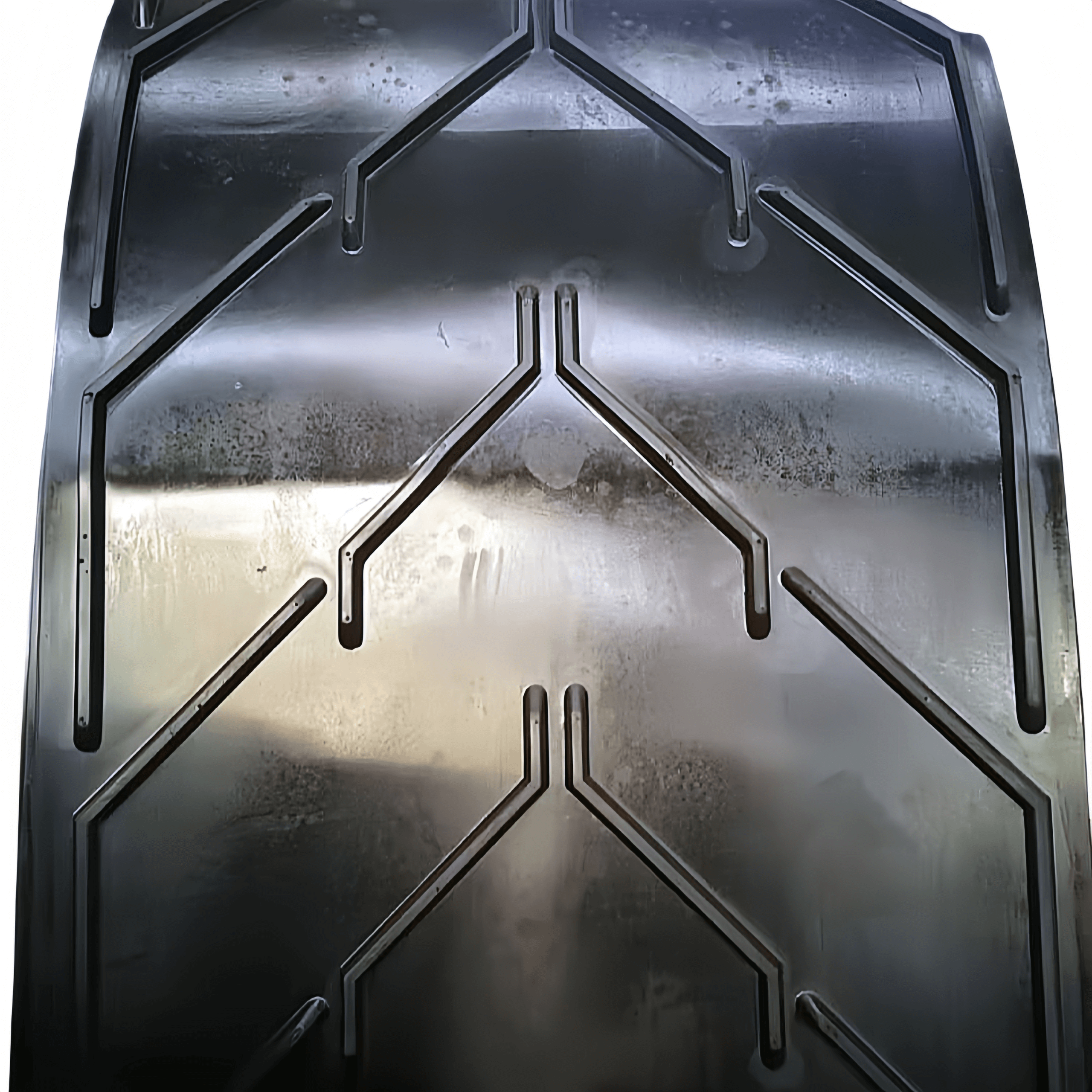

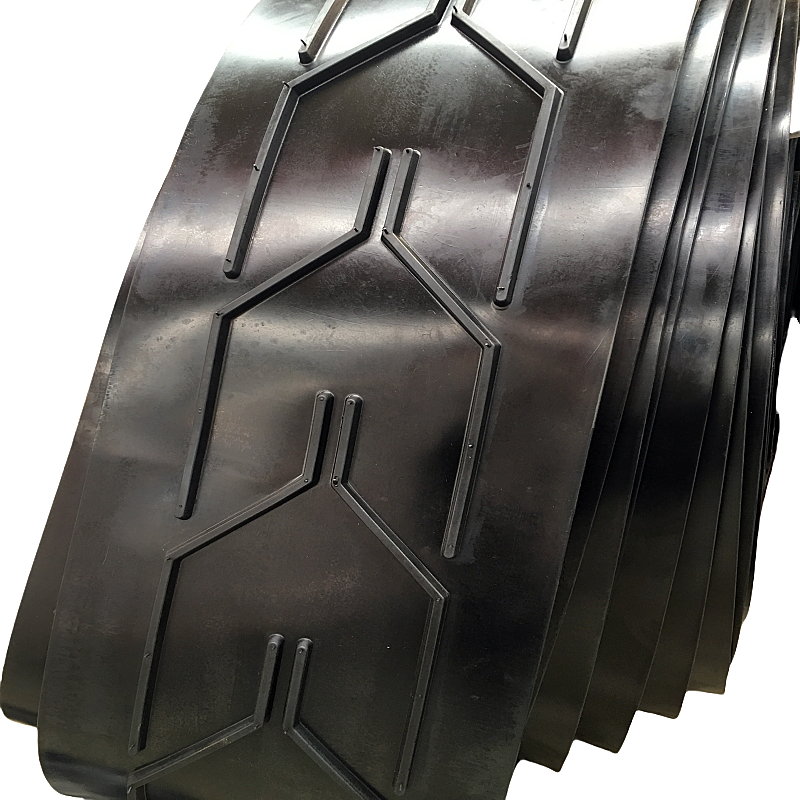

Chevron 17mm
CH (Height):
17mm
CW (Width):
300mm
CP (Pitch):
330mm
Belt Width:
400-1000mm
Chevron 17mm
CH (Height):
17mm
CW (Width):
440mm
CP (Pitch):
330mm
Belt Width:
500-1000mm
Chevron 25mm
CH (Height):
25mm
CW (Width):
1180mm
CP (Pitch):
400mm
Belt Width:
1200-1500mm

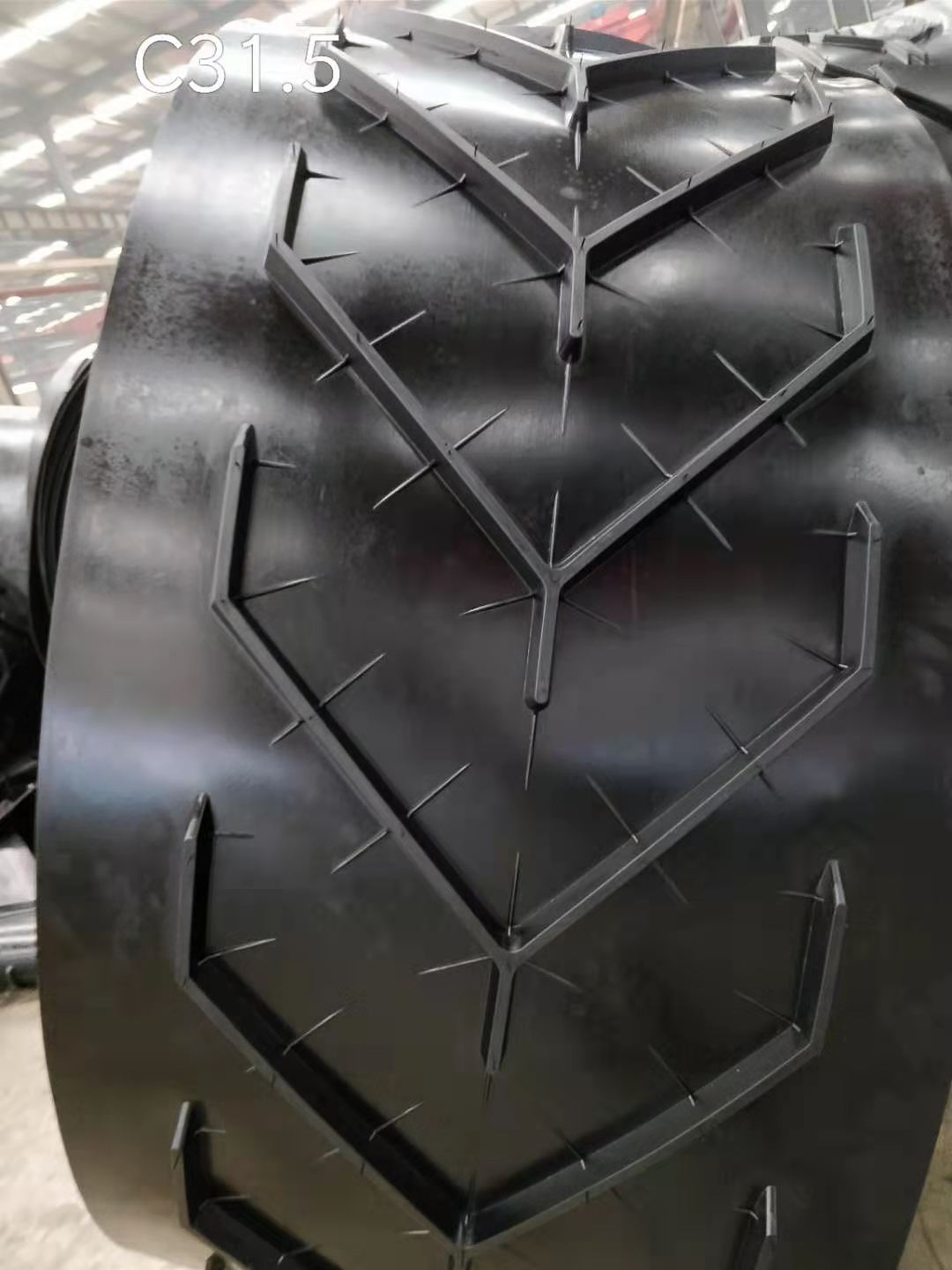

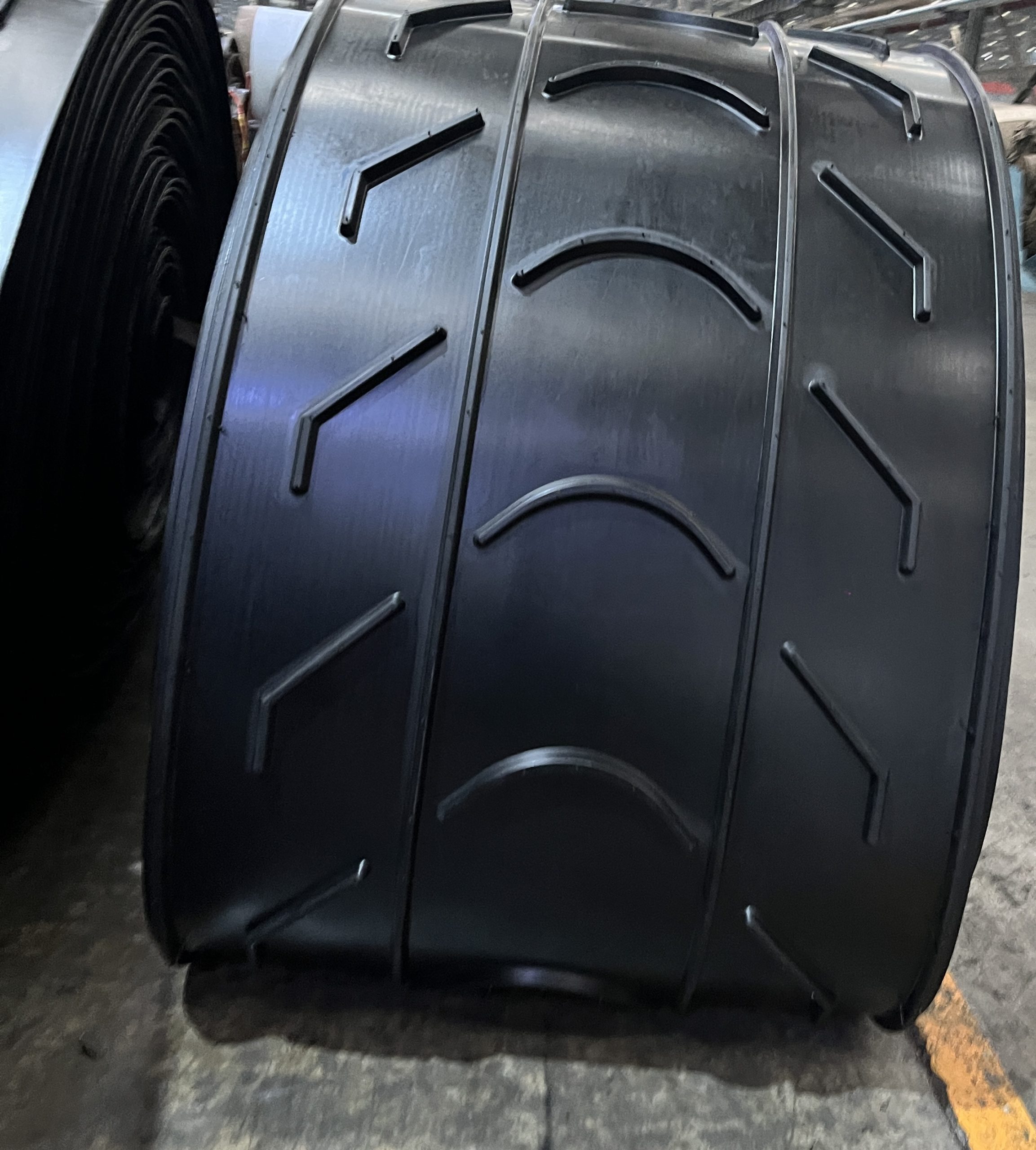

Chevron 31.5mm
CH (Height):
31.5mm
CW (Width):
590mm
CP (Pitch):
330mm
Belt Width:
700-1350mm
Chevron 32mm
CH (Height):
32mm
CW (Width):
450-600mm
CP (Pitch):
300-356mm
Belt Width:
550-1000mm
Custom Design
CH (Height):
Customizable
CW (Width):
Customizable
CP (Pitch):
Customizable
Belt Width:
300-1600mm
Can't find the exact pattern you need?
Technical Resources & Downloads
Chevron Pattern Product Brochure
Complete Chevron belt catalog with all pattern specifications, dimensions, and application guidelines for optimal selection (PDF, 8 MB)

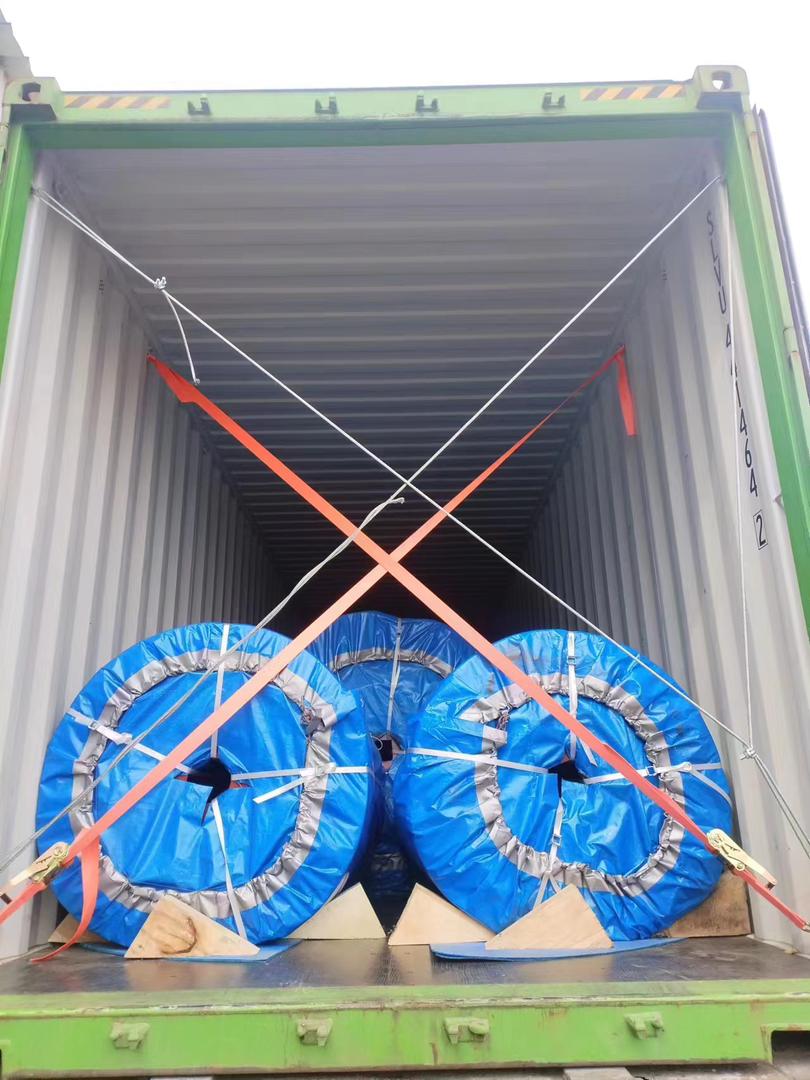

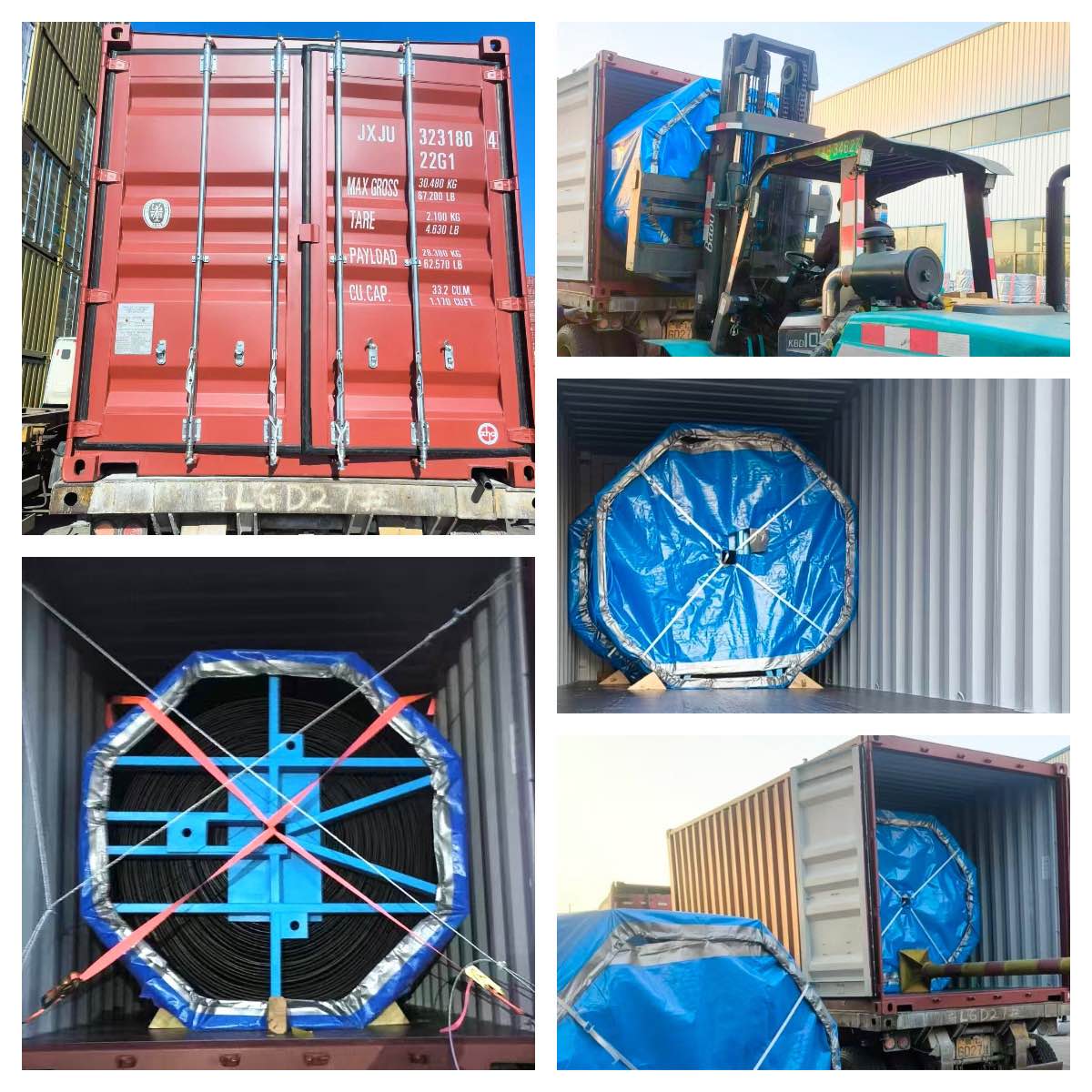

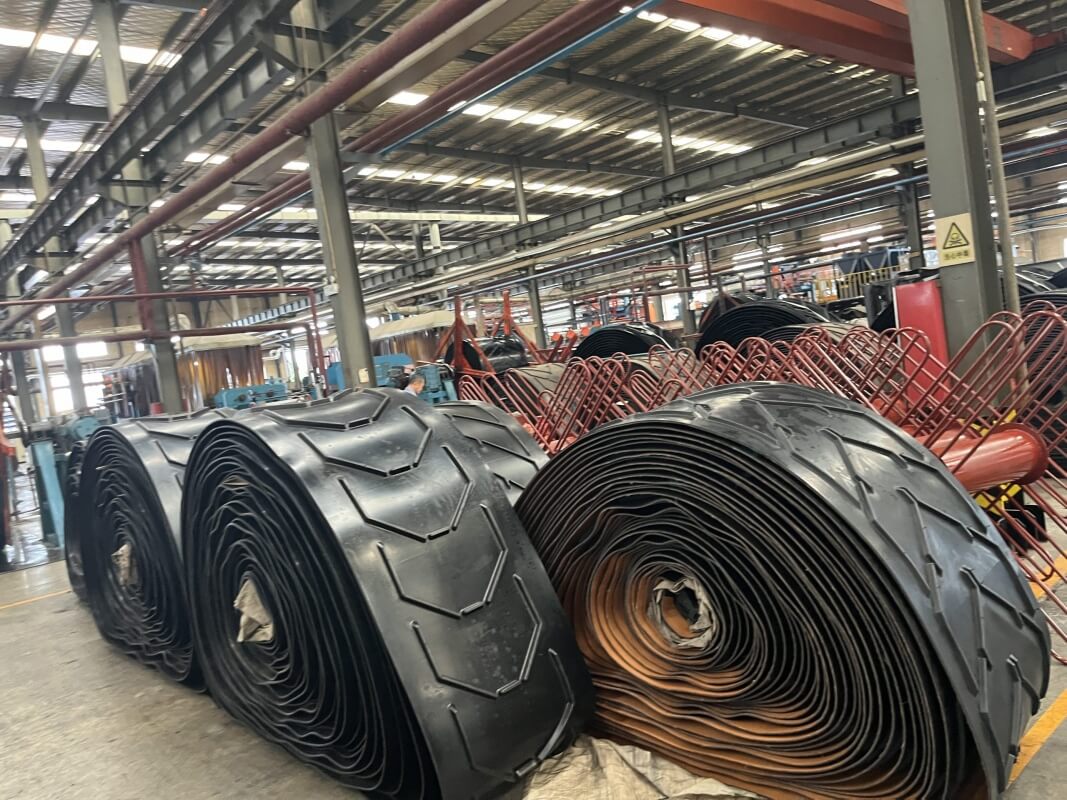

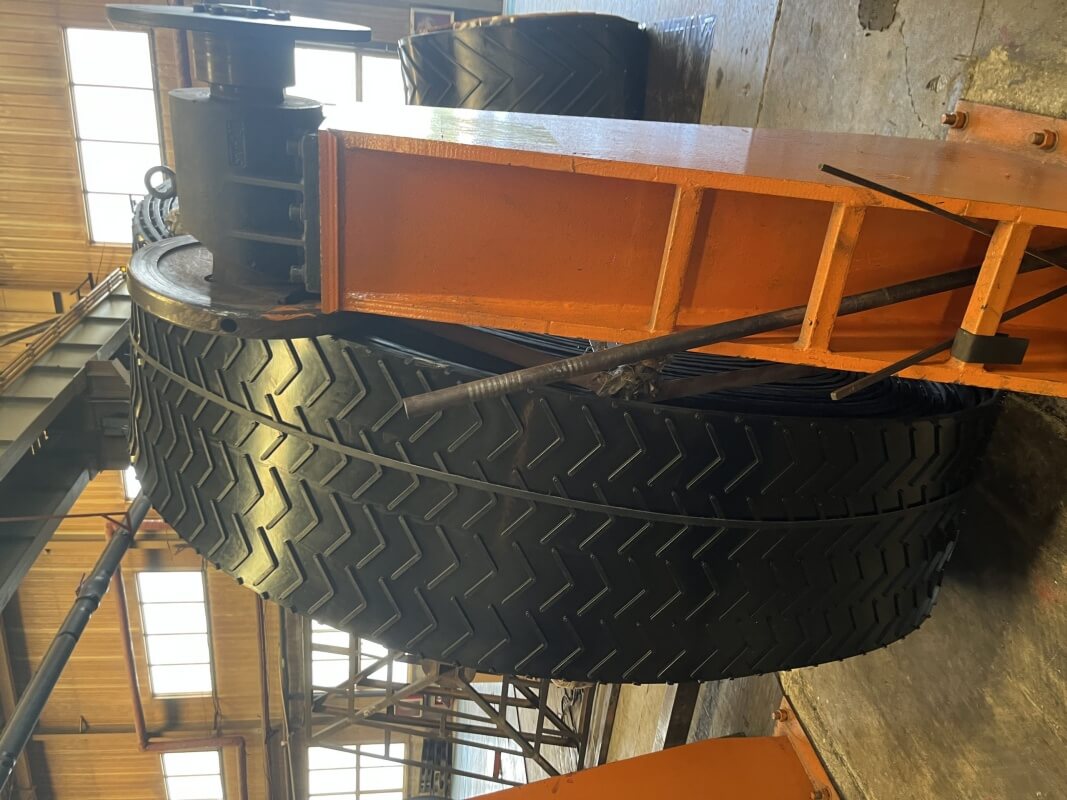

Download PDFPackaging & Global Delivery
Need a shipping quote or delivery timeline?
Let's Build Reliable Conveyor Solutions Together
Send us your specifications or project details — our engineers will analyze your requirements in 24h
Why Choose ZHENXING?
Free technical consultation and belt selection guidance
Custom belt design and accurate quotation within 24 hours
Sample available upon request for quality verification
Factory visit welcome – see our production firsthand
