Reliable Conveyor Belts for Coal Handling and Power Generation Systems
Industry Overview
Conveyor Belts for Power Plant Material Handling
Power plants depend on conveyor belt systems around the clock. From unloading docks to boiler feed points, continuous material flow keeps electricity generation stable — and any belt failure translates directly into costly plant downtime.
- Handle large material volumes with consistent throughput
- Sustain continuous 24/7 operation without performance loss
- Resist highly abrasive bulk materials — coal, ash, limestone
- Support long-distance conveying systems across the plant
Where We Deliver
Typical Applications in Power Plants
From fuel intake to residue removal — our belts keep every stage of power generation moving without interruption.

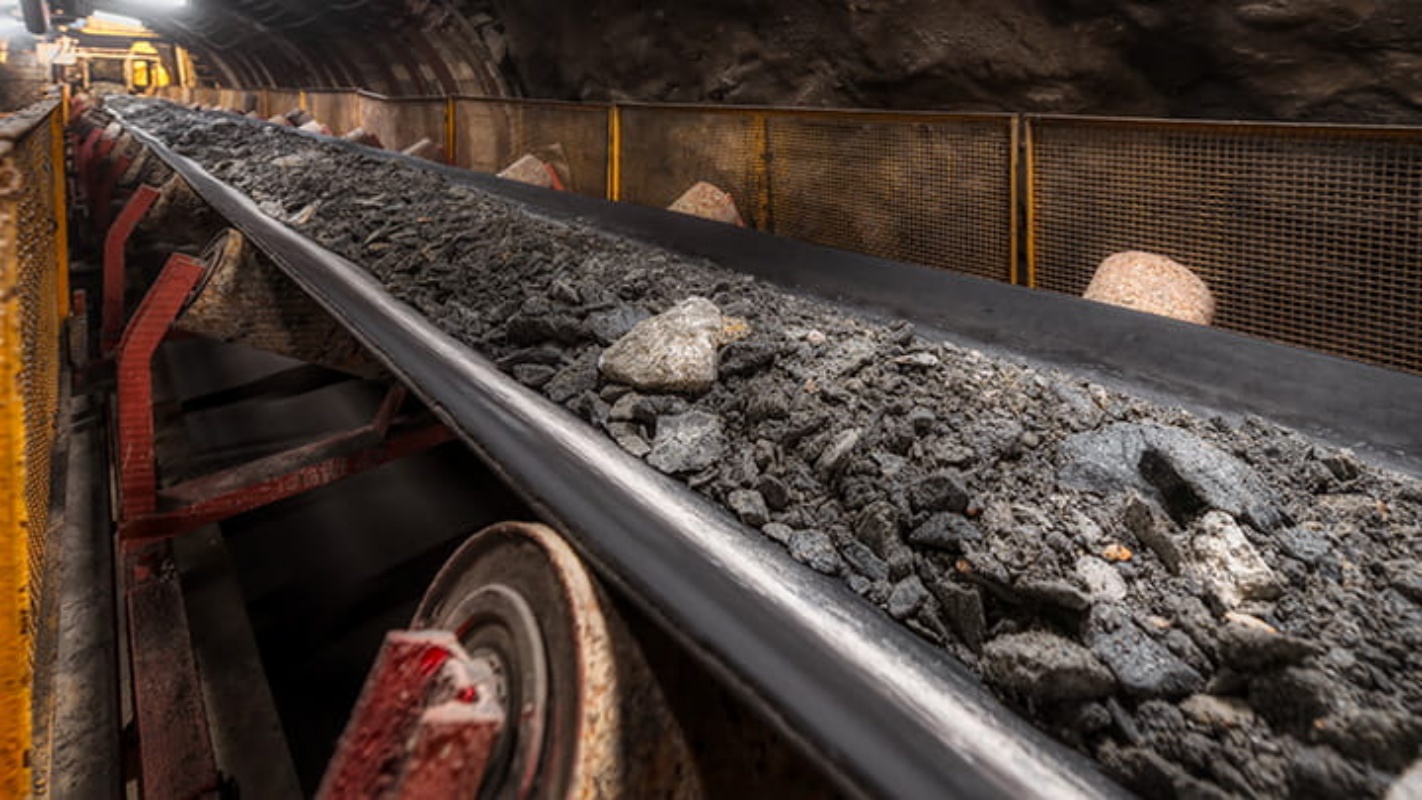

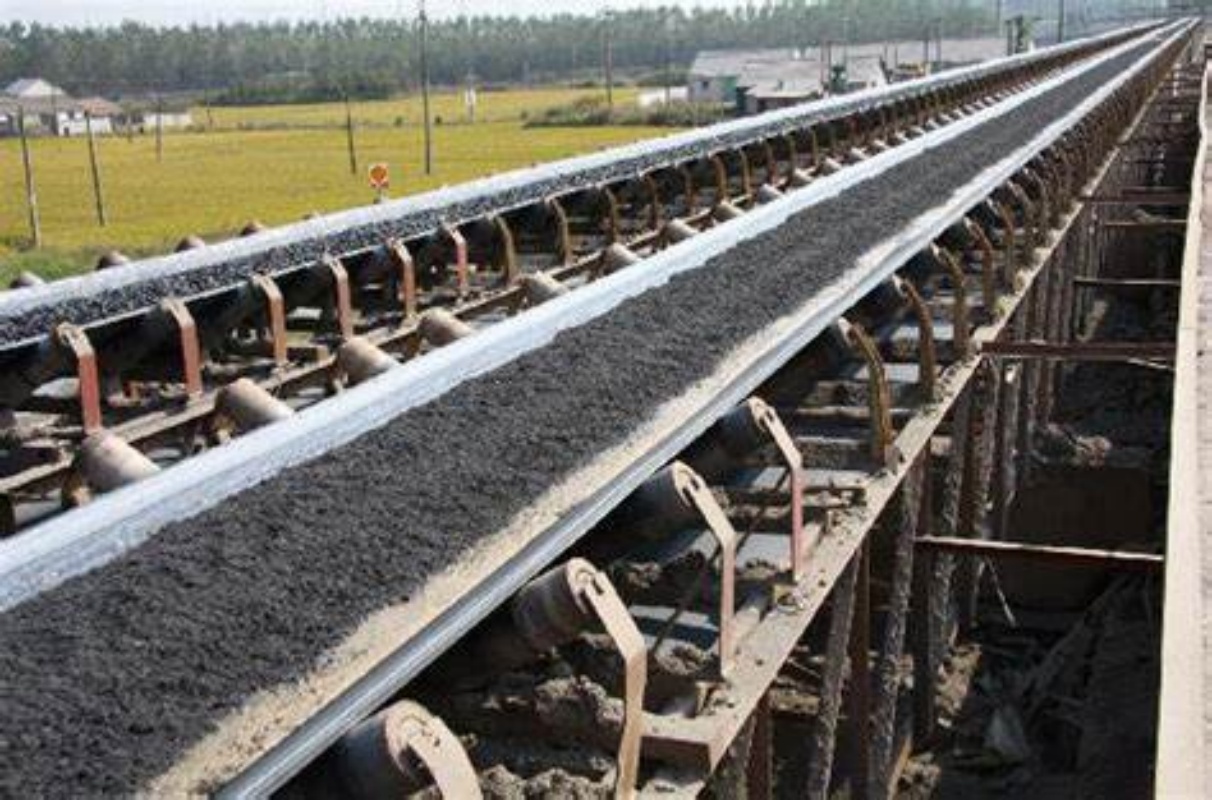

Coal Handling System
Transport coal from unloading stations to storage yards and boilers with zero disruption. Our belts handle high-volume coal streams reliably, reducing fuel supply bottlenecks and protecting boiler output.
Fuel Supply

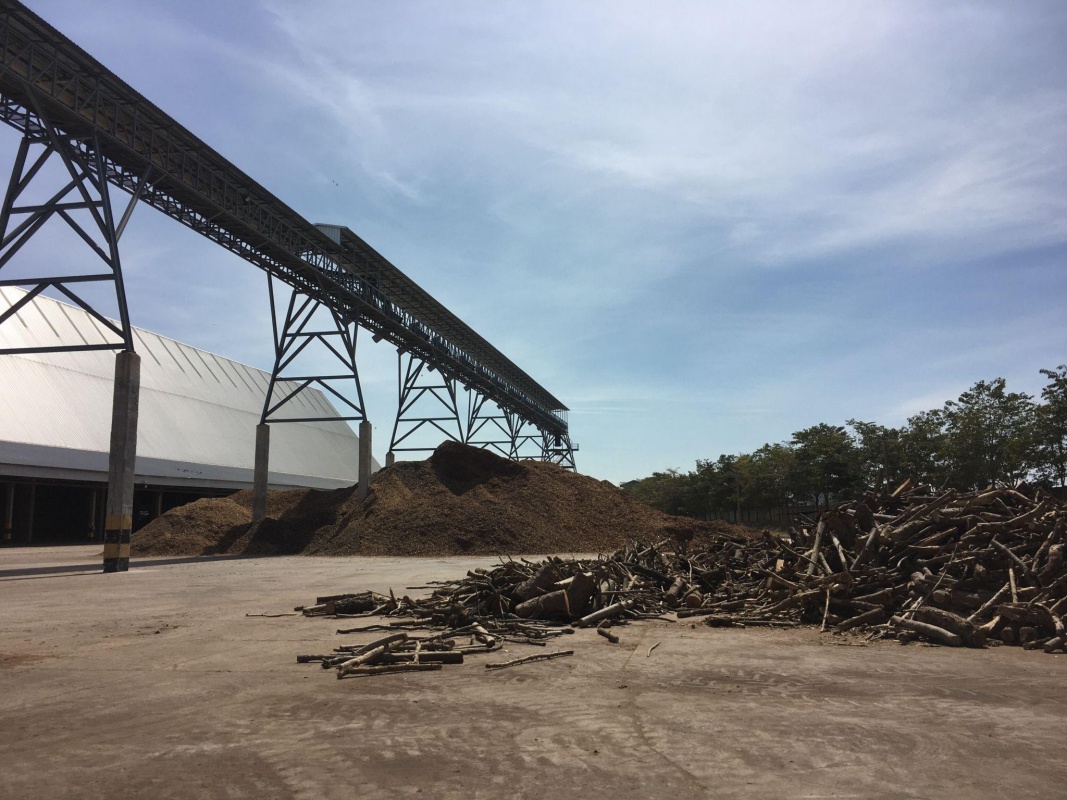

Biomass Handling
Designed for wood chips, pellets, and mixed biomass fuels, our belts provide the flexibility needed for variable biomass feedstocks — ensuring consistent feed rates and protecting sensitive combustion processes.
Green Energy
Limestone Conveying
Move limestone efficiently to flue gas desulfurization (FGD) systems. Our abrasion-resistant belt surfaces withstand sharp limestone particles, maintaining belt integrity and reducing replacement frequency.
Emission Control
Ash Handling System
Safely transport fly ash and bottom ash from collection points to storage or disposal areas. Heat-resistant compounds and reinforced covers protect belt integrity under continuous high-temperature ash loads.
Residue ManagementNeed conveyor belts tailored to your specific power plant application?
Product Range
Recommended Conveyor Belts for Power Plants
Each belt type is matched to specific power plant conditions — ensuring maximum performance, minimum downtime, and the lowest cost per tonne conveyed.
Heat Resistant Conveyor Belt
Formulated with heat-stable rubber compounds, this belt withstands continuous transport of hot materials such as clinker and fly ash up to 200°C — preventing premature degradation and unplanned shutdowns.
Get Specifications

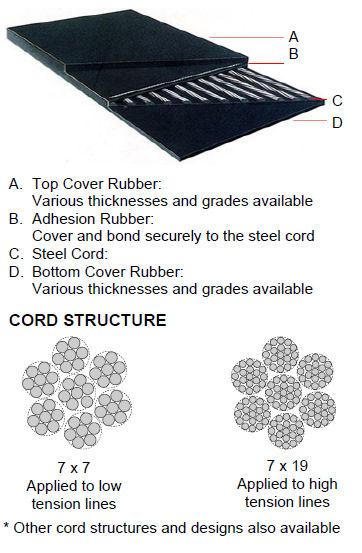

Steel Cord Conveyor Belt
Steel cord reinforcement delivers ultra-high tensile strength for long-distance, high-capacity coal conveying — minimising elongation, splice failures, and maintenance stops on critical plant haul routes.
Get Specifications
EP Fabric Conveyor Belt
Multi-ply EP (polyester-nylon) construction offers the flexibility and impact resistance ideal for medium-duty coal transfer — balancing cost efficiency with reliable troughing performance across all loading points.
Get Specifications
Flame Resistant Conveyor Belt
Self-extinguishing rubber compounds meet international fire safety standards for coal handling environments — protecting personnel, plant infrastructure, and production continuity from fire propagation risks.
Get SpecificationsNot sure which belt type suits your plant? Our engineers are ready to recommend the right solution.
Performance Benefits
Key Advantages of Our Power Plant Conveyor Belts
Every performance advantage translates into real operational savings — lower downtime, longer service life, and fewer replacement cycles.
High Tensile Strength
Reinforced carcass designs from 315 N/mm to 6300 N/mm handle maximum load demands without elongation or splice fatigue — even on steep inclines.
Excellent Abrasion Resistance
Premium DIN/ISO-grade cover rubber compounds resist wear from coal, ash, and limestone, extending belt lifespan and cutting annual replacement costs significantly.
Heat Resistance for Hot Materials
Specialized rubber formulations maintain structural integrity at temperatures up to 200°C, making them essential for ash and clinker conveying without rapid cover deterioration.
Long Service Life
Optimised compound ratios and precision manufacturing reduce surface wear rates, delivering a belt lifespan that outlasts commodity alternatives and lowers lifetime total cost of ownership.
Engineering Resilience
Built for Tough Power Plant Environments
Power plant conveyor belts face relentless operating stresses that standard industrial belts simply cannot withstand. Our belts are engineered from the ground up for the specific demands of power generation environments.
Heavy Dust Conditions
Dust-laden atmospheres accelerate surface abrasion. Our dense rubber compounds resist micro-particle infiltration to maintain cover integrity.
Abrasive Coal Materials
High-hardness coal particles cut through standard covers rapidly. Our abrasion-grade compounds are rated to DIN/ISO wear standards for proven protection.
High Temperature Zones
Clinker and ash loads can exceed 150°C. Heat-stabilised compounds prevent softening, delamination, and premature belt failure.
Continuous Operation
24/7 run cycles create fatigue stress on joints and carcass layers. High-strength carcass construction ensures reliable performance without rest cycles.
Our belts are engineered to maintain stable performance even under extreme industrial conditions — delivering consistent throughput, reduced unplanned stoppages, and lower total maintenance expenditure across the full belt service life.
Facing a specific challenge in your plant environment?
Technical Data
Typical Conveyor Belt Specifications
Our standard power plant conveyor belt range covers a wide parameter set. Custom specifications are available on request.
| Parameter | Specification Range |
|---|---|
| Belt Width | 500 mm – 2400 mm |
| Tensile Strength | 315 N/mm – 6300 N/mm |
| Cover Thickness (Top/Bottom) | 3 mm – 25 mm |
| Temperature Resistance | -30°C to +200°C |
| Elongation at Break | ≥ 400% |
| Abrasion Loss (DIN) | ≤ 90 mm³ (Grade H) |
| Belt Length | Custom per project |
| Standards: DIN 22102 / ISO 15236 / RMA Standards. All specifications subject to grade and application. | |
Tailored for You
Customized Conveyor Belt Solutions for Power Plants
No two power plants are identical. We design every belt to your exact operating parameters — so it performs from day one and lasts significantly longer.
We provide customized conveyor belts designed specifically for power plant conveyor systems. Our engineers analyse your operating conditions, material properties, and conveyor layout to recommend the most effective belt solution.
Our engineering team has delivered custom belt solutions to power plants across 40+ countries, including coal-fired, biomass, and waste-to-energy facilities. Every custom project is backed by full technical documentation, factory test reports, and on-site installation guidance.
Share Your Requirements
Submit belt width, material type, operating temperature, and conveyor length via our enquiry form.
Engineering Review
Our engineers analyse your parameters and specify the optimal belt grade, compound, and carcass configuration.
Receive Your Custom Quote
A detailed technical proposal with pricing, lead time, and full specification sheet delivered within 24 hours.
Ready to build a belt solution designed exactly for your power plant?
Our Credentials
Why Choose Our Conveyor Belt Factory
Every belt we ship carries decades of manufacturing expertise, rigorous quality standards, and a global track record that proves performance in the field.
40+ Years Manufacturing Experience
Four decades of continuous production give us unmatched process knowledge — from compound formulation to precision vulcanisation — translating into belts that consistently outperform specifications.
Since 1984Advanced Production Lines
Our state-of-the-art production facilities feature automated calendering, precision cutting, and computer-controlled vulcanisation — delivering dimensional consistency and compound uniformity across every batch.
ISO Certified PlantStrict Quality Inspection
Every belt undergoes multi-stage QC: tensile testing, abrasion testing, adhesion testing, and dimensional verification — with full test reports provided for each shipment to give you traceable quality assurance.
100% Pre-ship TestingOEM / ODM Available
We support distributors and EPC contractors with full OEM services: custom branding, private label packaging, custom technical documentation, and dedicated account management for high-volume projects.
Flexible MOQExported to 40+ Countries
Our conveyor belts are operating in power plants, mines, and bulk handling facilities across Asia, Europe, the Middle East, and Africa — a global reference base that demonstrates reliable international performance.
Global NetworkFast Delivery & Technical Support
With large production capacity and finished goods inventory, we deliver standard belts within tight lead times. Our technical team provides pre-sale guidance, installation advice, and post-sale support throughout belt life.
15-Day Lead Time"We replaced our entire coal conveyor belt system with their heat-resistant belts. Eighteen months later, we haven't had a single unplanned belt stoppage. The reduction in maintenance cost alone justified the investment in the first year."
Partner with a Factory That Understands Power Plants
Join over 200 power plant operators worldwide who trust our conveyor belts to keep their fuel supply moving — 24 hours a day, every day of the year.
