Why Flame Retardant Conveyor Belts Are Essential in Underground？
One Fire Can Shut Down the Entire Mine
A single belt fire can lead to forced production stoppages, emergency evacuations, regulatory investigations, and severe economic losses. In many regions, it may also result in suspension or revocation of mining licenses.
Flame Retardant Conveyor Belts Are Not Optional — They Are Mandatory
For underground coal mining, flame retardant conveyor belts are a critical safety requirement, not a cost upgrade. They are essential for protecting workers’ lives, ensuring regulatory compliance, and maintaining stable, long-term production.
One Accident = Complete Shutdown
Underground coal mines operate in high-temperature environments where fine coal dust is constantly present. This combination creates a highly explosive atmosphere, where even a small ignition source can trigger a major disaster.
The conveyor belt is the longest and most dangerous combustible component in underground mines
Underground Coal Mining Conveyor Belt Standards
Comprehensive testing protocols ensuring maximum safety
Alcohol Burner Combustion Test
Drum Friction Test

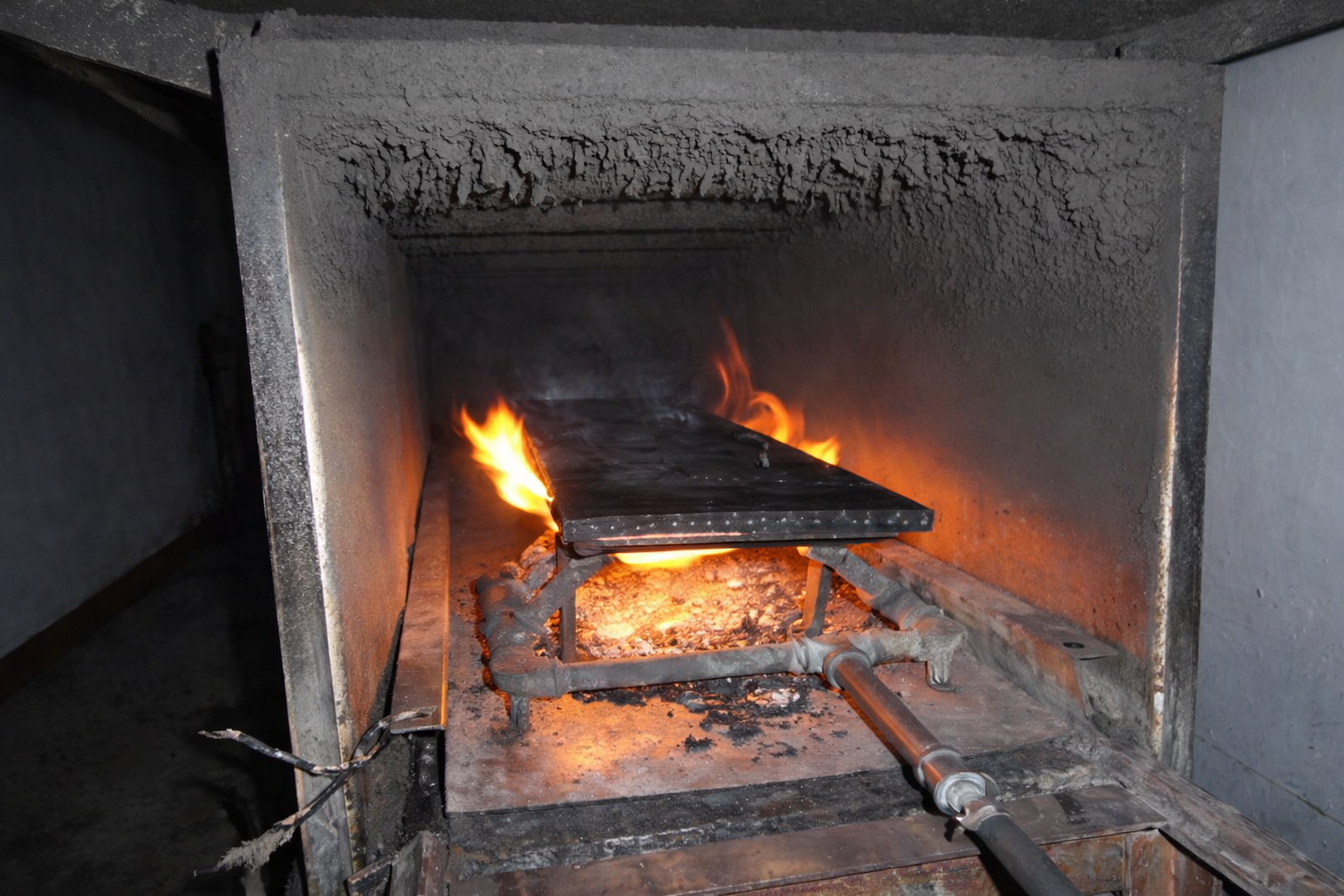

Gallery Propane Combustion Test

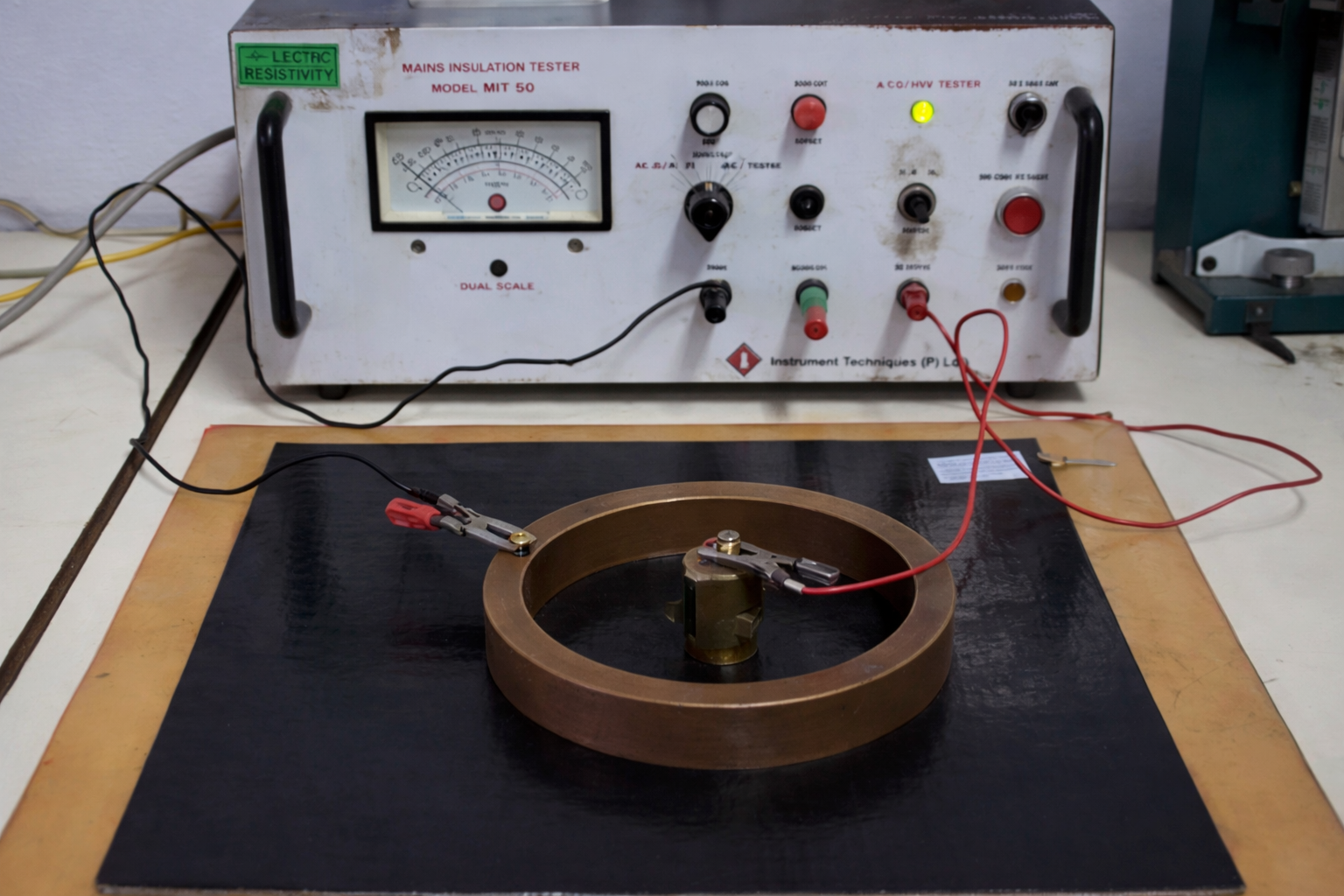

Surface Resistance
Flame Retardant Conveyor Belt
Engineered for safety, certified for compliance
Steel Cord Flame Retardant Belt
Premium solution with exceptional tensile strength and MT/T 668 certification.
Textile Flame Retardant Belt
Versatile textile-reinforced with excellent flexibility.
Solid Woven Belt (PVC/PVG)
Cost-effective for medium-capacity operations.
Aramid Flame Retardant Belt
Next-generation lightweight with maximum strength-to-weight ratio.

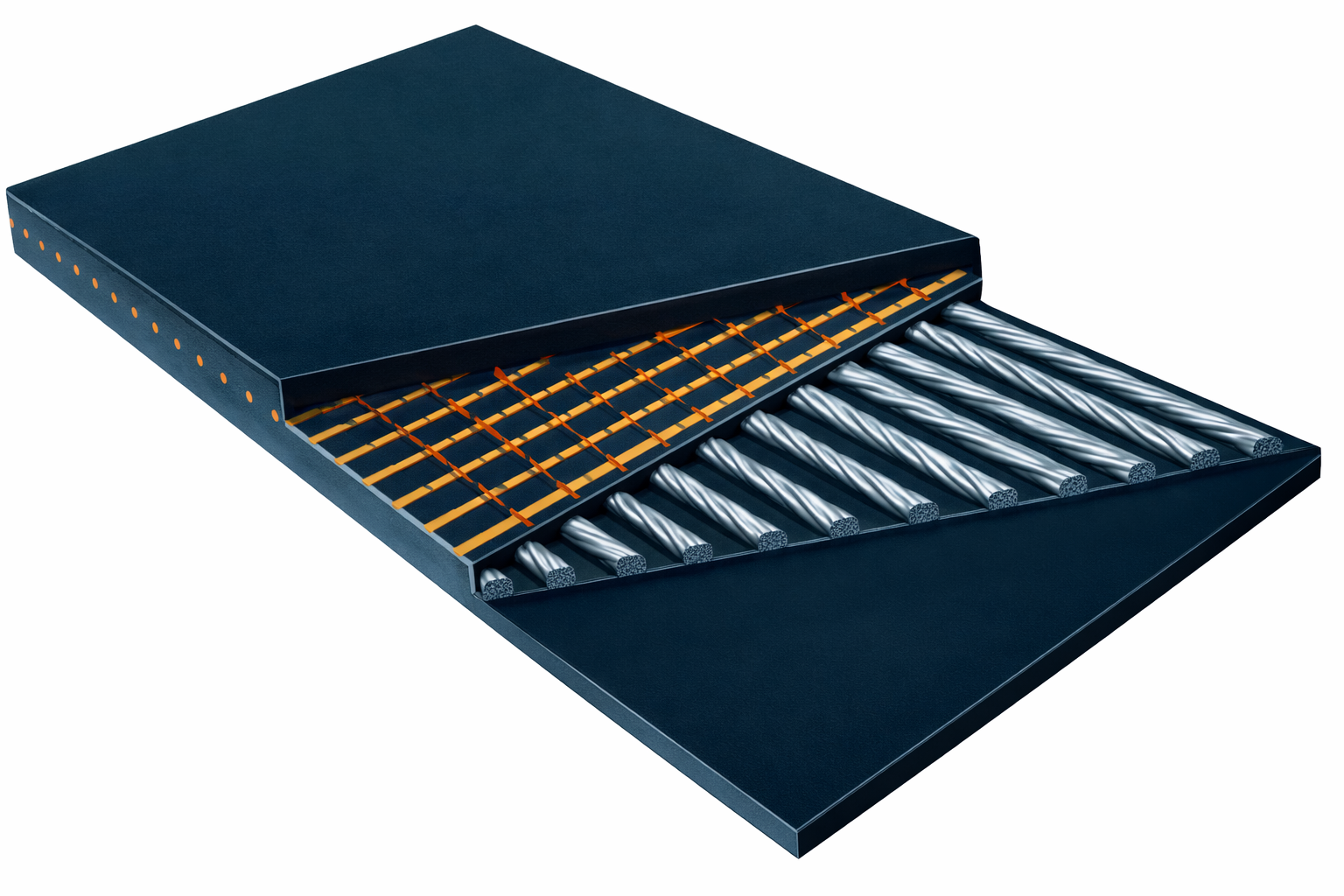

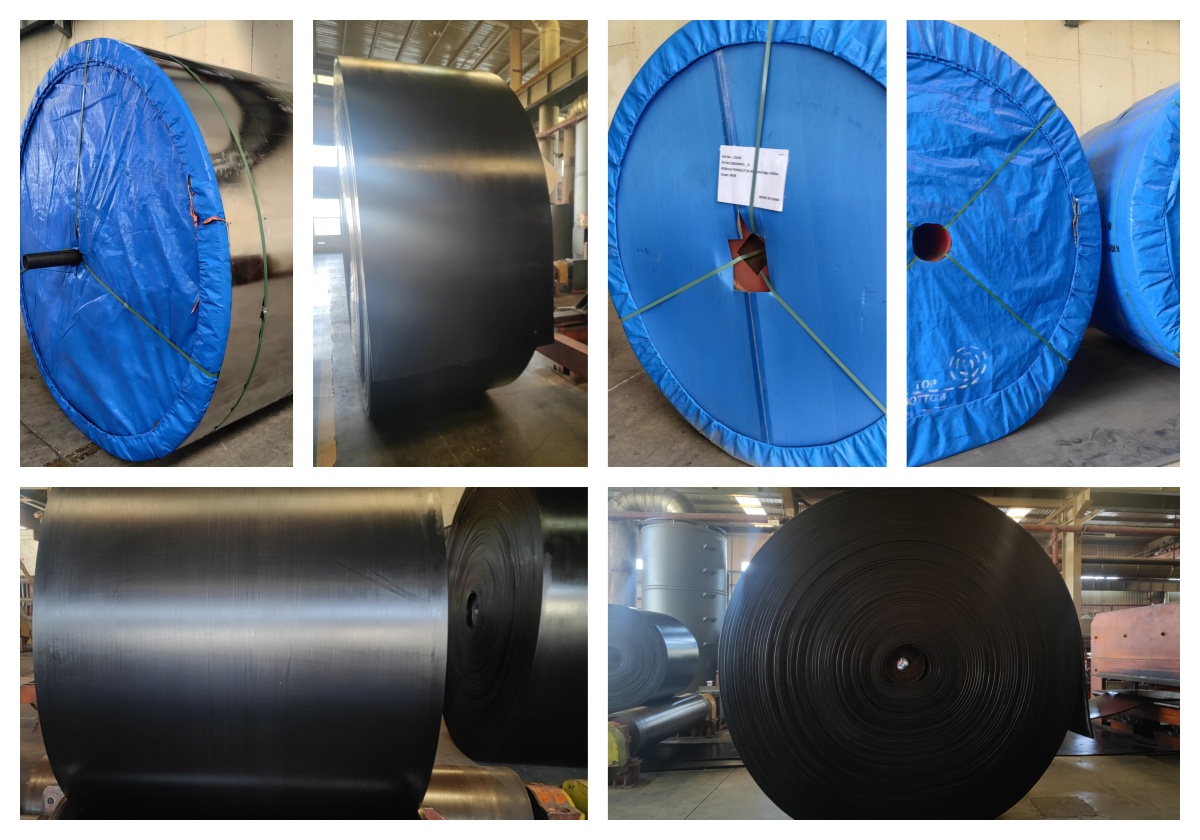

Steel Cord FR Conveyor Belt
Government-designated production enterprise for high-strength steel cord belts
ZHENXING is officially designated by the Chinese government as a qualified manufacturer of steel cord flame retardant conveyor belts for underground coal mining, meeting the strictest national safety standards.
Ultra-High Tensile Strength
Steel cord reinforcement provides tensile strength up to 4500 N/mm, enabling long-distance transport (up to 3000m) with minimal elongation and maximum load capacity.
Superior Flame Retardant Performance
Meets MT 668-2019 and EN 14973 standards with excellent fire resistance, self-extinguishing properties, and anti-static surface protection preventing combustion propagation.
Why Choose Our Steel Cord Conveyor Belts?
Textile Flame Retardant Conveyor Belt
2019 Australia & South Africa underground coal mine certification + Shandong Single Champion Product

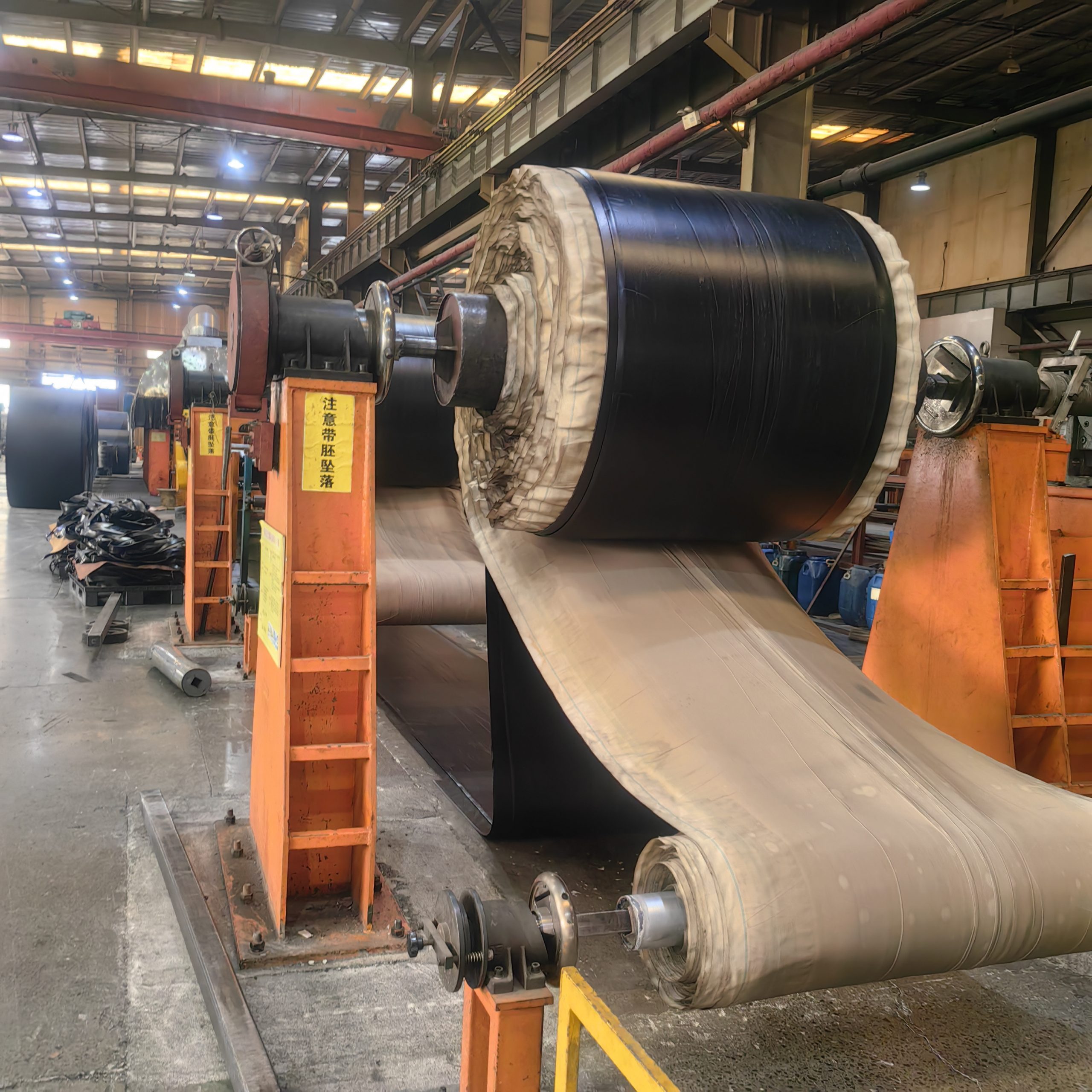

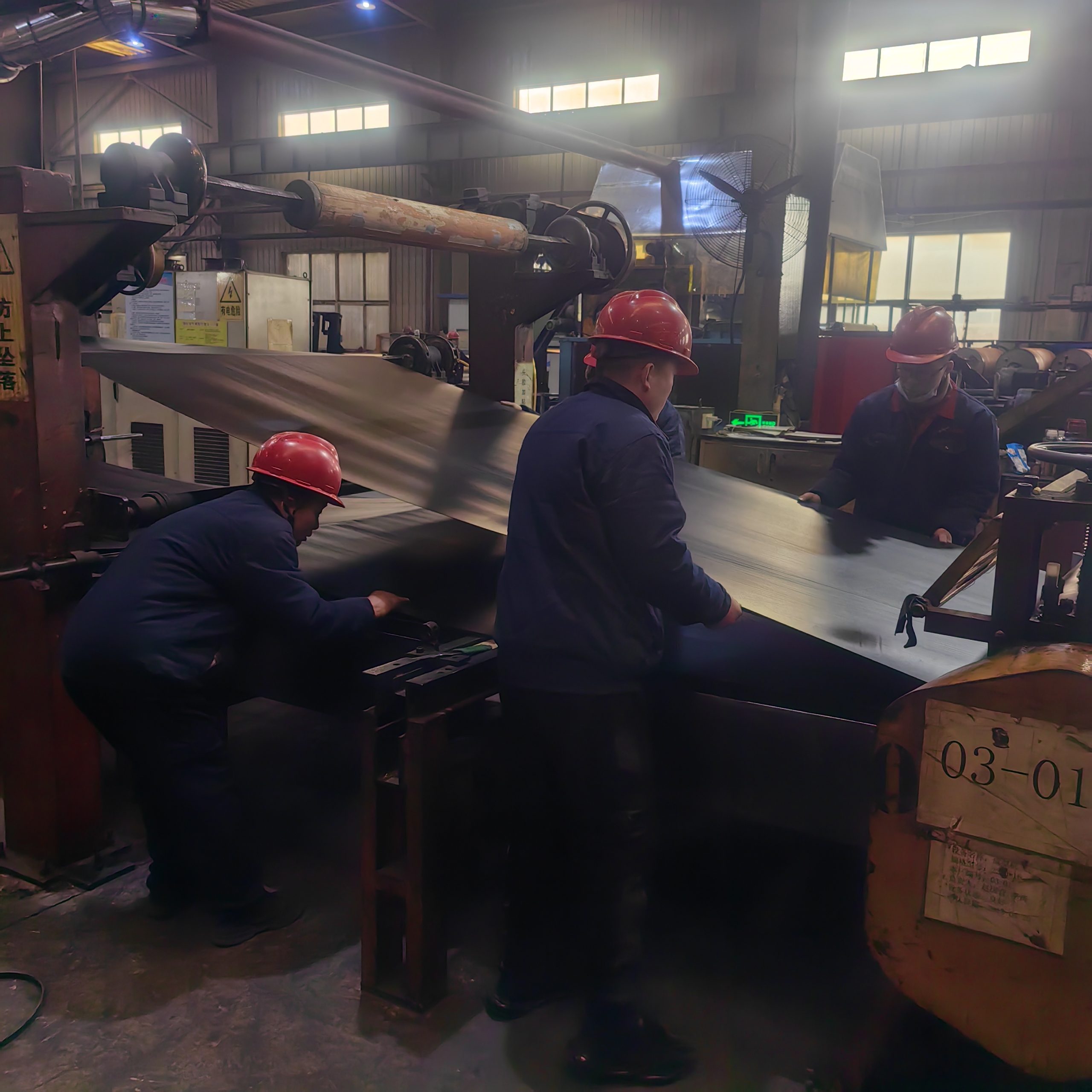

Complete Production Process

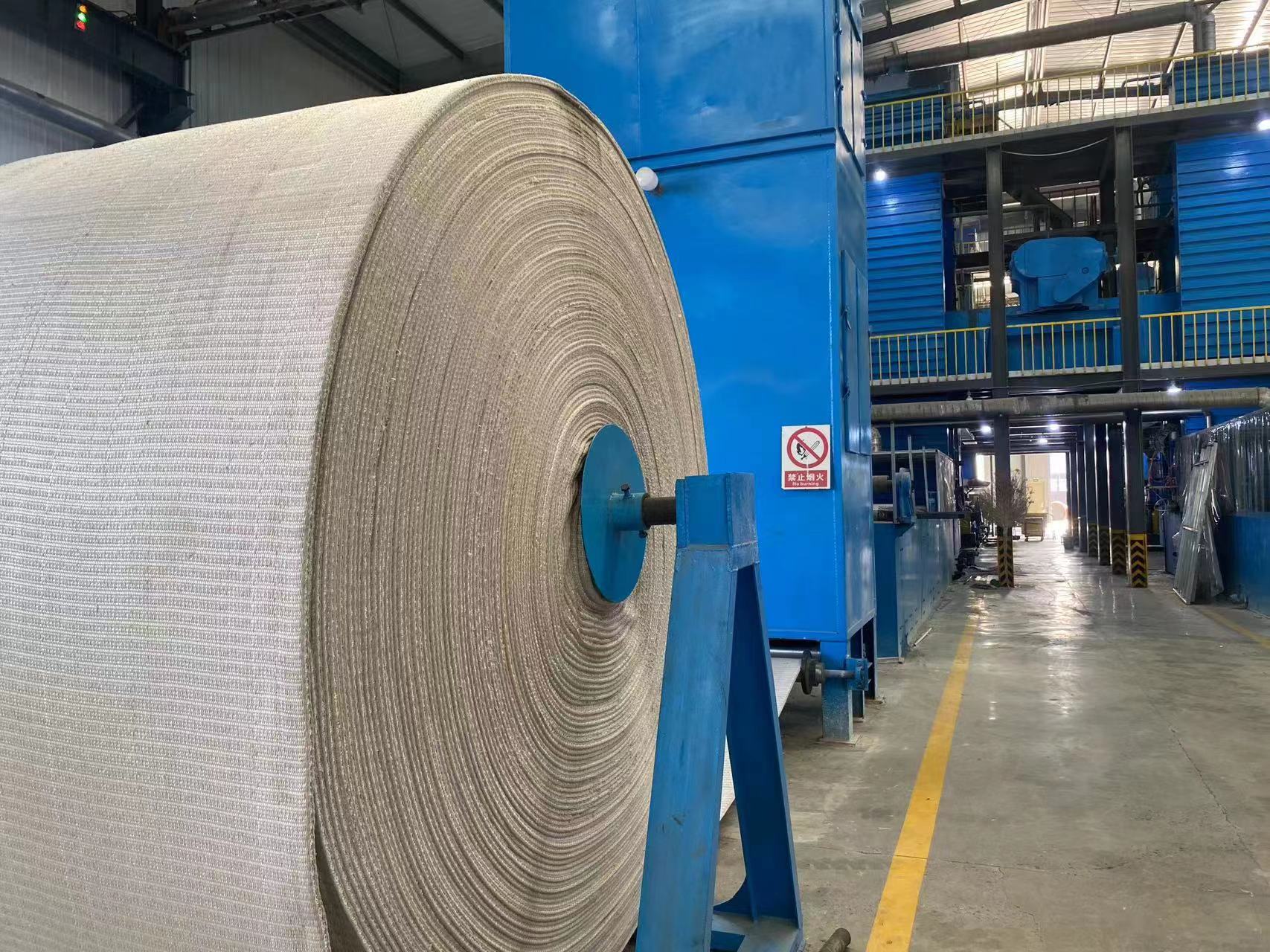

Multi-Ply Textile Construction
EP (polyester-nylon) or NN (nylon-nylon) fabric provides excellent strength, flexibility, and impact resistance for various underground mining applications.
International Standards Compliance
Certified for underground coal mines in Australia and South Africa, meeting AS 1334.13 and SANS 1366 standards for flame retardant performance.
Cost-Effective Solution
Lower initial investment compared to steel cord belts while maintaining excellent flame retardant properties and suitable strength for medium-distance transport.
Easy Maintenance & Repair
Simpler splicing procedures and repair processes reduce downtime and maintenance costs, making it ideal for operations with limited technical resources.
Gallery Burning Test Results (Test Piece S10063 GF-1)
Your Reliable MT 914 Textile EP Conveyor Belt Manufacturer
Solid Woven Structure: Flame Resistant, Anti-Static, Safe and Efficient
Advanced engineering delivers superior safety performance through integrated solid woven construction that outperforms conventional belts in the most demanding underground mining environments.
Integrated Solid Woven Core
High-strength polyester warp threads interwoven with nylon weft create a unified fabric structure that prevents delamination and eliminates dangerous belt splitting failures common in ply construction
Superior Tear Resistance
Solid woven design delivers exceptional longitudinal tear strength with minimal elongation under load, maintaining belt tracking and preventing catastrophic rips that cause extended production shutdowns

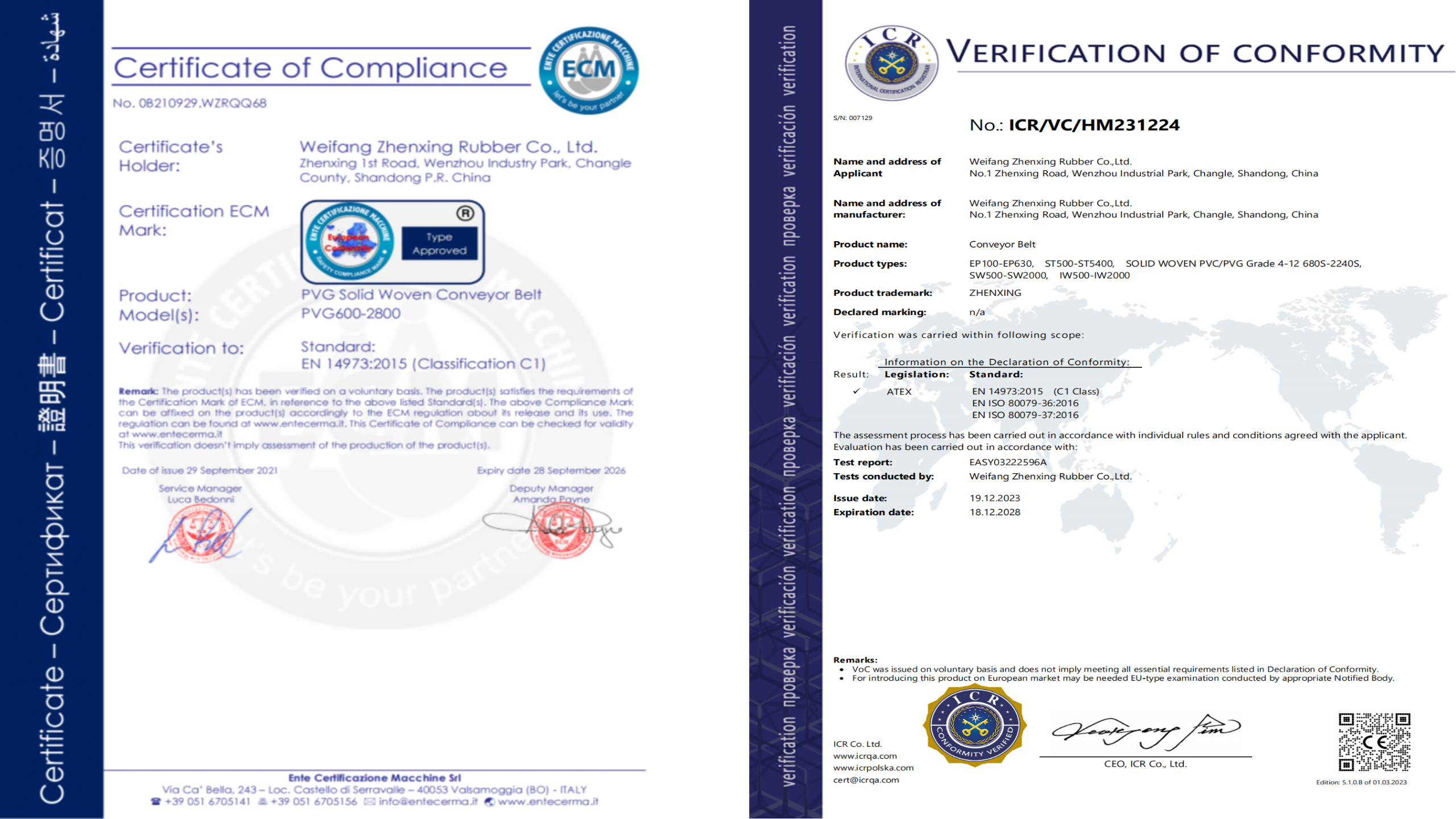

Certified Flame Resistance
Exceeds EN14973 and MT914 international mining safety standards with self-extinguishing properties within 3 seconds, critical for preventing fire propagation in underground coal mining operations where dust creates explosion hazards
Strong Joint Performance
Vulcanized splices achieve 90%+ of belt rated strength through finger-joint configuration optimized for solid woven carcass, ensuring reliable joints that eliminate premature splice failures and reduce maintenance interventions
Usage & Maintenance Recommendations
Proper installation, operation, and maintenance practices maximize belt service life and ensure continuous safe performance in underground mining environments while minimizing unplanned downtime and replacement costs.
Pre-Installation Inspection
Thoroughly inspect all conveyor components including drive drums, tail drums, idler rollers, and support structure before installing new belt. Verify drum alignment within 2mm tolerance, check roller rotation freedom, and confirm proper frame leveling to prevent premature belt wear and tracking issues that could reduce service life by 40% or more.
Load Management
Never exceed belt rated capacity as overloading causes excessive elongation, premature carcass fatigue, and increased risk of catastrophic failure. Maintain material loading at center of belt width to prevent edge wear and tracking deviation. Monitor material feed rate and distribution continuously to protect belt integrity and extend operational lifespan while ensuring safe underground mining operations.
Tracking Correction
Address belt misalignment immediately upon detection to prevent edge damage, cover wear, and potential splice failure. Adjust idler positions in small increments, making corrections gradually over 3-4 meter sections. Verify belt tracking under full load conditions as empty belt behavior differs from loaded operation. Persistent tracking issues indicate underlying mechanical problems requiring immediate resolution to prevent serious belt damage.
Damage Repair Protocol
Execute immediate repairs for cover cuts, gouges, or punctures to prevent moisture ingress that accelerates carcass deterioration and compromises flame resistance. Use compatible cold-bonding compounds for minor damage under 50mm, or hot vulcanized patches for larger damaged areas. Monitor repair areas closely during initial operation to verify proper adhesion and prevent repair failure that could trigger extended production shutdowns.
Splice Monitoring
Conduct intensive splice inspection during first 48 hours of operation, checking for delamination signs, cover separation, or unusual heating that indicates insufficient vulcanization or improper installation technique. Perform weekly visual inspections of splice area for first three months, then monthly thereafter. Document splice condition systematically to identify developing issues before they progress to catastrophic failure requiring emergency repair interventions.
Performance Documentation
Maintain comprehensive records of belt installation date, operating hours, material tonnage conveyed, maintenance activities, and damage incidents. This data enables accurate service life prediction, optimal replacement timing, and continuous improvement of conveyor system performance. Systematic documentation supports warranty claims and provides valuable insights for optimizing future belt specifications and operating parameters.
Download comprehensive maintenance manual and inspection checklists
Why Choose Our
Solid Woven (PVC / PVG)
Conveyor Belt?

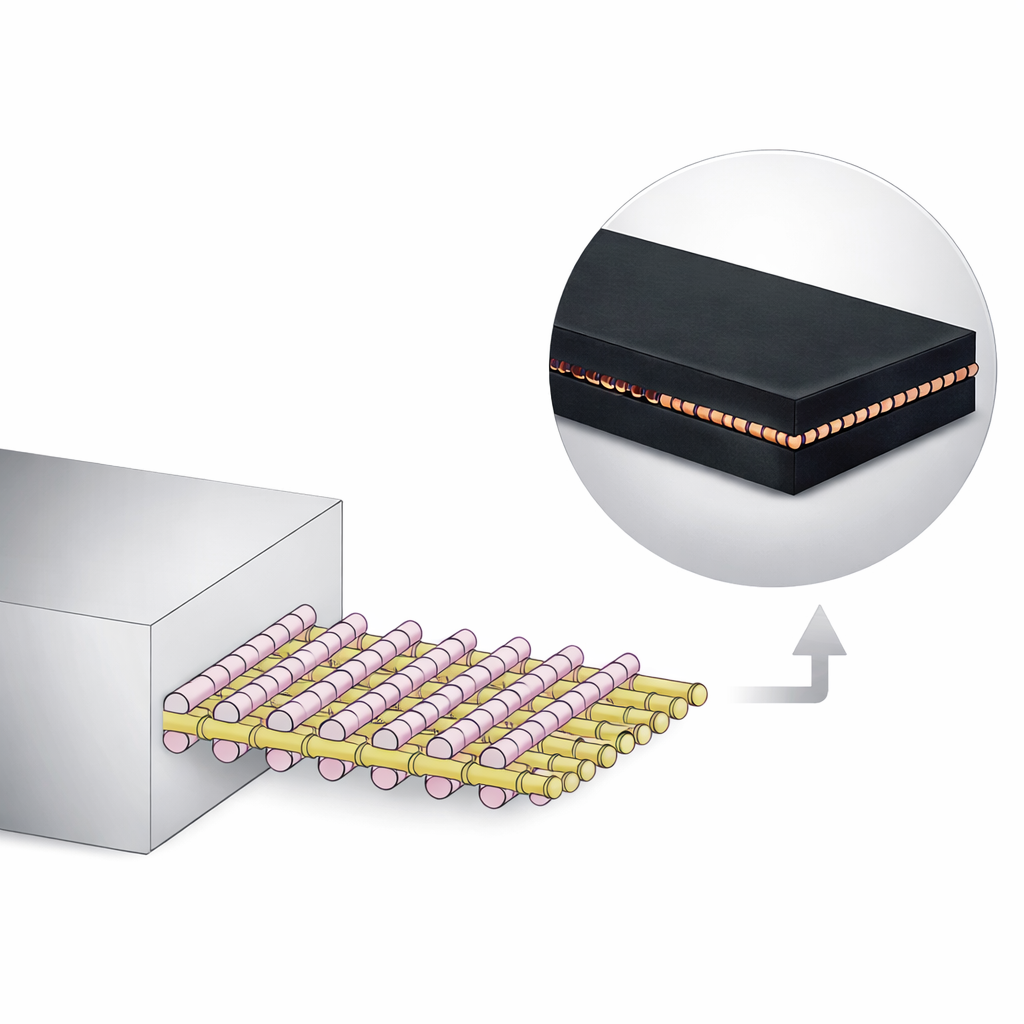

Aramid Flame Retardant Conveyor Belt
Revolutionary lightweight design with superior performance and energy efficiency
Superior Impact Resistance
Aramid fiber reinforcement provides exceptional impact absorption, extending belt life by 40% compared to traditional textile belts. The material's unique molecular structure dissipates impact energy efficiently, reducing damage from falling materials and preventing core damage in high-impact loading zones.
Exceptional Tear Resistance
The high tensile strength of aramid fibers (3500 N/mm) prevents tear propagation even under extreme stress conditions. Once a small tear occurs, the aramid structure prevents it from spreading across the belt width, significantly reducing unplanned downtime and emergency repair costs in underground mining operations.
Energy Efficiency & Lightweight Design
30% lighter than equivalent steel cord belts, resulting in 20% reduction in power consumption and lower motor requirements. The reduced weight decreases friction, extends component life, and lowers operational costs while maintaining superior strength-to-weight ratio. Inherent flame retardant properties ensure safety without additional treatments.

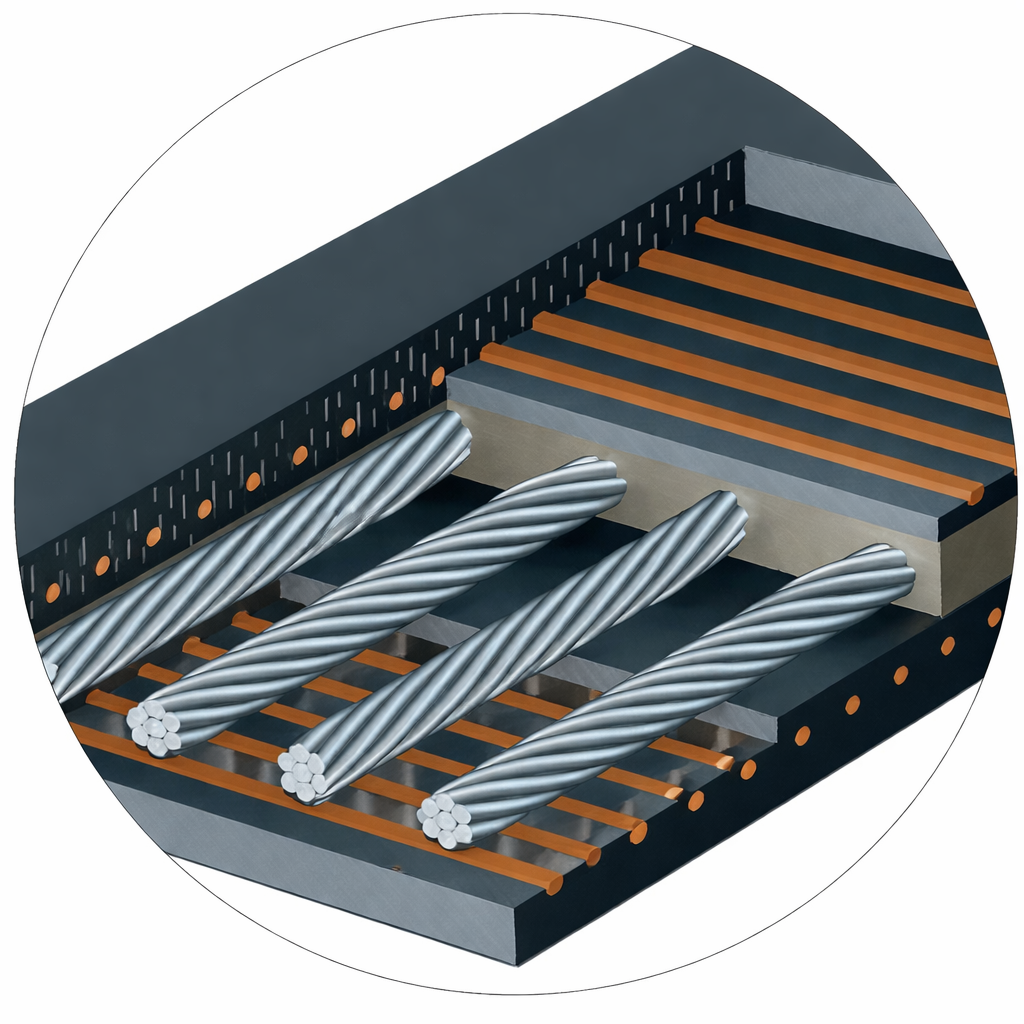

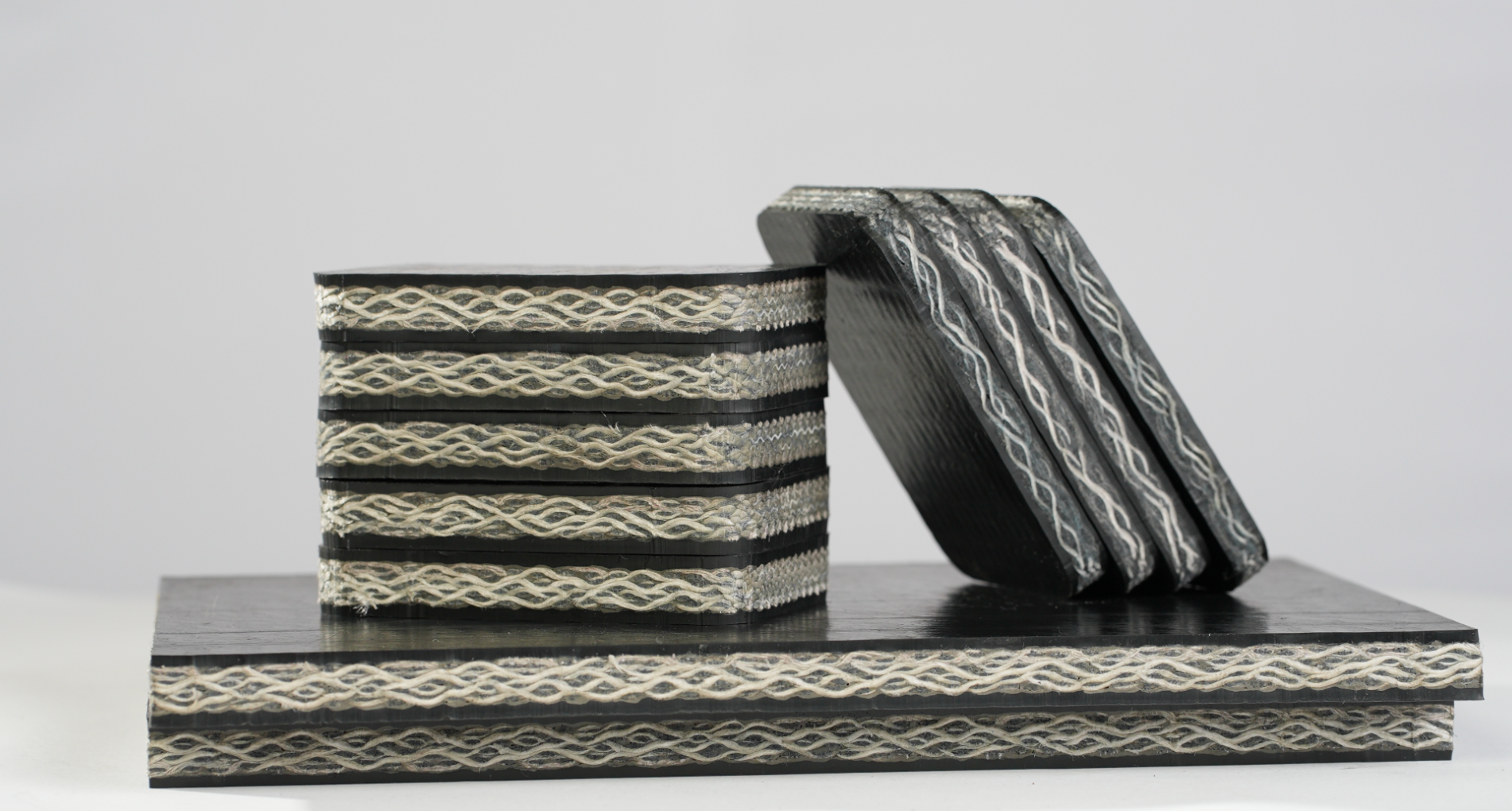

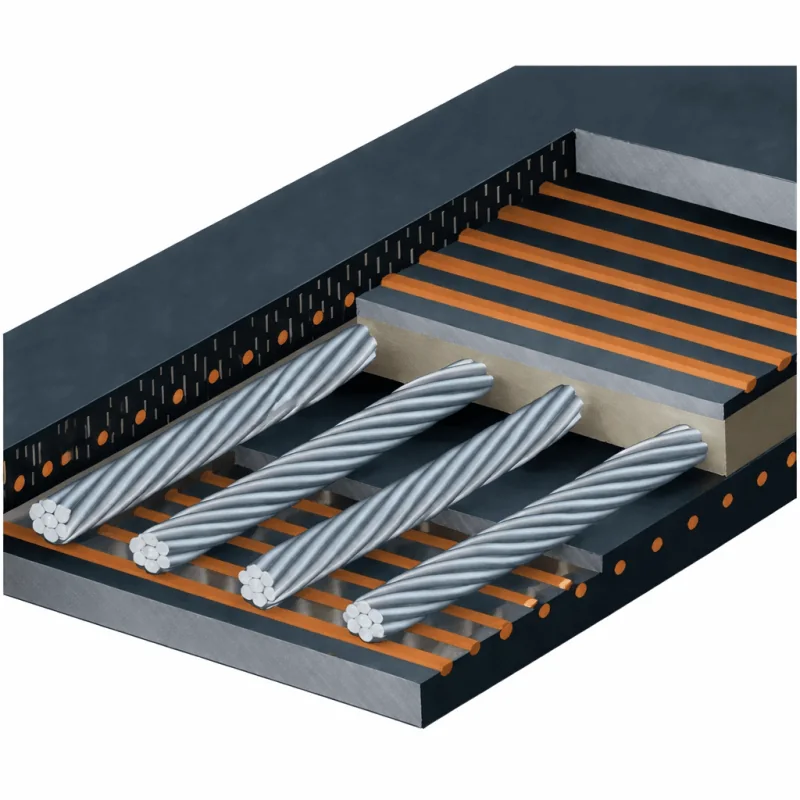

Conveyor Belt Structure Analysis
Precision-engineered multi-layer design for maximum performance and safety
Upper Cover Rubber (6-12mm)
High-abrasion resistant rubber compound protects the reinforcement core from material impact and wear. Anti-static formulation prevents static electricity buildup, meeting surface resistance requirements ≤ 3×10⁹Ω.
Reinforcement Core (500-4500 N/mm)
Steel cord, textile fabric, or aramid fiber provides tensile strength and dimensional stability. Multi-ply construction ensures load distribution and prevents elongation under tension.
Lower Cover Rubber (3-8mm)
Friction-resistant compound designed for pulley contact, maintaining flexibility while providing adequate protection. Formulated for extended fatigue resistance under continuous bending cycles.
Adhesion Layer System
Advanced bonding system ensures molecular-level adhesion between rubber and reinforcement. Prevents delamination under dynamic stress, temperature variations, and moisture exposure common in underground mining.
Modular Design Advantages
Standard Specifications & Customization Options
Comprehensive range of specifications to match your exact operational requirements
Standard Specifications
Customization Options
Why Choose ZHENXING
40+ years of excellence in conveyor belt manufacturing with proven track record
Government Certified Manufacturer
Officially designated by Chinese government as qualified steel cord flame retardant belt manufacturer for underground coal mining. Meets strictest national safety and quality standards with continuous regulatory oversight.
State-of-the-Art Testing Lab
Comprehensive in-house testing facility equipped with torch flame testers, drum friction apparatus, gallery burning chambers, and material analysis equipment. Every belt batch undergoes rigorous quality verification before shipment.

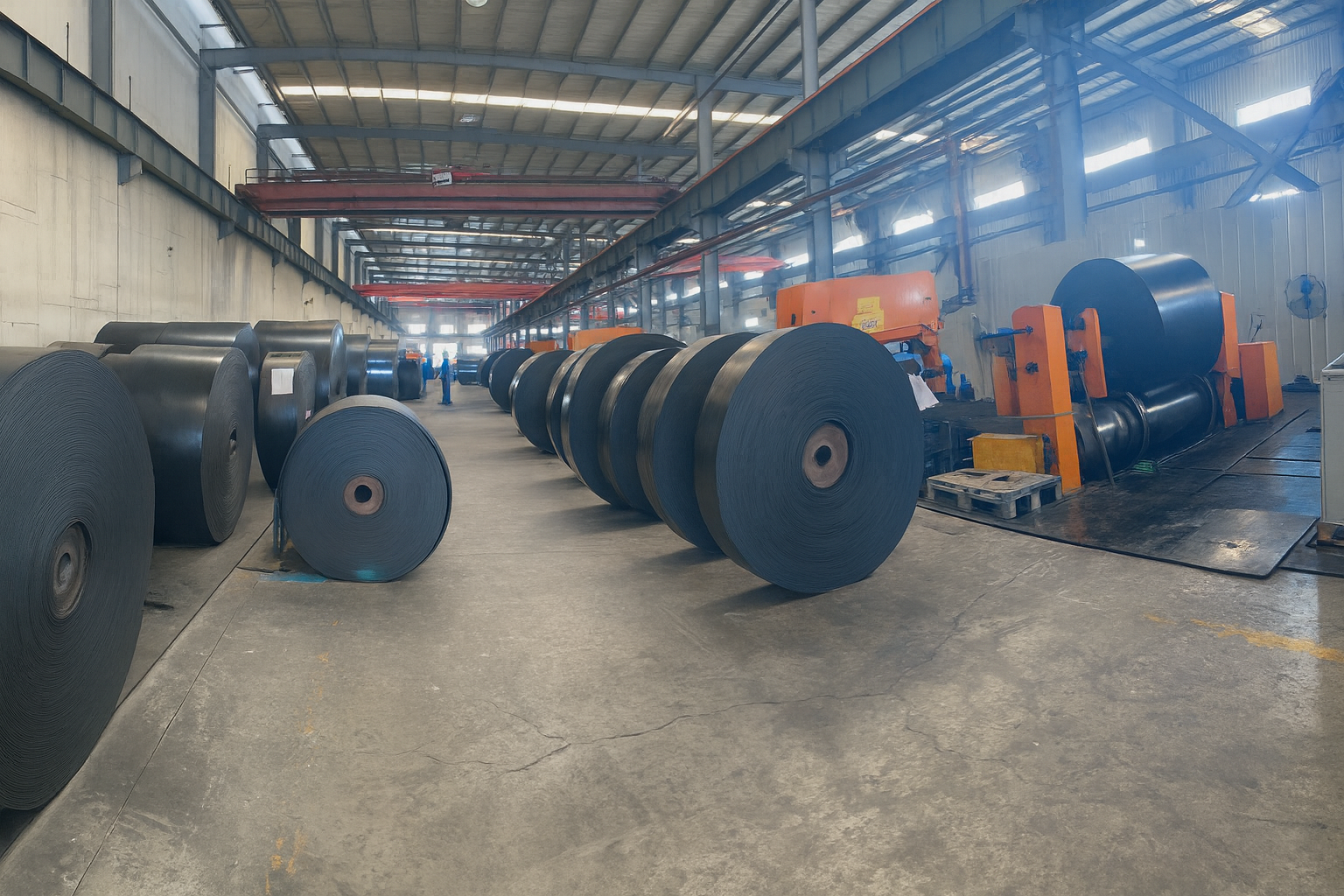

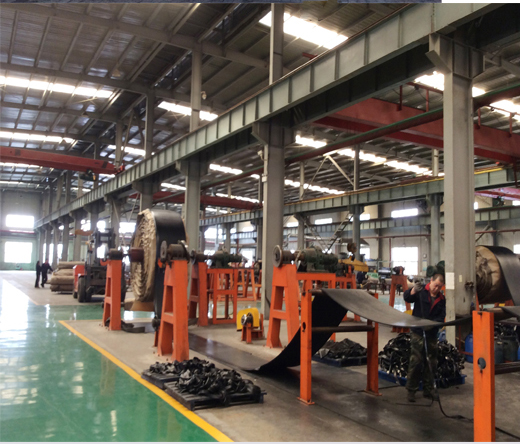

Advanced Manufacturing
Modern production lines with automated calendering, precision vulcanization, and computer-controlled quality monitoring. ISO 9001 certified manufacturing processes ensure consistent product quality and dimensional accuracy.
R&D Innovation Center
Dedicated research team developing next-generation materials and technologies. Continuous innovation in flame retardant compounds, reinforcement structures, and energy-efficient designs to stay ahead of industry requirements.
Comprehensive Support
Technical consultation, on-site installation guidance, maintenance training, and 24/7 customer service. Our engineering team provides customized solutions and ongoing support throughout the belt's operational life.
A Safety Choice, Not a Cost Choice
In underground coal mining, conveyor belts are a critical fire-control component. Choosing ZHENXING means choosing proven flame retardant performance, regulatory compliance, and long-term operational safety.
5-Step Purchase Process
From initial inquiry to installation support - we guide you every step of the way
Initial Consultation
Share your requirements: belt width, length, operating conditions, and specific challenges. Our team analyzes and recommends the optimal solution.
Technical Proposal
Receive detailed technical specifications, product recommendations, pricing, and delivery timeline within 24-48 hours of inquiry.
Sample & Testing
Optional sample provision for your testing and approval. We provide test reports and certifications demonstrating compliance with required standards.

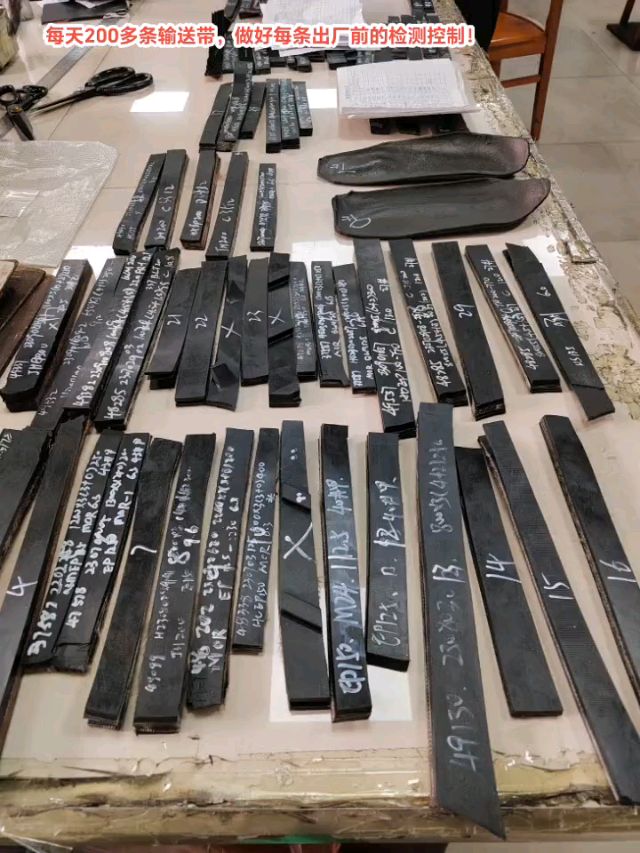

Production & QC
Manufacturing begins with regular progress updates. Comprehensive quality control at every stage ensures product meets specifications before shipment.

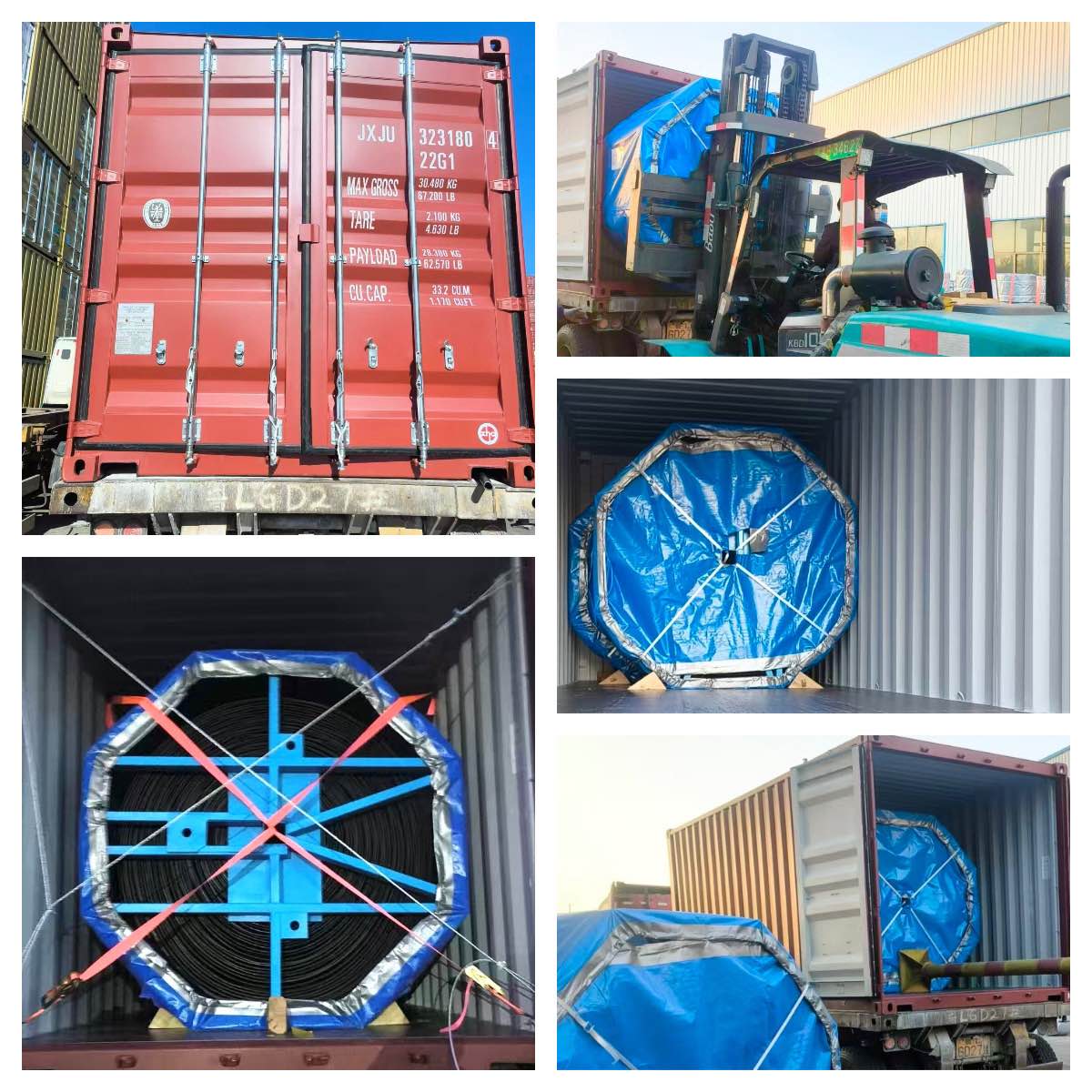

Delivery & Support
Coordinated logistics with tracking information. Installation guidance, technical training, and ongoing support ensure successful implementation.
