Oil Resistant
Conveyor Belt
Oil Resistant Fabric Conveyor Belt for Animal Oil, Vegetable Oil and Mineral Oil Applications
Oil Resistant Conveyor Belt for Industrial Oil Environments
Our Oil Resistant Conveyor Belt is engineered with high-performance NBR rubber compounds that resist oil absorption and maintain mechanical integrity even under continuous exposure to animal oils, vegetable oils, and mineral oils. Designed for demanding industrial applications, this belt ensures stable conveying performance, longer service life, and reduced maintenance costs, helping your production line operate efficiently.
Oil Resistant Conveyor Belt Structure
Every layer is engineered with purpose — from the oil-barrier cover to the tensile fabric core — ensuring the belt performs as a unified system under continuous oily and abrasive conditions.
- Top and bottom cover thickness customized to your material weight and abrasion level
- Number of fabric plies selected to match belt width and operating tension
- Full belt width customization — from narrow feeding belts to wide bulk transfer belts
- Consistent vulcanization quality through automated production lines
- Available with edge protection for high-humidity or submerged environments
Core Features & Benefits
When oily materials meet standard rubber, the belt loses — swelling, weakening, and failing ahead of schedule. Our oil resistant belts are formulated to outlast the harshest oil-laden environments.
NBR rubber compound is chemically compatible with animal fat, vegetable oil, and mineral oil — preventing swelling and surface degradation that cracks ordinary belts within months.
Minimal rubber swelling means belt width, thickness, and tension remain stable throughout service life — reducing misalignment, spillage, and unexpected tracking issues on your system.
Tensile strength and elongation are maintained well above operating minimums even after extended oil contact — protecting your investment in belt replacement and scheduled maintenance.
COR, MOR, OR, and HOR grades cover operating temperatures from −35°C to 120°C — giving you the exact compound for cold storage lines, ambient processing, or hot asphalt conveying.
EP or NN fabric options, variable ply count, and adjustable cover thickness allow the belt to be precisely tailored to your conveyor layout, load profile, and pulley configuration.
By resisting the degradation mechanisms that shorten standard belt life in oily environments, our belts reduce replacement frequency — lowering your total cost of ownership per tonne conveyed.
Cover Grades of Oil Resistant Conveyor Belt
Not all oils — or operating conditions — are the same. We offer four distinct cover grades so you select the exact compound your application demands, avoiding over-spec cost or under-spec failure.
| Grade | Rubber Compound | Temperature Range | Suitable Oil Type | Primary Application |
|---|---|---|---|---|
| COR | NBR / BR | −35°C to 70°C | Animal & Vegetable Oil | Cold region oily product conveying |
| MOR | NBR / SBR | −20°C to 70°C | Animal & Vegetable Oil | General grain, feed & oilseed processing |
| OR | NBR | 20°C to 70°C | Mineral Oil | Mineral oil-contaminated bulk materials |
| HOR | NBR | 20°C to 120°C | Hot Asphalt / Mineral Oil | Hot asphalt plants & high-temperature lines |
Performance Specifications
Procurement teams and engineers demand measurable data, not marketing claims. Our oil resistant belts are manufactured to verified physical performance standards — tested to specification before leaving the production line.
| Cover Grade | Tensile Strength | Elongation at Break | Abrasion Loss | Rubber Compound | Temp. Range |
|---|---|---|---|---|---|
| LO | ≥ 14.0 MPa | ≥ 350% | ≤ 200 mm³ | NBR / SBR / BR | −35°C to 70°C |
| DO | ≥ 16.0 MPa | ≥ 350% | ≤ 160 mm³ | NBR | −20°C to 120°C |
Custom Specification Available: Belt width, ply number, top cover thickness, and bottom cover thickness can all be specified to match your conveyor design. Minimum order quantities apply — contact our technical team for a custom production proposal.
How to Choose the Right Oil Resistant Conveyor Belt
Specifying the wrong grade means premature failure — specifying too high wastes budget. Follow these five steps to identify the correct grade and construction for your operation.
Why Choose Our Factory
Sourcing directly from the manufacturer eliminates middlemen, compresses lead times, and gives you direct access to engineering support — from initial specification through to production QC sign-off.
Trading through distributors adds cost without adding value. Buying directly from our factory means lower unit pricing, faster responses, and direct access to the engineers who build your belt.
Our long-term relationships with qualified NBR rubber suppliers ensure consistent compound quality across every production run — critical for belts that must meet certified performance standards.
Each belt passes dimensional checks, tensile and elongation tests, and oil swell testing before dispatch — with full QC documentation available upon request for auditing or project specifications.
Standard stock is available for fast turnaround, and our production line accommodates custom widths, ply counts, cover gauges, and branded packaging — ideal for OEM distributors and project integrators.
We export to Southeast Asia, the Middle East, Africa, and Europe — with experienced freight coordination, export documentation, and packaging optimised to protect belts in ocean transit.
Receive a detailed quotation within 24 hours of inquiry, supported by our technical team who can review conveyor drawings, recommend grade and construction, and assist with belt joint specifications.
Production Line
Quality Inspection

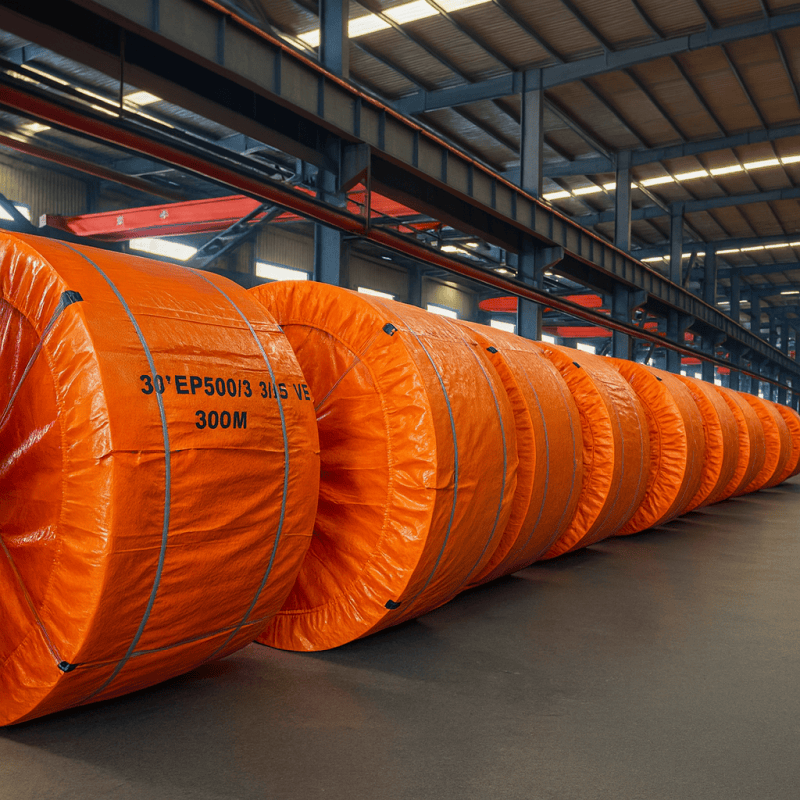

Export & Logistics
Let's Build Reliable Conveyor Solutions Together
Send us your specifications or project details — our engineers will analyze your requirements in 24h
