Steel Cord Conveyor Belt
Proven in Mining, Cement, and Power Plants Worldwide
Steel Cord Conveyor Belts
Engineered for Extreme Performance
- Ideal for long-distance, large-capacity and high tensile strength lines
- Low elongation allows short take-up strokes
- Small diameter pulleys may be used
- Superior impact and shock resistance

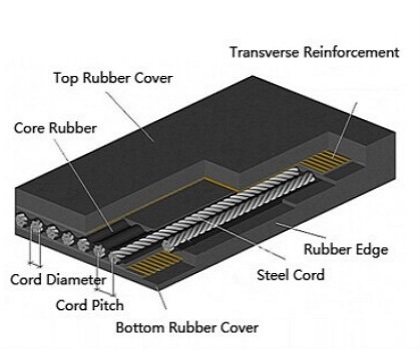

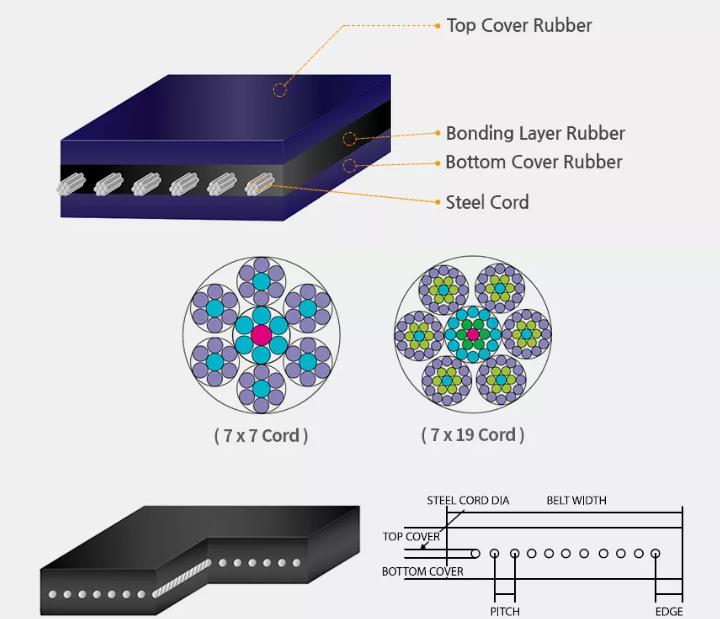

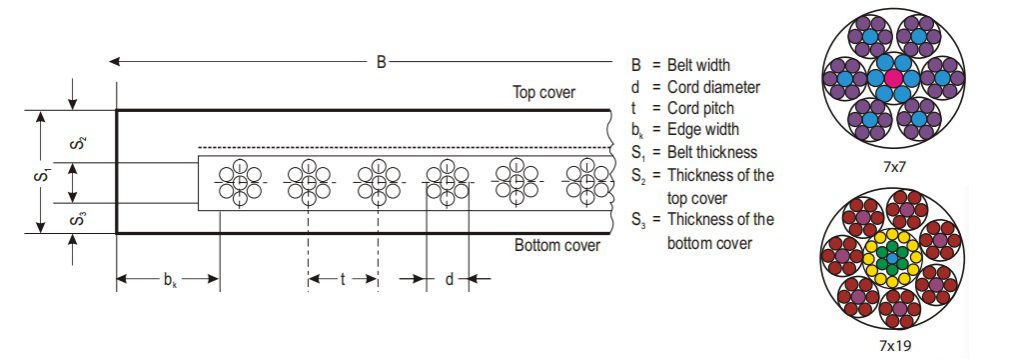

Steel Cord Conveyor Belt Technical Specifications
Comprehensive range of steel cord conveyor belts from ST630 to ST7500, covering all industrial strength requirements with precise engineering parameters.
| Parameter | ST630 | ST800 | ST1000 | ST1250 | ST1600 | ST2000 | ST2500 | ST3150 | ST3500 | ST4000 | ST4500 | ST5000 | ST5400 | ST6300 | ST7000 | ST7500 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Max. Breaking Strength (N/mm) | 630 | 800 | 1000 | 1250 | 1600 | 2000 | 2500 | 3150 | 3500 | 4000 | 4500 | 5000 | 5400 | 6300 | 7000 | 7500 |
| Max. Cord Diameter (mm) | 3 | 3.5 | 4 | 4.5 | 5 | 6 | 7.5 | 8.1 | 8.6 | 8.9/9.1 | 9.7 | 10.9 | 11.3 | 12.3 | 13.5 | 15.0 |
| Cord Pitch (mm) | 10 | 10 | 12 | 12 | 12 | 12 | 15 | 15 | 15 | 15/17 | 16 | 17 | 17 | 18 | 19 | 21 |
| Top Cover Thickness (mm) | 5 | 5 | 6 | 6 | 6 | 8 | 8 | 8 | 8 | 8/8 | 8 | 8.5 | 9 | 10 | 10 | 10 |
| Bottom Cover Thickness (mm) | 5 | 5 | 6 | 6 | 6 | 8 | 8 | 8 | 8 | 8/8 | 8 | 8.5 | 9 | 10 | 10 | 10 |
| Unit Weight (kg/m²) | 18 | 19.5 | 21.5 | 22.2 | 26.1 | 33.1 | 35.3 | 41.1 | 45 | 45/45 | 51 | 59 | 62 | 65 | 63.7 | 68.7 |
| Number of Cords by Belt Width | ||||||||||||||||
| Width 800mm | 75 | 75 | 63 | 63 | 63 | 63 | 50 | 50 | 50 | — | — | — | — | — | — | — |
| Width 1000mm | 95 | 95 | 79 | 79 | 79 | 79 | 64 | 64 | 64 | 64/65 | 59 | 55 | 55 | 54 | 49 | 45 |
| Width 1200mm | 113 | 113 | 94 | 94 | 94 | 94 | 76 | 76 | 77 | 77/68 | 71 | 66 | 66 | 63 | 59 | 54 |
| Width 1400mm | 133 | 133 | 111 | 111 | 111 | 111 | 89 | 89 | 90 | 90/79 | 84 | 78 | 78 | 74 | 69 | 63 |
| Width 1600mm | 151 | 151 | 126 | 126 | 126 | 126 | 101 | 101 | 104 | 104/91 | 96 | 90 | 90 | 85 | 80 | 72 |
| Width 1800mm | — | 171 | 143 | 143 | 143 | 143 | 114 | 114 | 117 | 117/103 | 109 | 102 | 102 | 96 | 90 | 82 |
| Width 2000mm | — | — | 159 | 159 | 159 | 159 | 128 | 128 | 130 | 130/114 | 121 | 113 | 113 | 107 | 101 | 91 |
| Width 2200mm | — | — | — | — | — | 176 | 141 | 141 | 144 | 144/125 | 134 | 125 | 125 | 118 | 111 | 100 |
| Width 2400mm | — | — | — | — | — | 193 | 155 | 155 | 157 | 157/137 | 146 | 137 | 137 | 129 | 121 | 109 |
| Width 2600mm | — | — | — | — | — | 209 | 168 | 168 | 170 | 170/148 | 159 | 149 | 149 | 140 | 131 | 119 |
| Width 2800mm | — | — | — | — | — | 230 | 184 | 184 | 184 | 184/160 | 171 | 161 | 161 | 151 | 142 | 129 |
Need help selecting the right specification for your project?
Talk to Our SpecialistsInternational Quality Standards
Our steel cord conveyor belts meet or exceed all major international standards, ensuring consistent quality and performance for global applications.
| Parameter | JIS-P | JIS-G | JIS-S | JIS-A | JIS-L | JIS-D | JIS-H |
|---|---|---|---|---|---|---|---|
| Tensile Strength (MPa) | >8 | >14 | >18 | >14 | >15 | >18 | >24 |
| Elongation (%) | >300 | >400 | >450 | >400 | >350 | >400 | >450 |

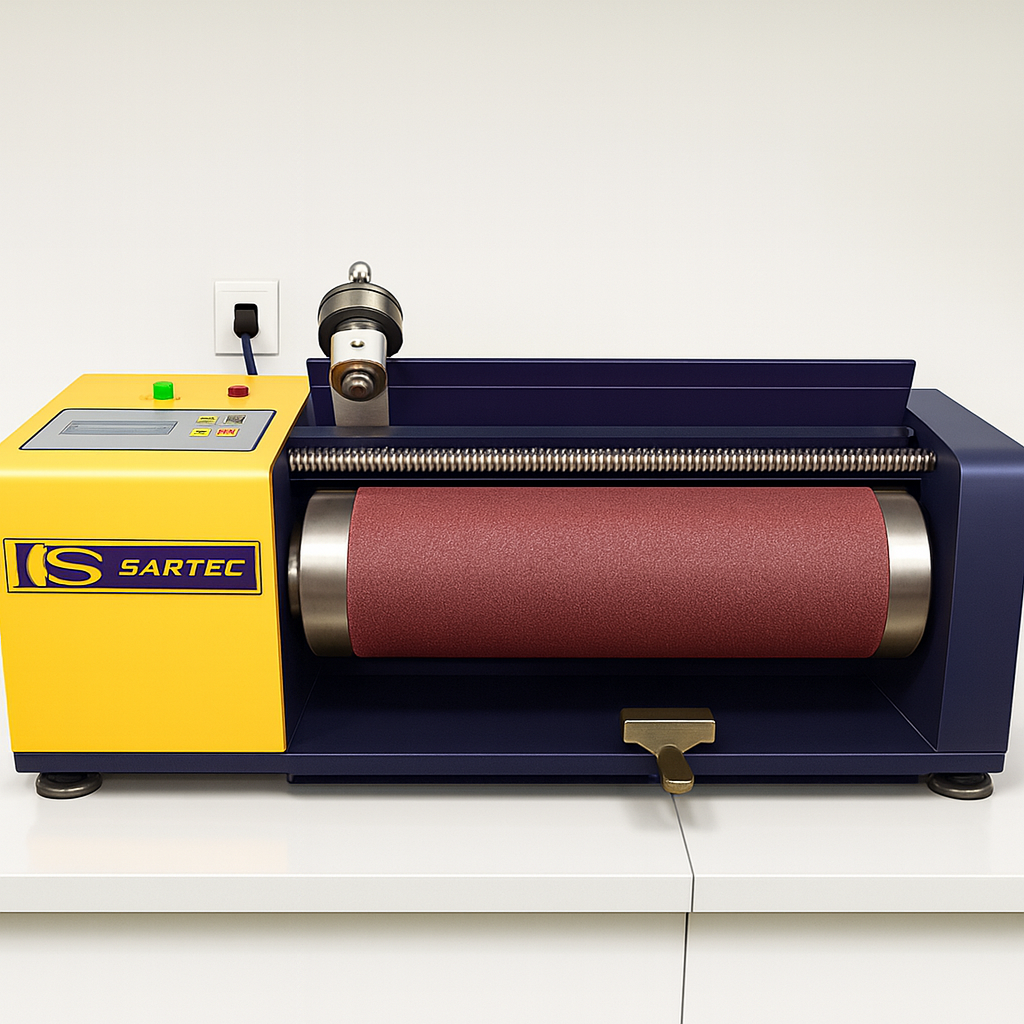

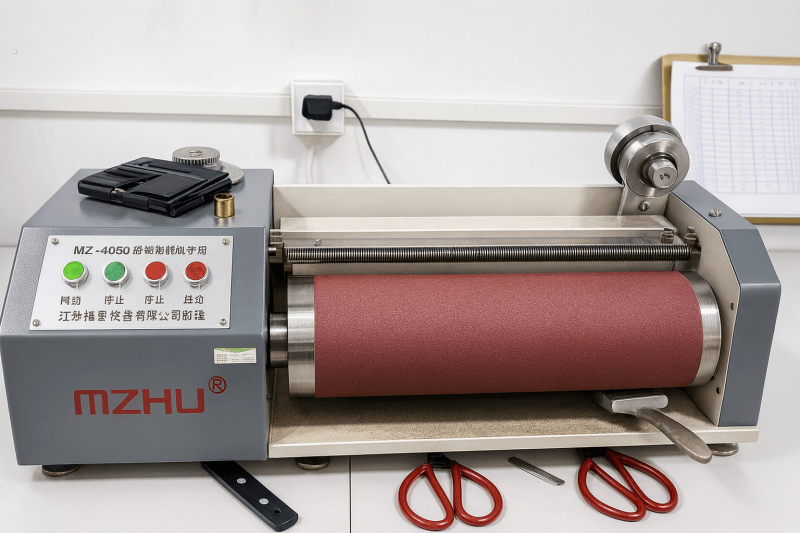

| Abrasion (mm³) | <400 | <250 | <200 | <150 | <200 | <100 | <120 |
| Parameter | DIN-W | DIN-X | DIN-Y | DIN-Z |
|---|---|---|---|---|
| Tensile Strength (MPa) | >18 | >25 | >20 | >15 |
| Elongation (%) | >400 | >450 | >400 | >350 |
| Abrasion (mm³) | <90 | <120 | <150 | <250 |
| Parameter | ISO-H | ISO-D | ISO-L |
|---|---|---|---|
| Tensile Strength (MPa) | 24 | 18 | 15 |
| Elongation (%) | 450 | 400 | 350 |
| Abrasion (mm³) | 120 | 100 | 200 |
| Parameter | AS-A | AS-E | AS-F | AS-M | AS-N | AS-S |
|---|---|---|---|---|---|---|
| Tensile Strength (MPa) | 17 | 14 | 14 | 24 | 17 | 14 |
| Elongation (%) | 400 | 300 | 300 | 450 | 400 | 300 |
| Abrasion (mm³) | 70 | — | — | 125 | 200 | 250 |
| Parameter | BS-N17 | BS-M24 |
|---|---|---|
| Tensile Strength (MPa) | >17 | >24 |
| Elongation (%) | >400 | >450 |
| Change Rate of TS (%) | ±25 | ±25 |
| Change Rate of EL (%) | ±25 | ±25 |
| Parameter | RMA-1 | RMA-2 |
|---|---|---|
| Tensile Strength (MPa) | >17 | >14 |
| Elongation (%) | >400 | >400 |
| Change Rate of TS (%) | ±25 | ±25 |
| Change Rate of EL (%) | ±25 | ±25 |
Need certification documents or quality test reports?
Request Documentation

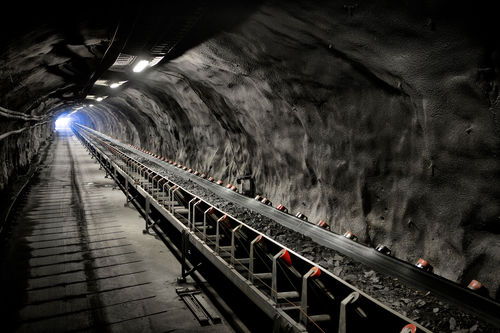

Steel Cord Conveyor Belts for Underground Coal Mining
Certified to MT668-2008, GB 21352-2008 & EN 14973 Standards
- Fire resistant with self-extinguishing capability within seconds
- Anti-static surface resistance ≤300 MΩ for explosive environments
- Explosion proof design safe for methane-rich atmospheres
- Superior impact resistance for heavy material handling
Technical Parameters & Specifications
Comprehensive specifications from ST630 to ST7500 grade systems, engineered to meet diverse industrial requirements
Fire Resistant Steel Cord Conveyor Belts For Coalmine
|
Belt Tension Rating
Technical Items
|
ST630 | ST800 | ST1000 | ST1250 | ST1600 | ST2000 | ST2500 | ST2800 | ST3150 | ST3500 | ST4000 | ST4500 | ST5000 | ST5400 | ST6300 | ST7000 | ST7500 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Min. Breaking Load | 630 | 800 | 1000 | 1250 | 1600 | 2000 | 2500 | 2800 | 3150 | 3500 | 4000 | 4500 | 5000 | 5400 | 6300 | 7000 | 7500 |
| Max. Cord Dia | 3.0 | 3.5 | 4.0 | 4.3 | 5.0 | 6.0 | 7.2 | 7.5 | 8.0 | 8.6 | 8.9 | 9.7 | 10.9 | 11.3 | 12.8 | 13.5 | 13.5 |
| Supplied Cord Dia | 2.8 | 3.0 | 3.6 | 4.0 | 4.4 | 5.0 | 6.6 | 6.9 | 7.3 | 7.7 | 8.2 | 9.0 | 9.8 | 10.2 | 12.4 | 12.8 | 13.2 |
| Cord pitch | 10 | 10 | 12 | 12 | 12 | 12 | 15 | 15 | 15 | 15 | 15 | 16 | 17 | 17 | 20 | 19 | 21 |
| Rubber Cover Of Top And Bottom | 5+4 | 5+5 | 6+4 | 6+4 | 6+4 | 8+4 | 8+5 | 8+5 | 8+5.5 | 8+6 | 8+6.5 | 8+7 | 8+7.5 | 9+8 | 10+10 | 10+10 | 10+10 |
| Total Thickness | 11.8 | 12.0 | 13.6 | 14.0 | 14.4 | 17.0 | 19.6 | 19.9 | 20.8 | 21.7 | 22.7 | 24.0 | 25.8 | 27.2 | 32.4 | 32.8 | 33.2 |
| Reference Weight | 18.5 | 19.0 | 21.5 | 23.0 | 24.5 | 29.5 | 35.5 | 37.0 | 39.0 | 41.5 | 44.5 | 48.0 | 52.0 | 55.0 | 65.5 | 70.0 | 70.0 |
| Belt width | Number Of Cords | ||||||||||||||||
| 800 | 75 | 75 | 63 | 63 | 63 | 63 | 50 | 50 | 50 | 50 | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
| 1000 | 95 | 95 | 79 | 79 | 79 | 79 | 64 | 64 | 64 | 64 | 64 | 59 | 55 | 55 | 48 | N/A | N/A |
| 1200 | 113 | 113 | 94 | 94 | 94 | 94 | 76 | 76 | 76 | 77 | 77 | 71 | 66 | 66 | 58 | 59 | 54 |
| 1400 | 133 | 133 | 111 | 111 | 111 | 111 | 89 | 89 | 89 | 90 | 90 | 84 | 78 | 78 | 68 | 69 | 63 |
| 1600 | 151 | 151 | 126 | 126 | 126 | 126 | 101 | 101 | 101 | 104 | 104 | 96 | 90 | 90 | 78 | 80 | 72 |
| 1800 | 171 | 171 | 143 | 143 | 143 | 143 | 114 | 114 | 114 | 117 | 104 | 109 | 102 | 102 | 88 | 90 | 82 |
| 2000 | 196 | 196 | 159 | 159 | 159 | 159 | 128 | 128 | 128 | 130 | 104 | 121 | 113 | 113 | 98 | 101 | 91 |
| 2200 | 216 | 216 | 176 | 176 | 176 | 176 | 141 | 141 | 141 | 144 | 104 | 134 | 125 | 125 | 108 | 111 | 100 |
| 2400 | 236 | 236 | 193 | 193 | 193 | 193 | 155 | 155 | 155 | 157 | 104 | 146 | 137 | 137 | 118 | 121 | 109 |
| 2600 | 256 | 256 | 209 | 209 | 209 | 209 | 168 | 168 | 168 | 170 | 104 | 159 | 149 | 149 | 128 | 131 | 119 |
| 2800 | 276 | 276 | 230 | 230 | 230 | 230 | 184 | 184 | 184 | 184 | 104 | 171 | 161 | 161 | 138 | 142 | 129 |
| 3000 | 296 | 296 | 247 | 247 | 247 | 247 | 198 | 198 | 198 | 198 | 104 | 185 | 174 | 174 | 148 | 152 | 138 |
| 3200 | 316 | 316 | 264 | 264 | 264 | 264 | 211 | 211 | 211 | 211 | 104 | 198 | 186 | 186 | 158 | 162 | 147 |
Need help selecting the right specification for your project?
Consult Our EngineersEU EN 14973 vs China GB Standards Comparison
Comprehensive comparison of fire-resistant safety grades for underground steel cord conveyor belts between European and Chinese national standards.
| Grade | Application | Surface Electrical Resistance EN ISO 284 |
Drum Friction Test EN 1554:1998, Method B2a |
Alcohol Burner Test EN ISO 340 |
Propane Burner Test (Flame Spread Method) |
|||
|---|---|---|---|---|---|---|---|---|
| Flame Phenomenon |
Non-Flame Phenomenon |
Max Drum Surface Temp. °C |
6 Specimens Total (S) |
Any Single Specimen Max (S) |
||||
| A | Grade A Fire-Resistant: For general use where the only hazard is limited escape routes and means. | ≤300 MΩ | None | Allowed | Unlimited | 45 | 15 | EN 12881-1:2005, Method A. If no complete combustion occurs, use Method B or C. |
| B1 | Grade B1 Fire-Resistant: For limited escape routes and means in potentially explosive gas environments without auxiliary safety facilities. | ≤300 MΩ | None | None | 450 | 45 | 15 | EN 12881-1:2005, Method A. If no complete combustion occurs, use Method B or C. |
| B2 | Grade B2 Fire-Resistant: For limited escape routes and means in potentially explosive gas environments with auxiliary safety facilities available. | ≤300 MΩ | None | Allowed | Unlimited | 45 | 15 | EN 12881-1:2005, Method A. If no complete combustion occurs, use Method B or C. |
| C1 | Grade C1 Fire-Resistant: For limited escape routes and means in potentially explosive gas environments where flammable materials or dust are transported, or combustible materials may be present, without auxiliary safety facilities. | ≤300 MΩ | None | None | 325 | 18 / 30b | 10 / 15b | EN 12881-1:2005, Method B or C |
| C2 | Grade C2 Fire-Resistant: For limited escape routes and means in potentially explosive gas environments where flammable materials or dust are transported, or combustible materials may be present, with auxiliary safety facilities available. | ≤300 MΩ | None | Allowed | Unlimited | 45 | 15 | EN 12881-2 |
a EN 1554:1998: Due to belt structure, Method B1 may be used when Method B2 is not applicable (e.g., steel cord belts).
b Values with cover rubber / values without cover rubber tested separately.
Cover Rubber Grade Requirements: Tensile Strength ≥17 MPa, Elongation at Break ≥350%, Abrasion ≤175 mm³
| Grade | Application | Surface Electrical Resistance MT450-1995 |
Drum Friction Test MT450-1995 | Alcohol Burner Test MT450-1995 | Propane Burner Test (Flame Spread Method) MT914-2008 |
|||
|---|---|---|---|---|---|---|---|---|
| Flame Phenomenon |
Non-Flame Phenomenon |
Max Drum Surface Temp. °C |
6 Specimens Total (S) |
Any Single Specimen Max (S) |
||||
| MT668 -2008 |
Coal Mine Steel Cord Fire-Resistant Conveyor Belt: Designed for underground coal mining operations with strict fire safety requirements in potentially explosive atmospheres. | ≤300 MΩ | None | None | 325 | 3 / 10b (With Cover) |
5 / 15b (Without Cover) |
Test Specimen: Length 1500mm, Width 230mm Ignition Time: 50 minutes Requirements (meet one of the following): a) Min. damage length of any specimen ≤600mm (full width) b) Min. damage length of any specimen ≤50mm (full width), Max average temperature ≤140°C |
| Grade | Application | Surface Electrical Resistance GB/T 3684-2006 ISO 284 |
Drum Friction Test GB/T 7986 |
Alcohol Burner Test GB/T 3685-1996 ISO340 |
Propane Burner Test (Flame Spread Method) Per Appendix C |
|||
|---|---|---|---|---|---|---|---|---|
| Flame Phenomenon |
Non-Flame Phenomenon |
Max Drum Surface Temp. °C |
6 Specimens Total (S) |
Any Single Specimen Max (S) |
||||
| GB 21352 -2008 |
Underground Mining Steel Cord Fire-Resistant Conveyor Belt: Applicable to underground mining operations including coal mines and metal/non-metal mines requiring fire-resistant and anti-static conveyor belt performance. | ≤300 MΩ | None | None | 325 | 3 / 10b (With Cover) |
5 / 15b (Without Cover) |
Test Specimen: Length 1500mm, Width 230mm Ignition Time: 50 minutes Requirements (meet one of the following): a) Min. undamaged length of any specimen ≤600mm (full width) b) Min. undamaged length ≤50mm (full width), Max average temp rise ≤140°C, damage length in mass form ≤1250mm |
b Values with cover rubber / values without cover rubber tested separately.
Cover Rubber Grade Requirements: Tensile Strength ≥15 MPa, Elongation at Break ≥350%, Abrasion ≤200 mm³
Note: EU C1 grade and MT668 grade use alcohol burner combustion test for comparison.
Propane Burner Test Methods (GB 21352-2008)
For belt width <1200mm: Full belt width
For belt width <1200mm: Full belt width
Key Standards Comparison Summary
Fire Resistance
All standards require no flame combustion phenomenon during drum friction tests, ensuring immediate self-extinguishing capability in fire scenarios.
Anti-Static Properties
Universal requirement of surface electrical resistance ≤300 MΩ prevents static electricity accumulation and potential ignition in explosive atmospheres.
Temperature Control
Maximum drum surface temperature limit of 325°C ensures belt safety during friction-induced heat generation in emergency situations.
Triple Certification
Our belts meet EN 14973, MT668-2008, and GB 21352-2008 requirements, providing comprehensive safety assurance for global mining operations.
Need fire-resistant conveyor belts certified to your specific requirements?

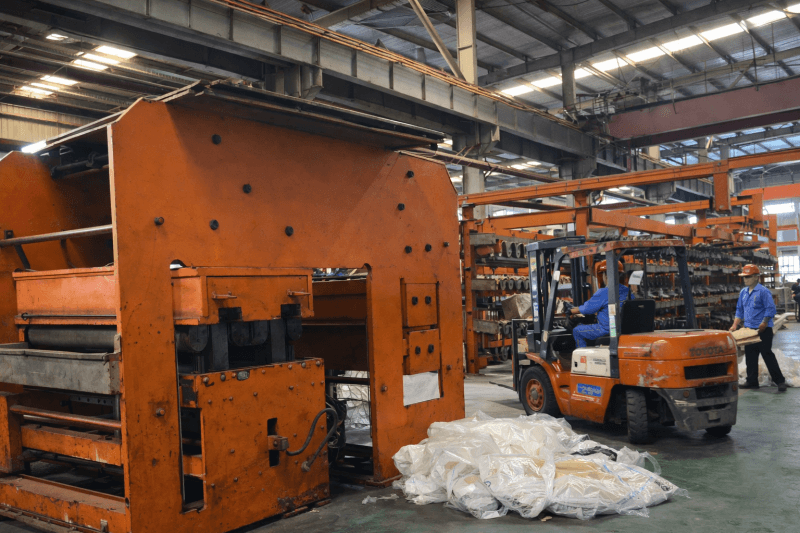

Request Certification DetailsAutomated Manufacturing Process

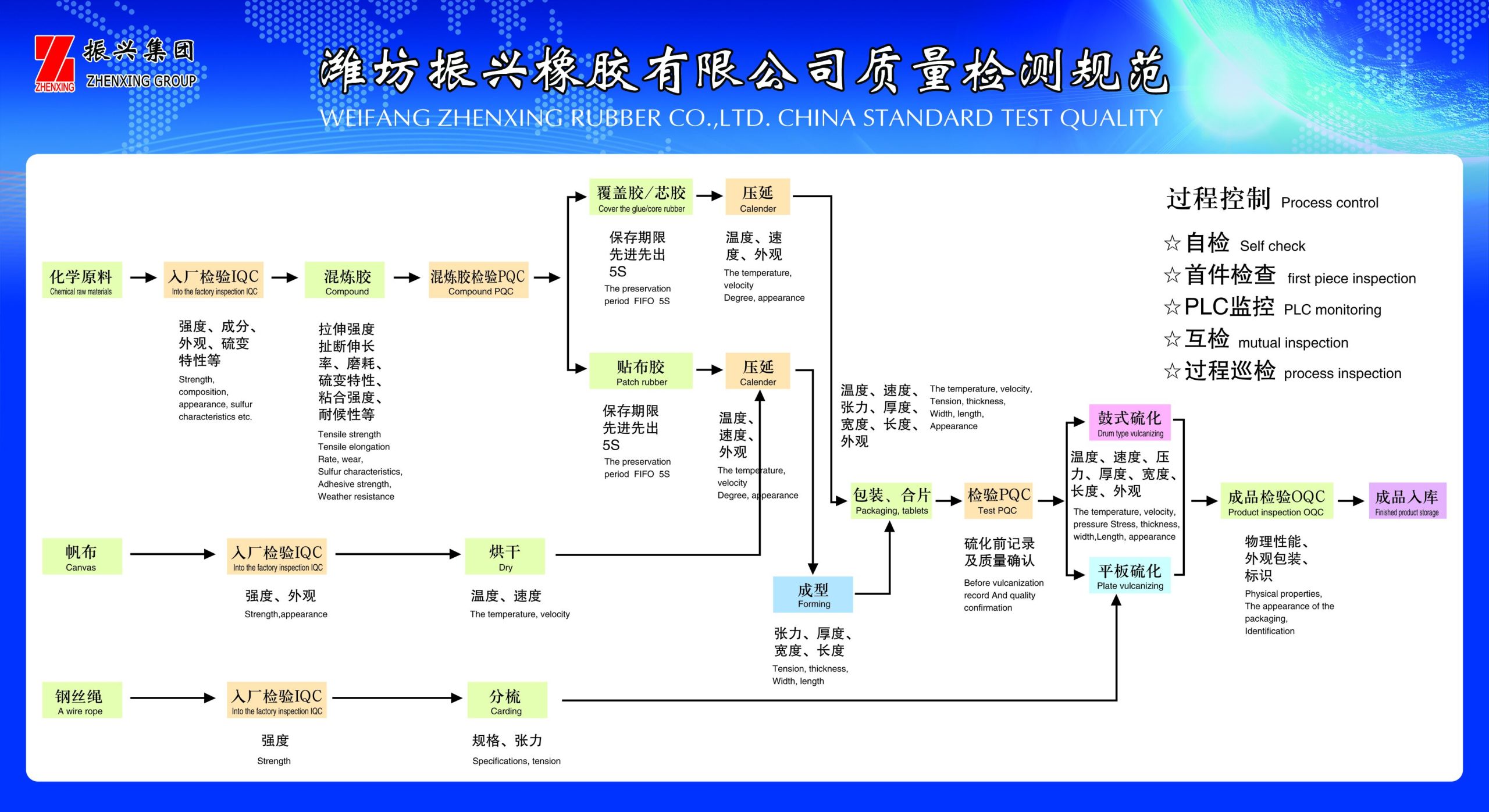

State-of-the-art 10-step production line with full automation control systems ensuring consistent quality and superior bonding strength in every meter
Material Inspection

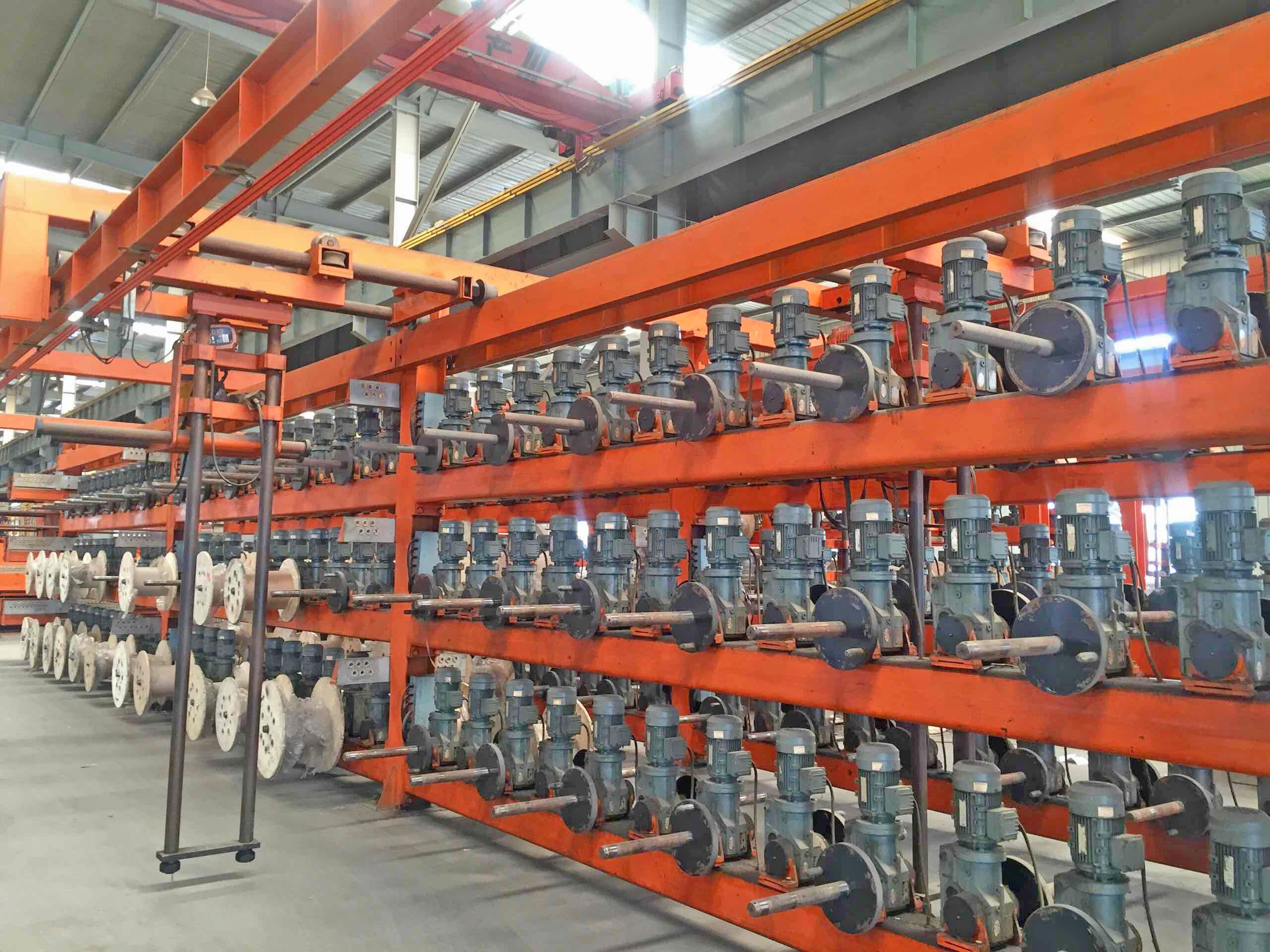

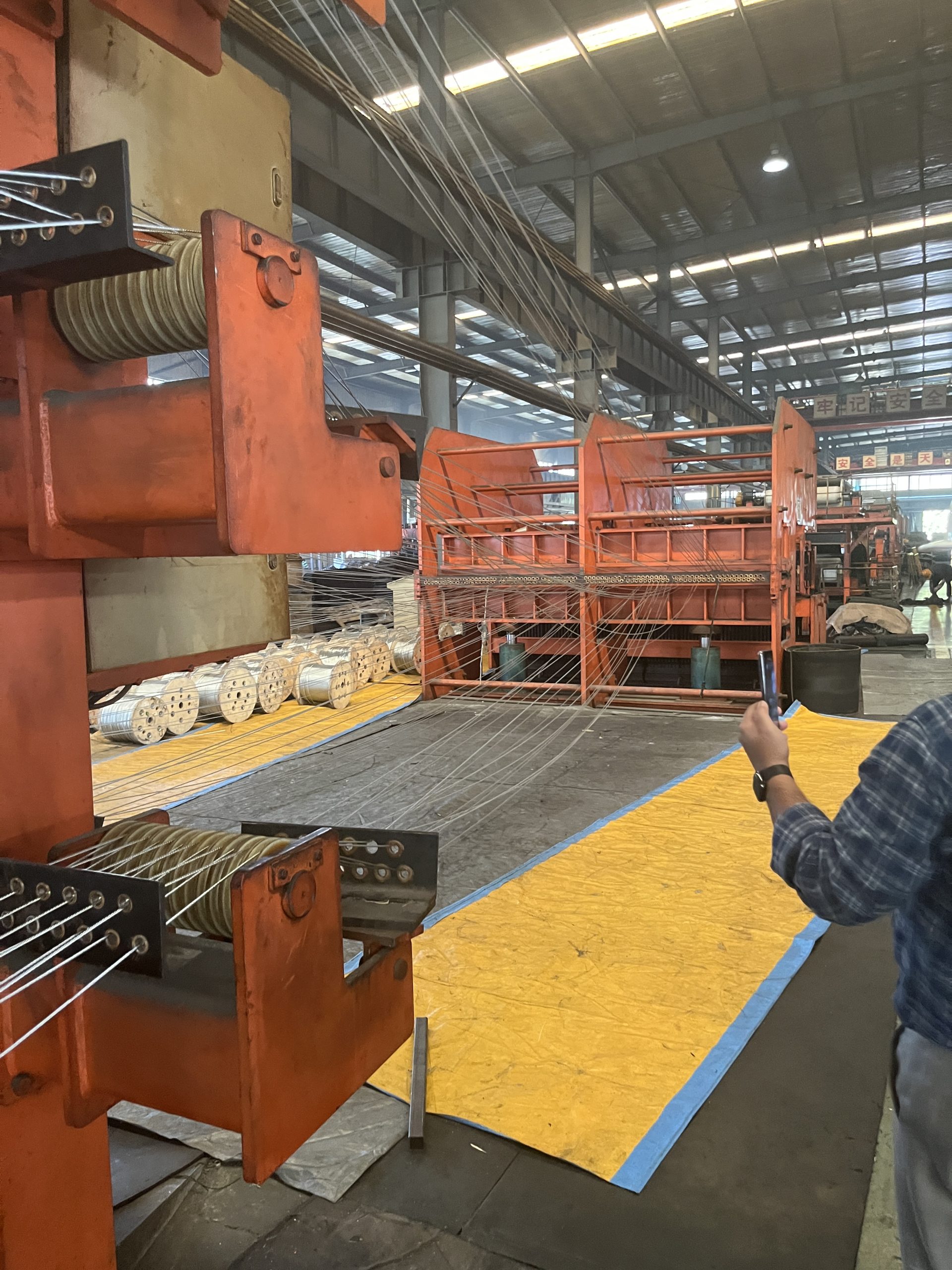

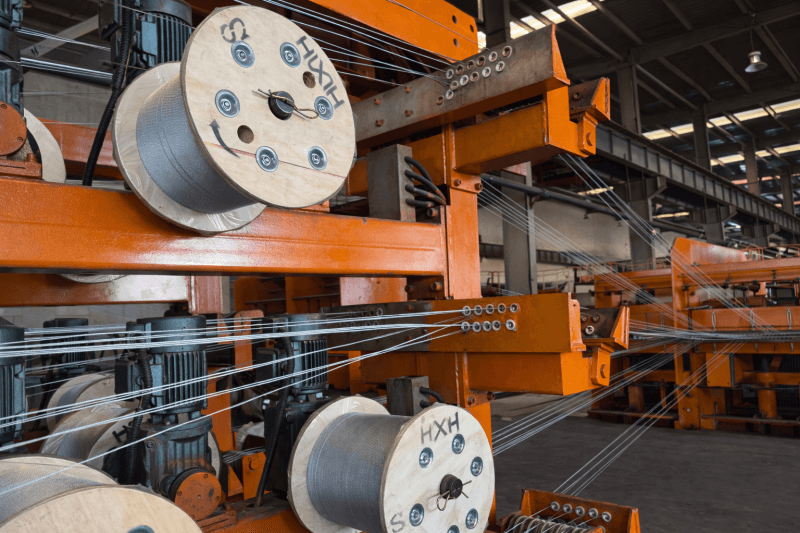

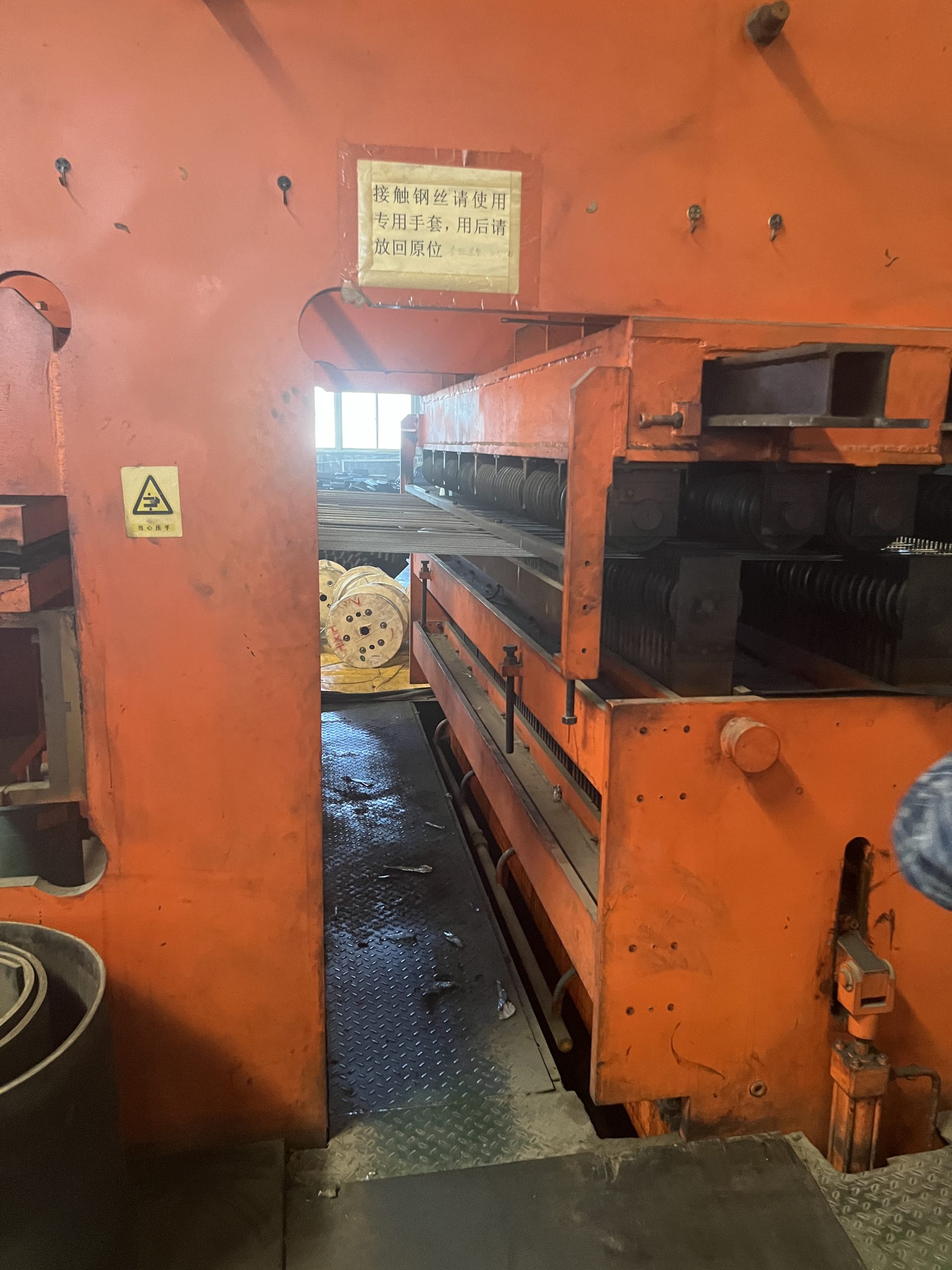

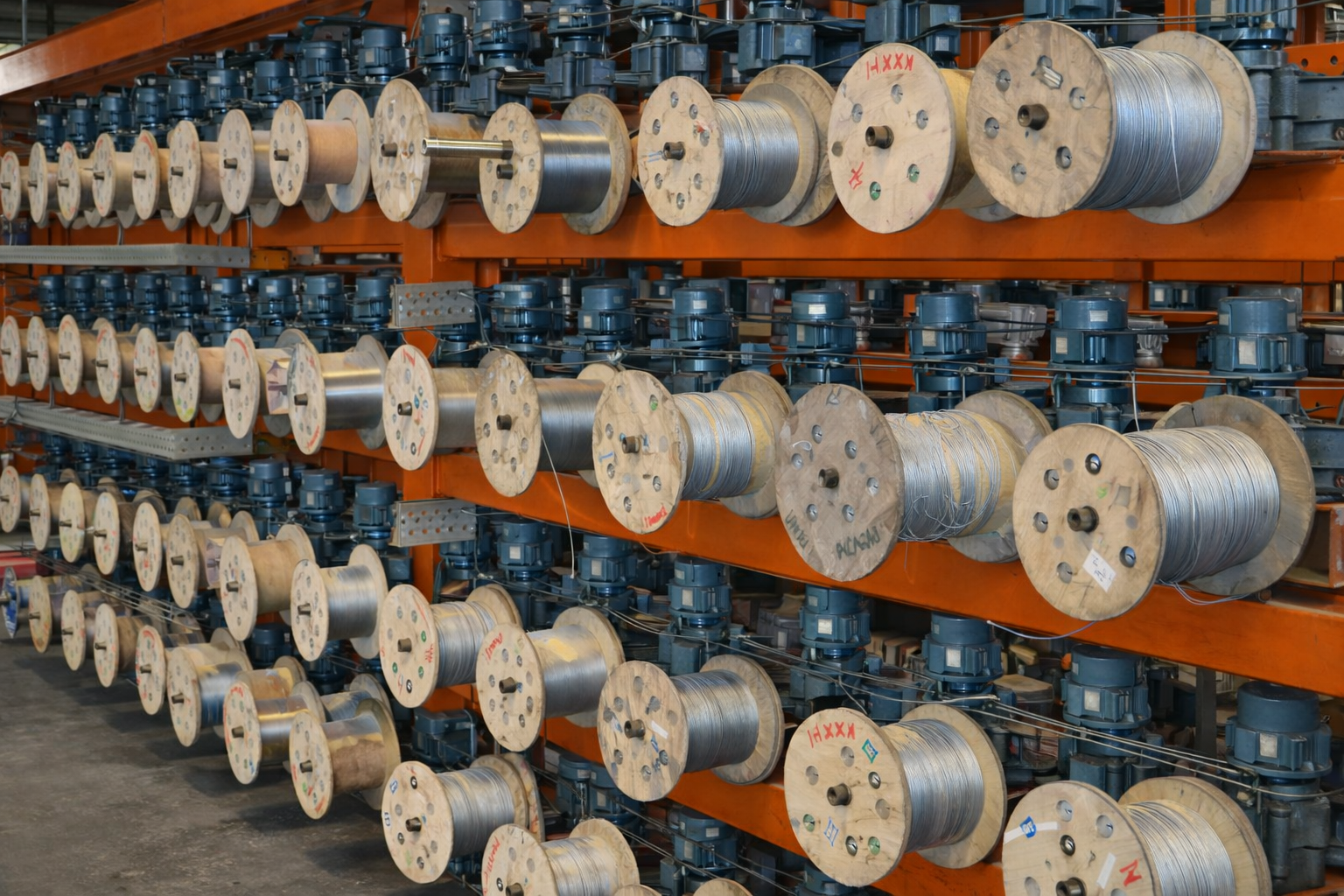

Wire Unwinding

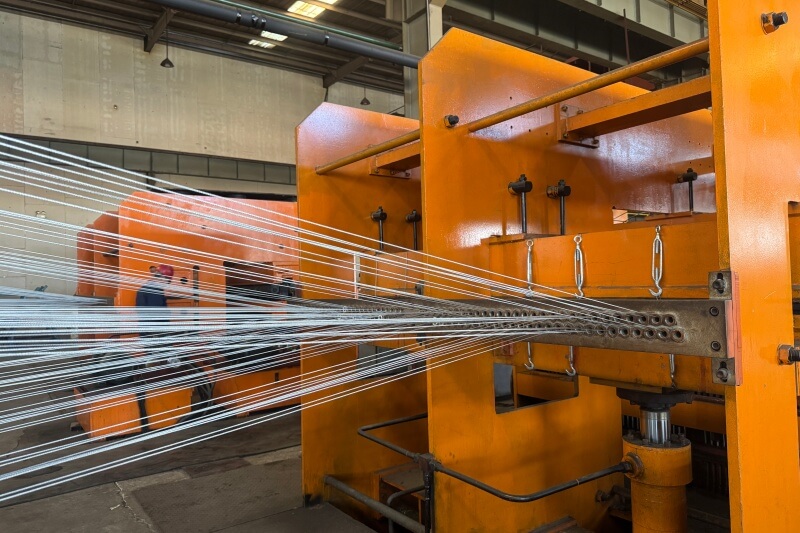

Cord Separation
Adhesive Coating

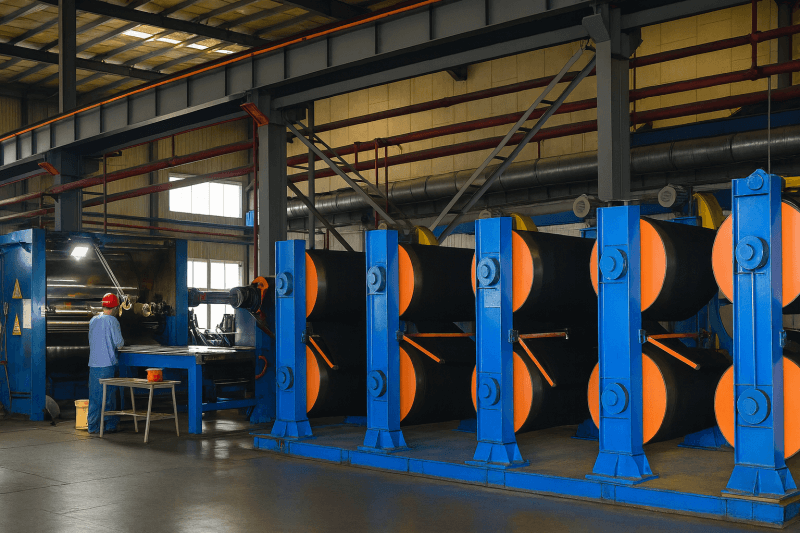

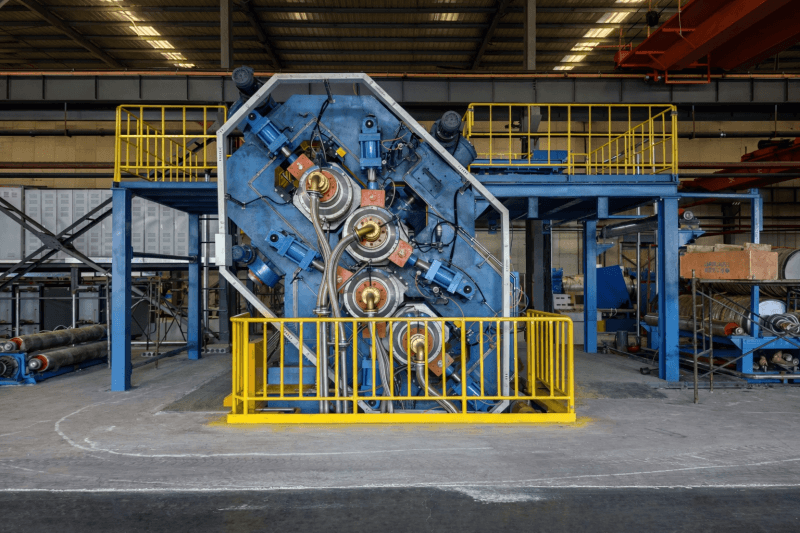

Calendering
Layer Assembly

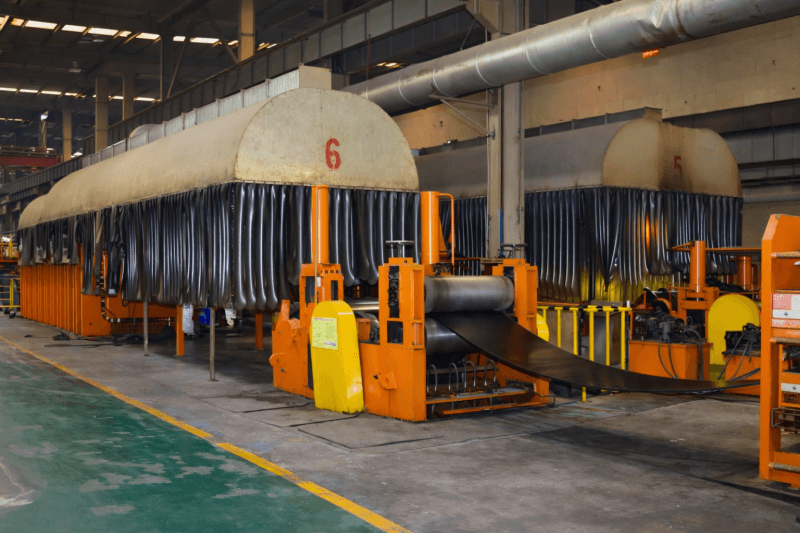

Vulcanization
Quality Testing
Final Inspection
Packaging & Delivery
Interested in seeing our production facility in action?

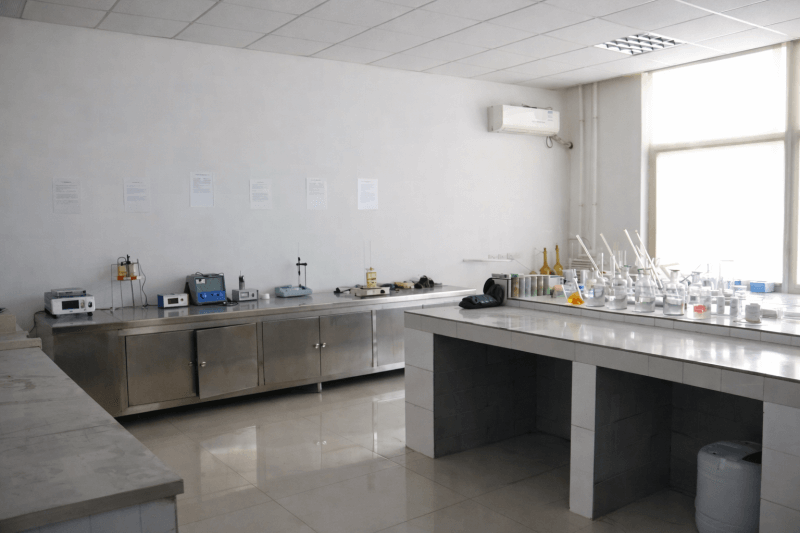

Schedule Factory Tour100% Factory Inspection & Testing Center

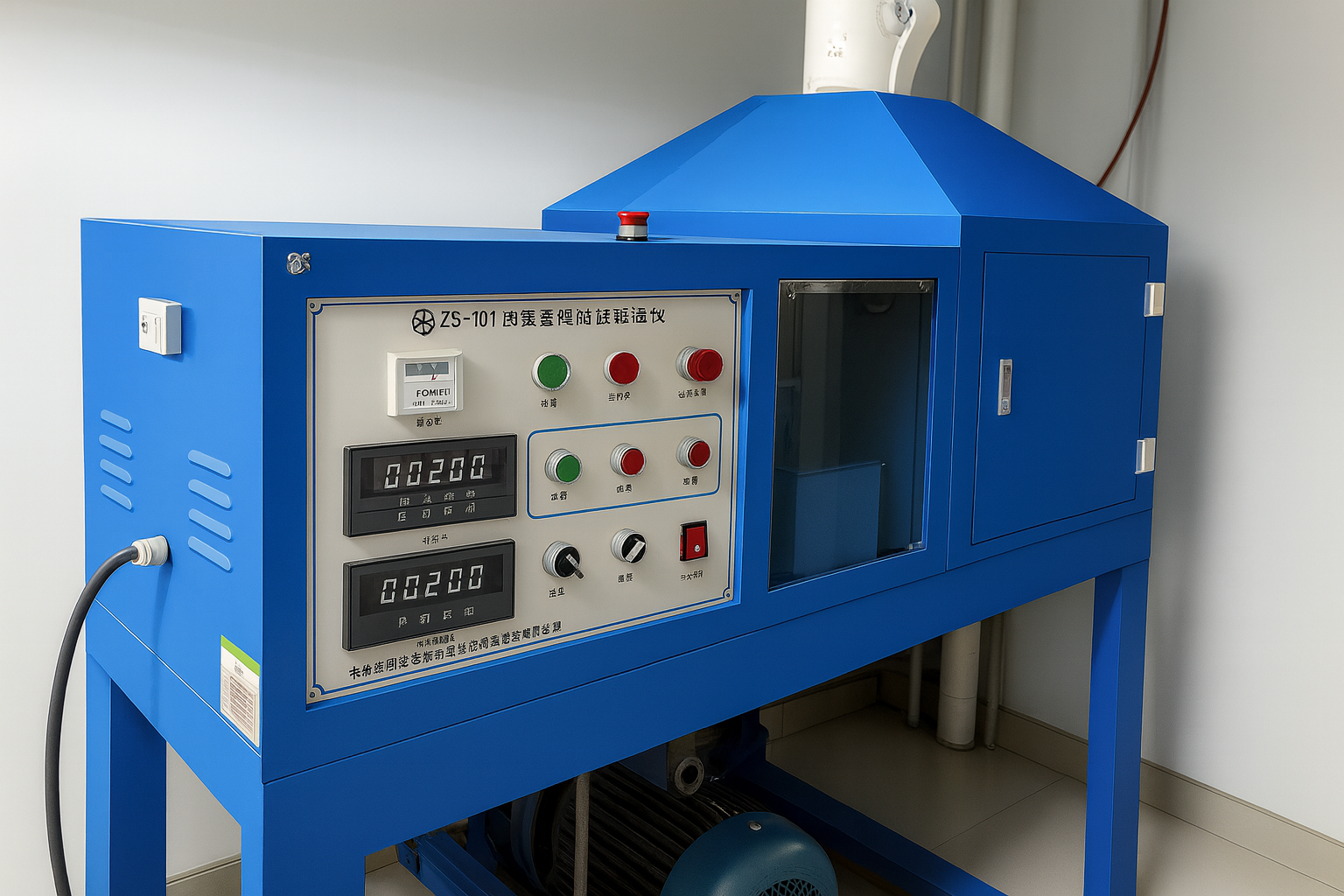

Every single belt undergoes rigorous testing before delivery through our comprehensive quality control system
Dynamic Fatigue Testing Machine

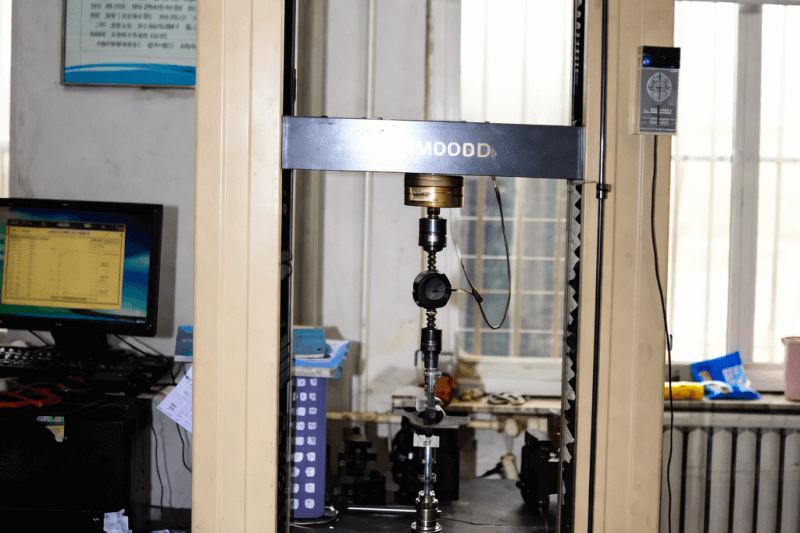

Ozone Aging Test Chamber

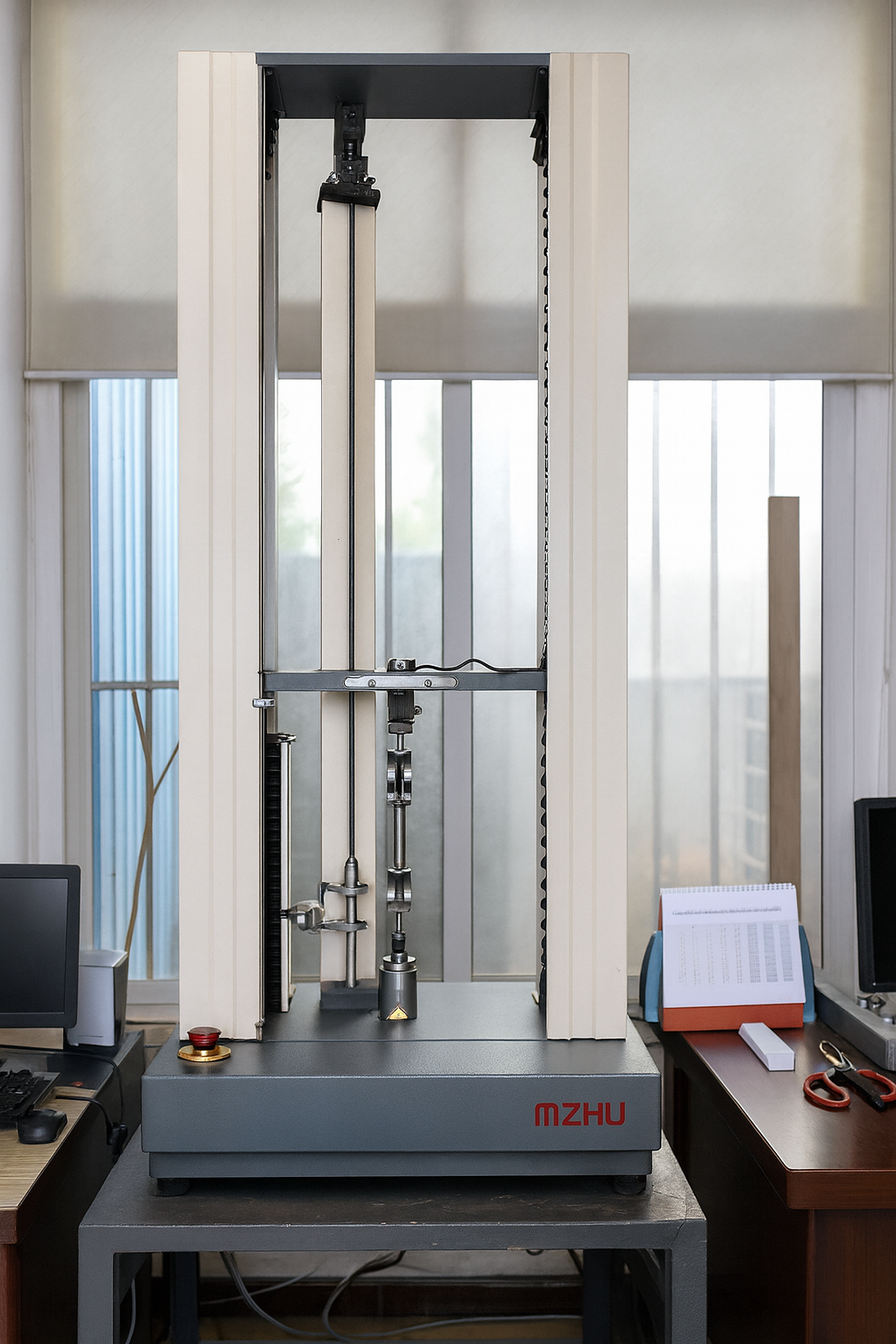

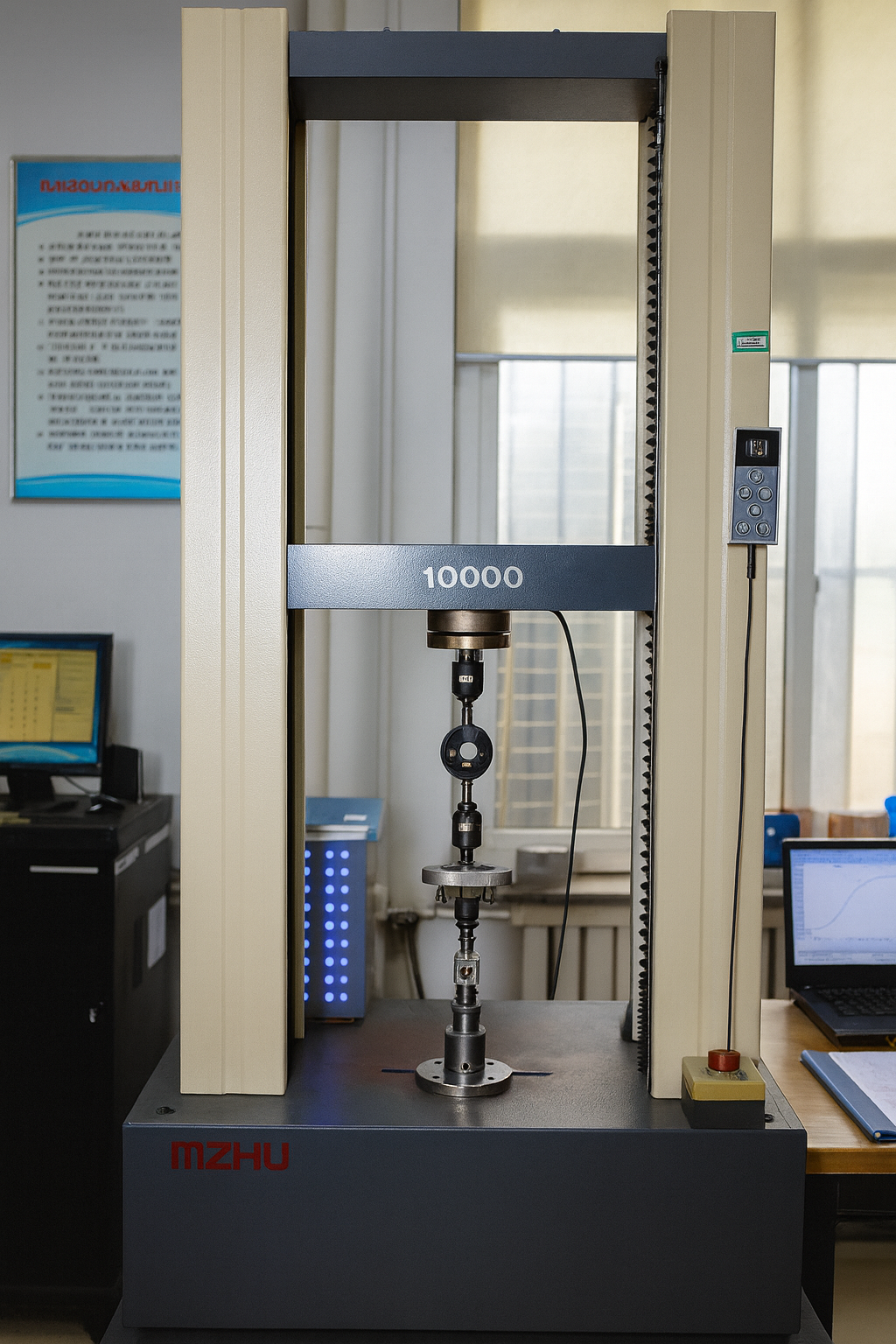

Tensile Testing Machine (10t/30t)

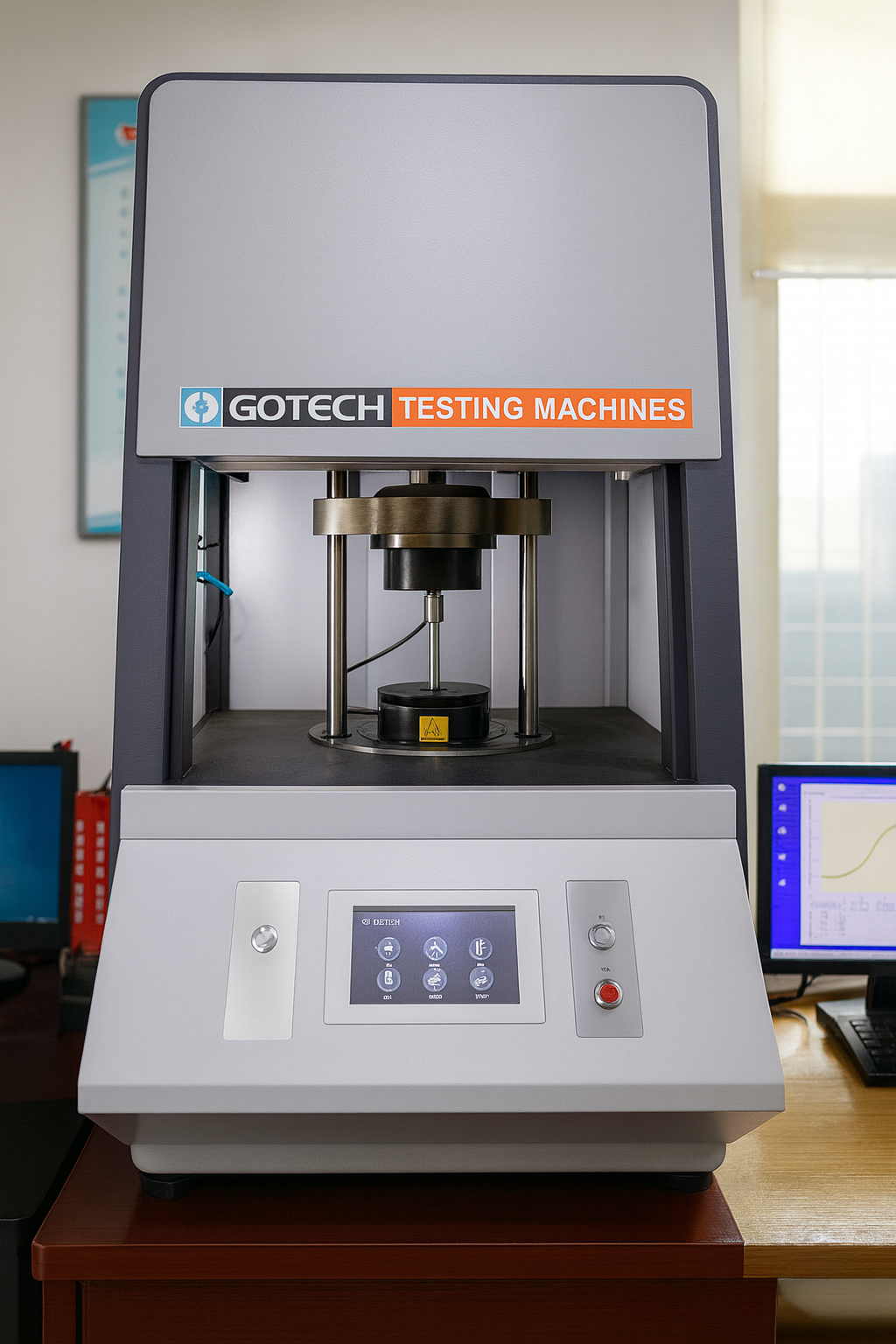

Rotorless Rheometer
X-Ray Inspection System
Adhesion Peel Tester
Three Core Competitive Advantages
Discover the technical superiority that positions our steel cord belts as the industry-leading choice for mission-critical applications
High Adhesion Strength
- Eliminates layer separation during heavy load operations
- Maintains structural integrity through temperature fluctuations
- Reduces sudden failure risks and improves workplace safety
- Lowers lifecycle costs by preventing premature replacement
Impact & Fatigue Resistance
- Handles material drops from heights without structural damage
- Operates reliably in 24/7 continuous production environments
- Resists crack propagation from repeated stress cycles
- Performs consistently under variable load conditions
Extended Life & Low Maintenance
- Reduces replacement frequency by years, not months
- Minimizes production downtime for belt maintenance
- Cuts spare parts inventory and storage costs
- Delivers superior ROI through extended operational periods
See how our advantages translate to cost savings in your operation
Calculate Your SavingsMulti-Industry Application Solutions
Tailored steel cord belt specifications for every industrial environment

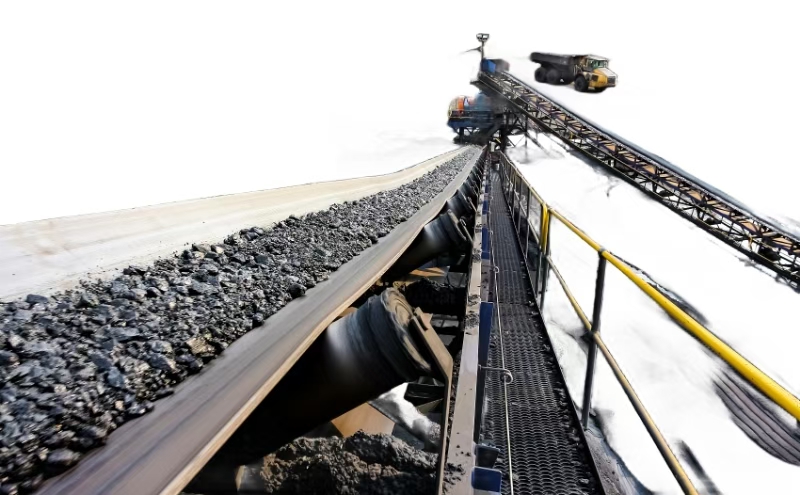

Coal Mining Operations

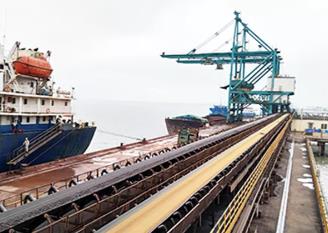

Port & Bulk Handling
Cement Production
Steel Manufacturing
Power Generation

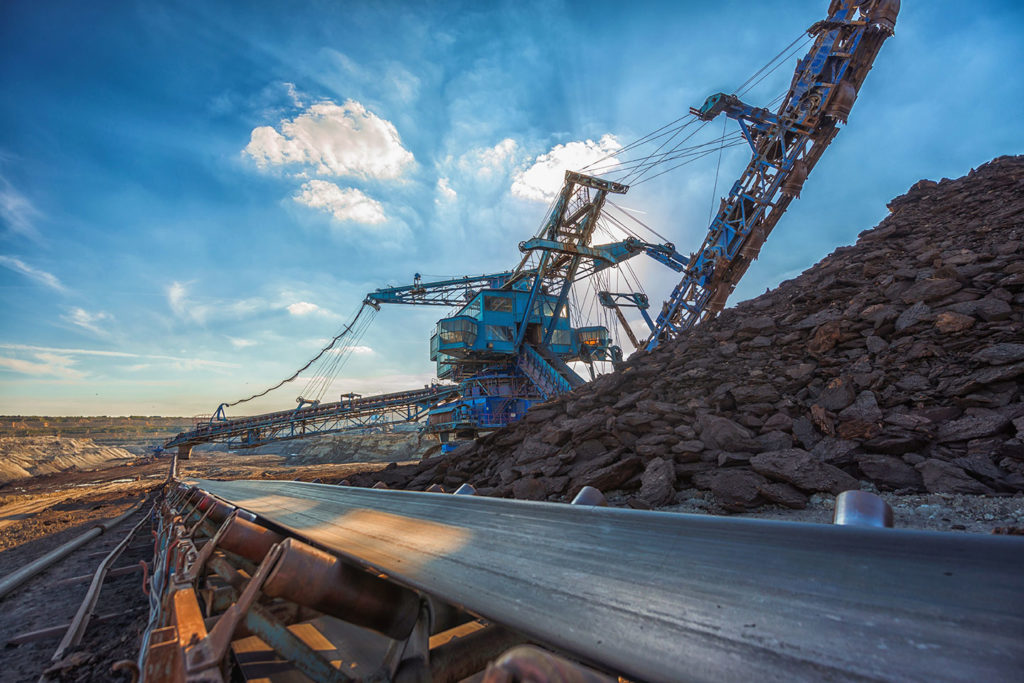

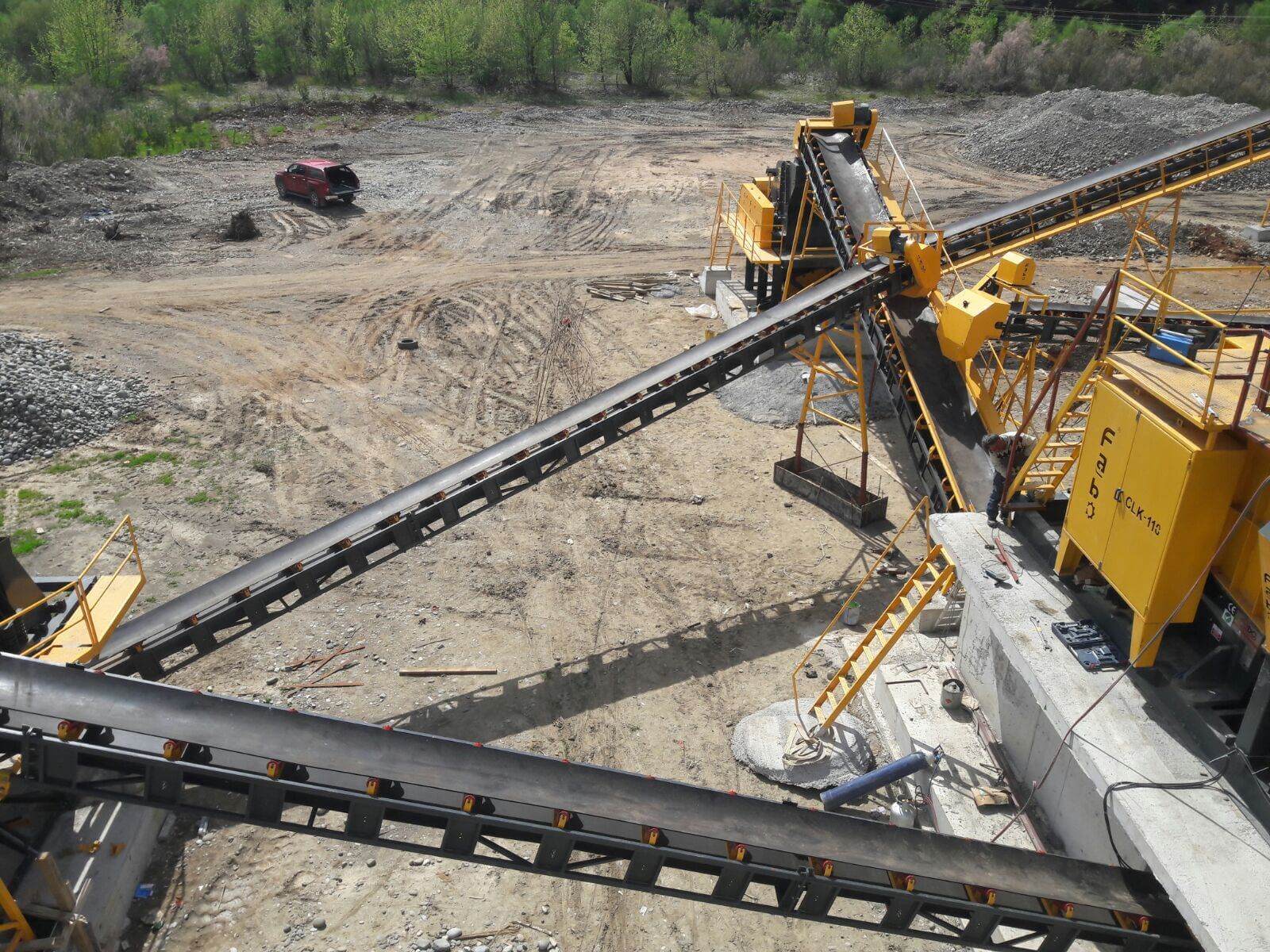

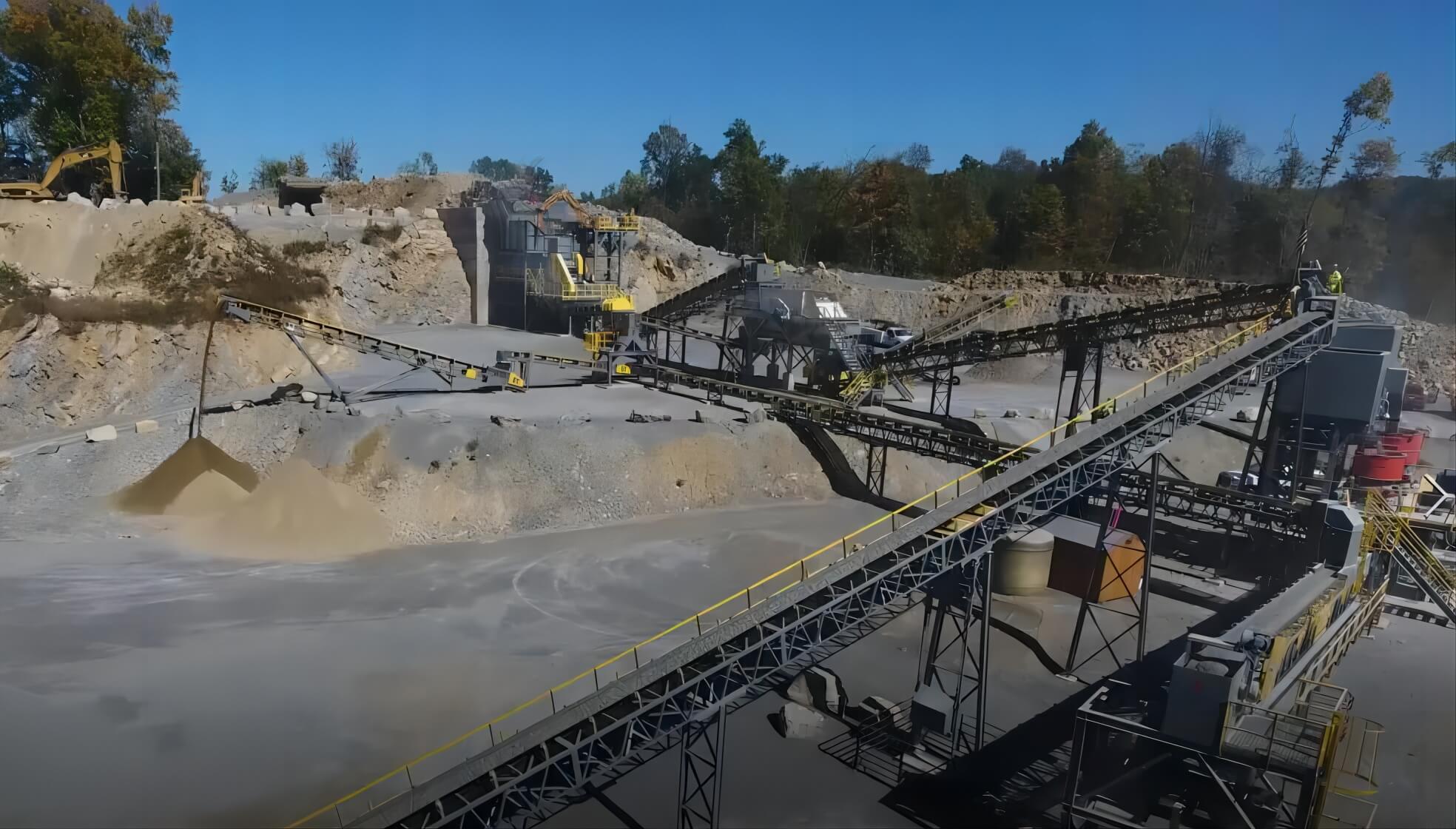

Mining & Quarrying

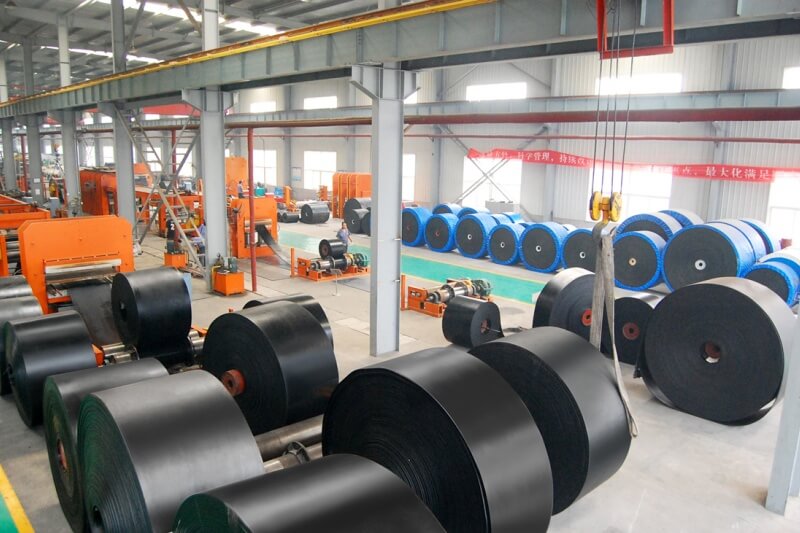

Production Excellence in Action
Experience our advanced manufacturing capabilities through detailed video tours
Automated Production Line Tour
Walk through our state-of-the-art manufacturing facility featuring fully automated steel cord processing, rubber coating application, and precision layering systems.
Vulcanization Process Deep Dive
Discover the critical vulcanization stage where heat and pressure create molecular bonds between rubber and steel components.
Quality Testing Laboratory
Explore our comprehensive testing center where every belt undergoes rigorous quality verification including X-ray inspection.
From Raw Material to Finished Product
Follow the complete manufacturing journey from steel wire rope inspection through final packaging.
See How We Make It Stronger
Transparency in manufacturing builds trust in performance
Want to schedule a live virtual factory tour?
Schedule Virtual TourFrequently Asked Questions
Get instant answers to common questions about our steel cord conveyor belts
Selecting the optimal belt grade depends on several key factors including conveying distance, material characteristics, belt speed, and environmental conditions. Our engineering team analyzes your specific requirements such as tonnage capacity, conveyor inclination, operating temperature range, and material abrasiveness. For most mining applications, ST2000-ST3000 grades provide ideal strength, while lighter-duty operations like cement plants perform well with ST1250-ST1600 grades. We provide detailed technical consultations to match your exact operational parameters with the most cost-effective belt specification.
Our advanced production facilities can manufacture steel cord belts up to 3,000 meters in continuous length, eliminating the need for multiple splices on long conveyor systems. For exceptionally long installations exceeding 3km, we design optimized splice locations to minimize joint points while maintaining system integrity. Transportation logistics vary by destination, but we utilize specialized shipping methods including custom steel core spools and protective wrapping to ensure safe delivery worldwide.
Absolutely. Every belt shipment includes comprehensive documentation detailing all quality control test results performed during manufacturing. Standard test certificates cover tensile strength verification, adhesion force measurements, elongation characteristics, cover rubber thickness, steel cord diameter and spacing, and vulcanization quality indicators. Additional certifications available include ISO 9001 quality management compliance, international safety standard conformity (MSHA, CE), material composition analysis, and third-party laboratory verification reports when requested.
Standard production lead time ranges from 25-35 days depending on belt specifications, order quantity, and current production schedule. Custom specifications or special rubber compounds may require additional 7-10 days for formulation and testing. Rush orders can often be accommodated with expedited production scheduling when urgent replacement needs arise. Delivery timeline varies by destination, typically 15-30 days for ocean freight to major ports worldwide, or 7-15 days via air freight for critical urgent shipments.
Yes, we offer comprehensive OEM and private label manufacturing services for distributors and large-scale industrial users. Our capabilities include custom logo embossing on belt surfaces, branded packaging with your company information, and tailored specifications to match your unique operational requirements. We can modify cover rubber compounds for specific resistance properties, adjust steel cord configurations for particular strength requirements, and customize dimensions beyond standard catalog offerings. Minimum order quantities for OEM production typically start at 1,000 meters to ensure cost-effectiveness.
Can't Find Your Answer?
Contact Technical SupportStill have questions about our products or services?
Ask Our ExpertsGlobal Customer Success Stories
Discover why industry leaders worldwide trust our steel cord belts for their most critical conveying applications

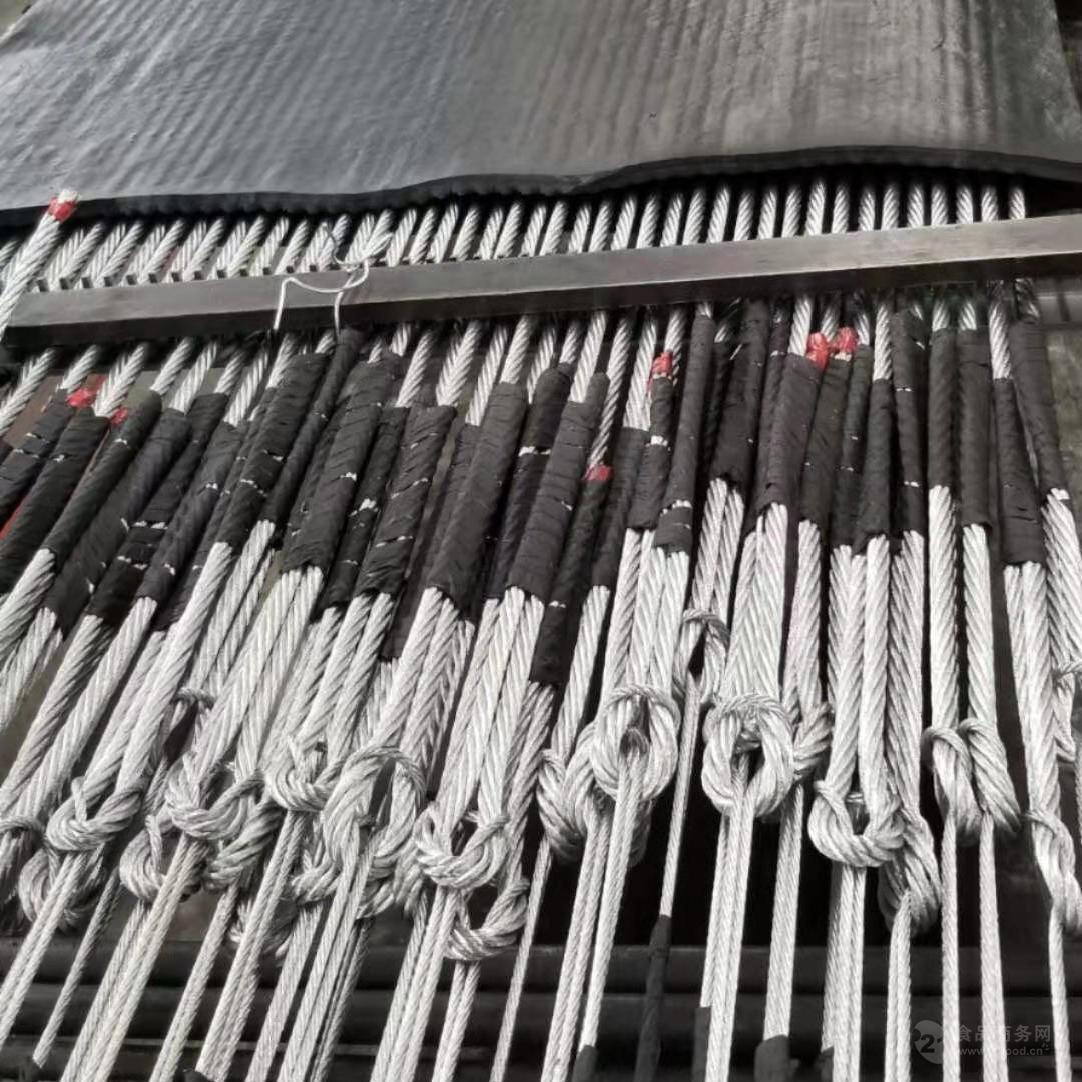

After switching to these steel cord belts, our downtime decreased by 40% and maintenance costs dropped significantly. The superior splice strength eliminated our biggest failure point, and we've achieved three years of continuous operation without belt replacement.
Shenhua Mining Group
Inner Mongolia, China
Using for 3+ years
Coal MiningThe exceptional impact resistance handles our heavy loading operations without damage. We've processed over 50 million tons of iron ore with minimal wear, proving these belts deliver outstanding value and reliability in demanding port environments.
Rotterdam Port Authority
Rotterdam, Netherlands
Using for 5+ years
Port OperationsOutstanding technical support and product quality. The heat-resistant formulation performs flawlessly in our high-temperature clinker transport application, maintaining flexibility and strength where previous belts failed within months.
LafargeHolcim Cement
Mumbai, India
Using for 4+ years
Cement ProductionThe investment in these belts paid off within 18 months through reduced replacement frequency and lower maintenance requirements. Excellent tensile strength supports our long-distance ore transport with minimal elongation and tracking issues.
BHP Billiton Iron Ore
Western Australia
Using for 6+ years
Iron Ore MiningImpressed by the comprehensive testing documentation and consistent quality across multiple orders. Every belt meets specified parameters, and the technical team provides excellent application engineering support for our complex conveyor systems.
Tata Steel Limited
Jamshedpur, India
Using for 7+ years
Steel ManufacturingReliable performance in extreme conditions including temperature fluctuations and abrasive materials. The anti-corrosion treatment on steel cords proves effective in our coastal location, preventing premature failure from salt air exposure.
Vale Mining Company
Pará, Brazil
Using for 5+ years
Bauxite MiningCertifications & Standards Compliance
Our commitment to quality is verified by international certifications and rigorous testing protocols that meet global conveyor safety standards
ISO 9001:2015
TÜV Rheinland
CE Marking
MSHA Approved
Get Your Free Quote
Connect with our engineering team for personalized belt specifications and competitive pricing
